10085081 KK 508 by Molex

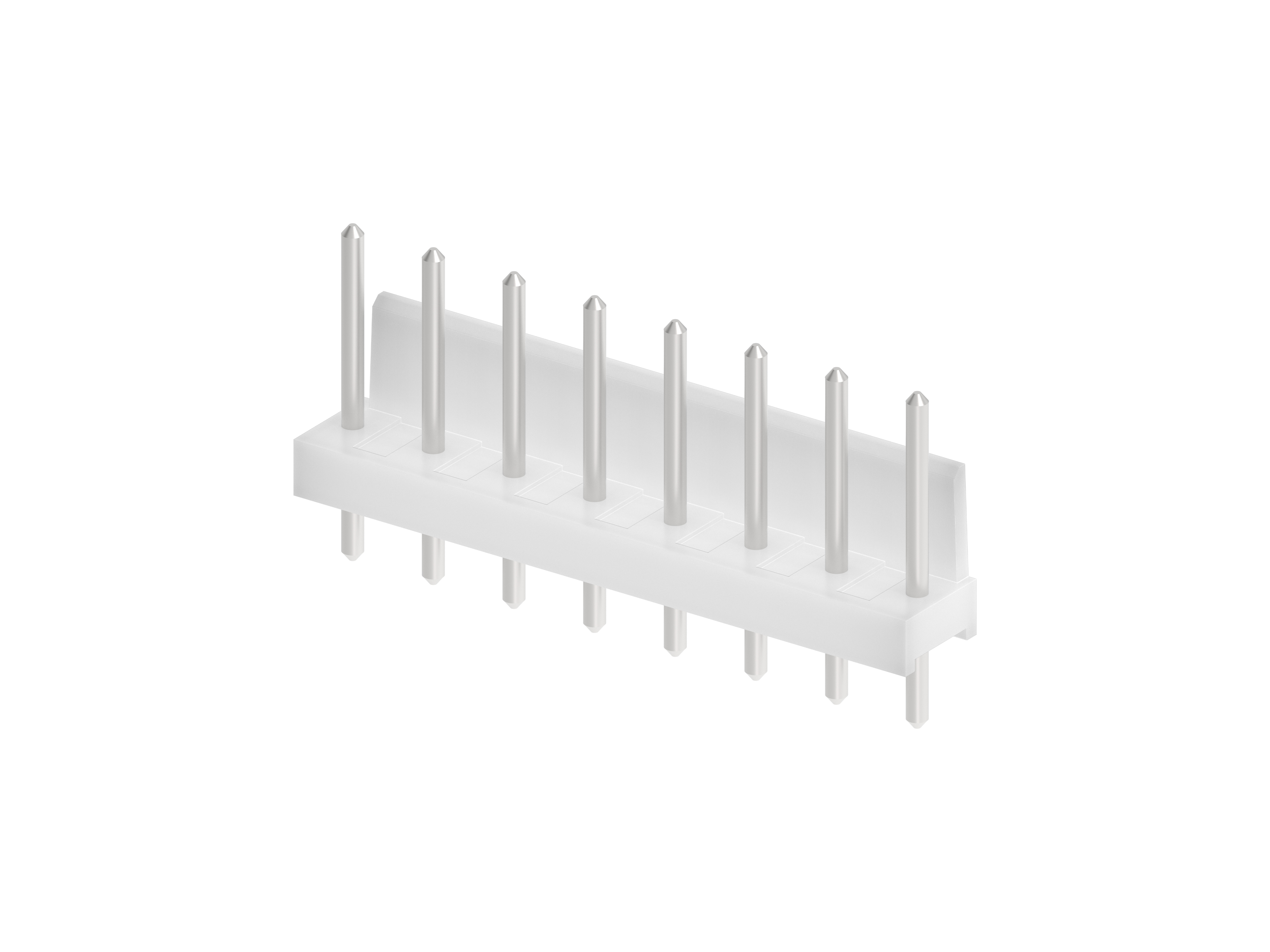

KK Header, Vertical, with Polarizing Backwall, 8 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-08-5081,
0010085081, 2599M08A |
Where to Buy
Prices starting from US$0.49
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.29
|
4,264
in stock
|
Buy Now |
|
Farnell
from US$1.07
|
3,924
in stock
|
Buy Now |
|
RS
from US$0.92
|
311
in stock
|
Buy Now |
|
element14
from US$0.75
|
124
in stock
|
Buy Now |
|
Newark Electronics
from US$0.64
|
0
in stock
|
Buy Now |
|
TME
from US$0.68
|
0
in stock
|
Buy Now |
|
Compona
from US$0.61
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.51
|
0
in stock
|
Buy Now |
|
EME
from US$0.71
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 2.175/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.45mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 10085081 1 St. | Conrad |
| CONN, HEADER, 8POS, 1ROW, 5.08MM | Farnell |
| Molex 10-08-5081 Pin Header | RS |
| CONNECTOR, HEADER, 8POS, 1ROW, 5.08MM | element14 |
| Kk200 Pol Wafer Assembly 2599M08A |Molex 10-08-5081 | Newark Electronics |
| Connector: wire-board | TME |
| MOLEX 10-08-5081 Plug Square 8p THT | Compona |
| KK200 POL WAFER ASSEMBLY | Heilind Americas |
