10101111 KK 508 by Molex

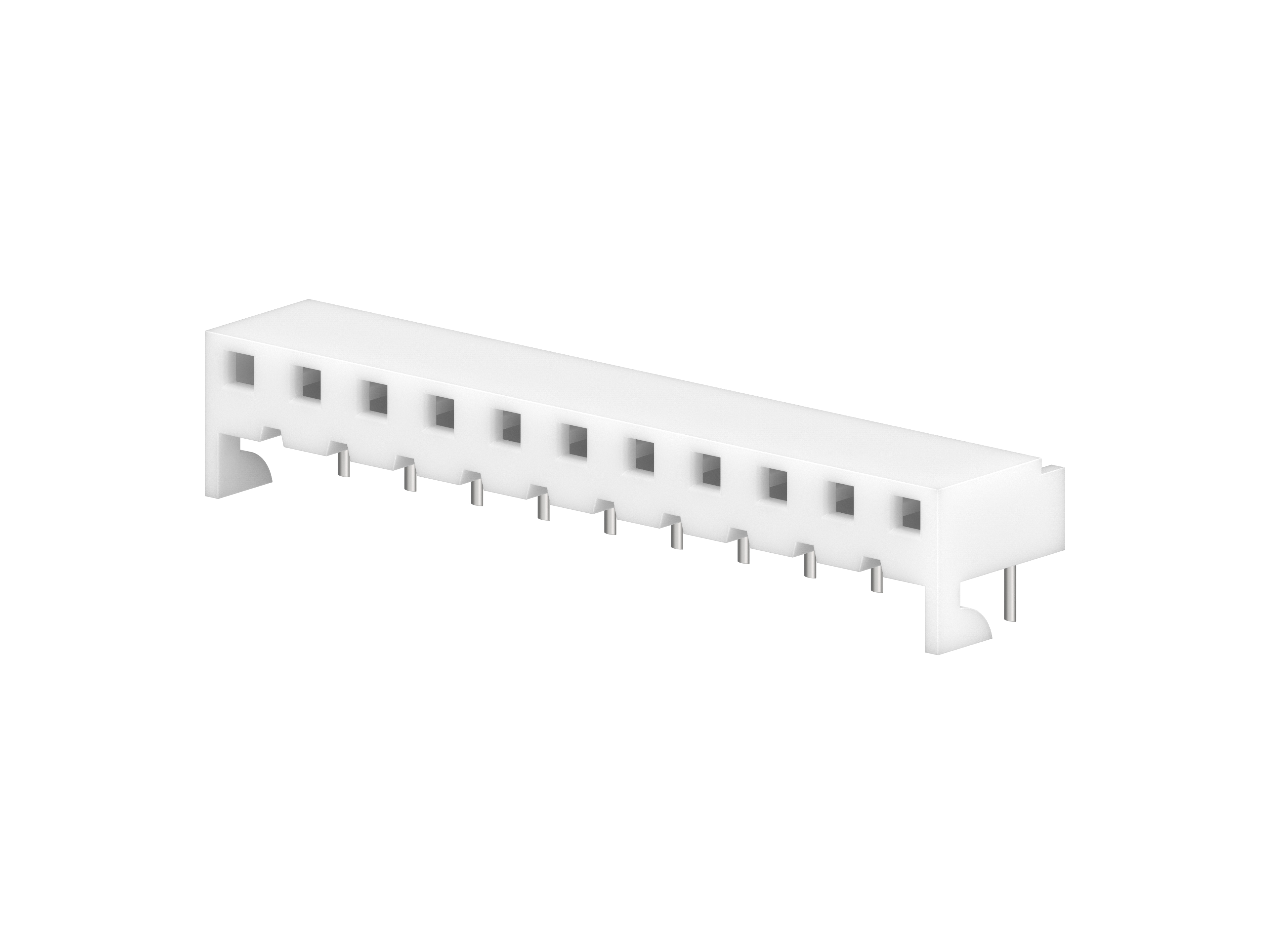

KK PC Board Connector, Right-Angle Mount Style A, 1.00µm Tin (Sn), 11 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-10-1111,
0010101111, 300211A |
Where to Buy
Prices starting from US$0.65
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Board-to-Board, Power |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 11 |
| Circuits Maximum | 11 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 3.442/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, plug,11 Contacts, skt,0.2 Pitch, pc Tail Terminal |Molex 10-10-1111 | Newark Electronics |
| 5.08MM KK PCB CONN RA VRA 11CKT | RS Americas |
| HDR 5.08MM 11POS PCB RA TH | TTI Americas |
| 5.08MM KK PCB CONN RA VRA 11C T | Heilind Americas |
