10181032 Standard .093" by Molex

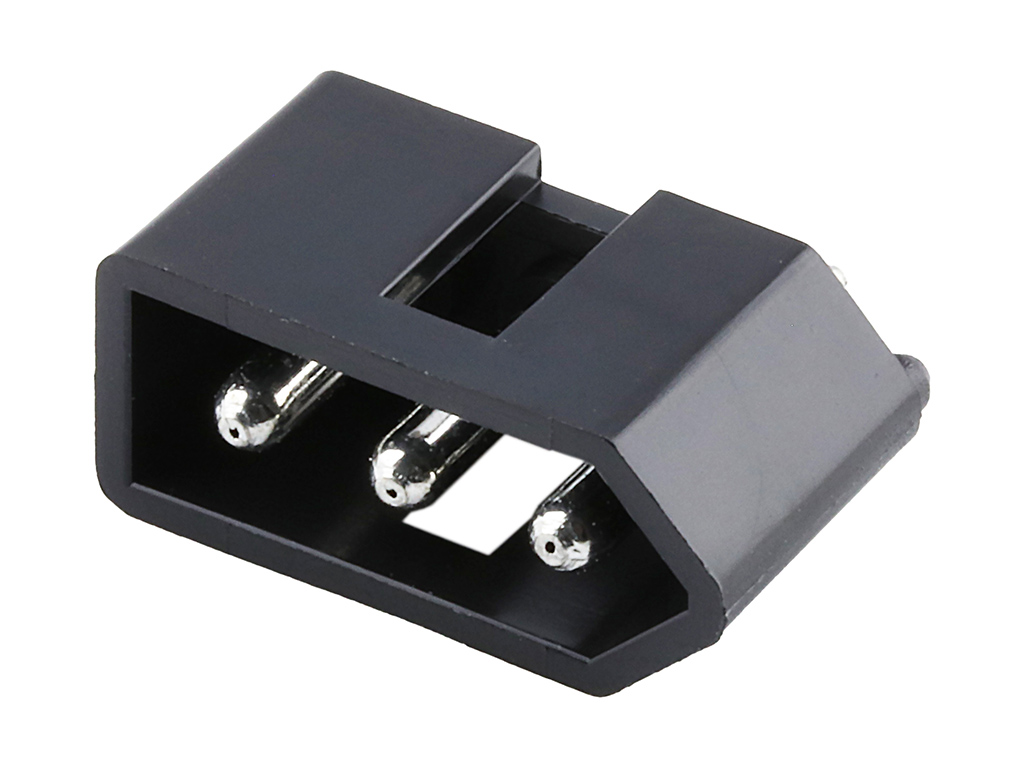

2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 3 Circuits, 3 Male Terminals
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-18-1032,
0010181032, A-3099-P31 |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.22
|
7,093
in stock
|
Buy Now |
|
Heilind Americas
from US$0.64
|
4,121
in stock
|
Buy Now |
|
Rutronik
from US$1.10
|
825
in stock
|
Buy Now |
|
Newark Electronics
from US$1.26
|
804
in stock
|
Buy Now |
|
element14
from US$1.17
|
194
in stock
|
Buy Now |
|
RS
from US$2.22
|
115
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
2,092
in stock
|
Buy Now |
|
|
RS Americas
from US$1.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.95
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.56
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.04
|
0
in stock
|
Buy Now |
|
EME
from US$1.35
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.322/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| STDR .093 HDR 03P 3 MALE | TTI Americas |
| 093 SHRD PIN SKT HDRS 3CKT | Heilind Americas |
| 03P SHROUDED HEADER | Rutronik |
| Connector, Header, 3Pos, 1Row, 5.03Mm | Newark Electronics |
| CONNECTOR, HEADER, 3POS, 1ROW, 5.03MM | element14 |
| Molex 10181032 PCB Header | RS |
| 093 SHRD PIN SKT HDRS 3CKT | RS Americas |
| .093 PIN & SOCKET HEADER | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10181032?
Additional datasheets, footprints and schematics for 10181032 are listed on our Part Details page. You can also find images and similar parts to 10181032 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10181032 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10181032 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10181032 fall under?
The 10181032 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10181032 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10181032 you can contact the distributor directly for product support, shipping queries etc.
Is the 10181032 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10181032 have stock available?
Authorised distributors including TTI Americas, Heilind Americas, Rutronik, Newark Electronics and element14 have stock available or on a lead time for 10181032.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10181032 often in real-time on the comparison pages.
What if I can't find stock of 10181032?
You can fill out our help required form which you can use to request a quote for 10181032 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
