10181042 Standard .093" by Molex

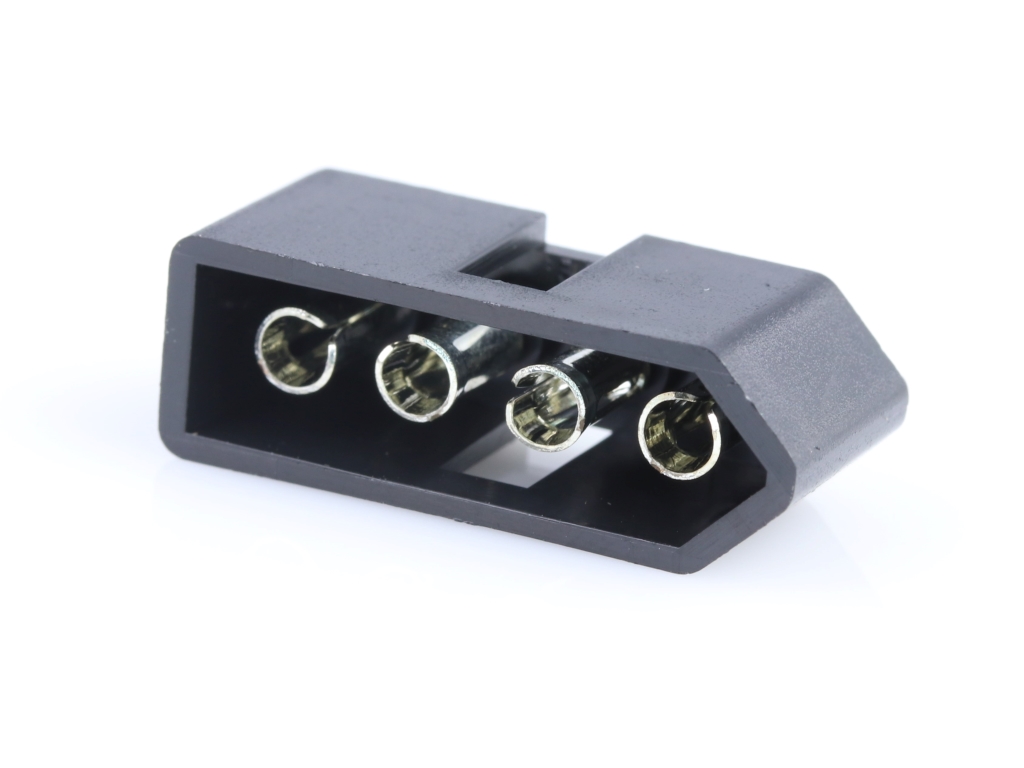

2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 4 Circuits, 4 Female Terminals
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-18-1042,
0010181042, 3099P4A |
Where to Buy
Prices starting from US$0.85
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.14
|
1,122
in stock
|
Buy Now |
|
RS
from US$2.25
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.27
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.85
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.35
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.92
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.11
|
0
in stock
|
Buy Now |
|
Sager
from US$0.98
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.91
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.641/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 1.270µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 093 SHRD PIN SKT HDRS 4C | TTI Americas |
| Molex 10-18-1042 PCB Header | RS |
| Header Connector, pcb Mount, plug,4 Contacts, skt,0.198 Pitch, pc Tail Terminal, guide Slot |Molex 10-18-1042 | Newark Electronics |
| 093 SHRD PIN SKT HDRS 4CKT | RS Americas |
| Molex Einbau-Buchsenleiste (Standard) 10181042 1 St. Bag | Conrad |
| 2.36MM PIN AND SOCKET HEADER | TTI Europe |
| Pin & Socket Connectors 093 SHRD PIN SKT HDRS 4C | Sager |
| 093 SHRD PIN SKT HDRS 4CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10181042?
Additional datasheets, footprints and schematics for 10181042 are listed on our Part Details page. You can also find images and similar parts to 10181042 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10181042 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10181042 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10181042 fall under?
The 10181042 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10181042 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10181042 you can contact the distributor directly for product support, shipping queries etc.
Is the 10181042 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10181042 have stock available?
Authorised distributors including TTI Americas, RS, Newark Electronics, Avnet America and RS Americas have stock available or on a lead time for 10181042.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10181042 often in real-time on the comparison pages.
What if I can't find stock of 10181042?
You can fill out our help required form which you can use to request a quote for 10181042 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
