10181090 Standard .093" by Molex

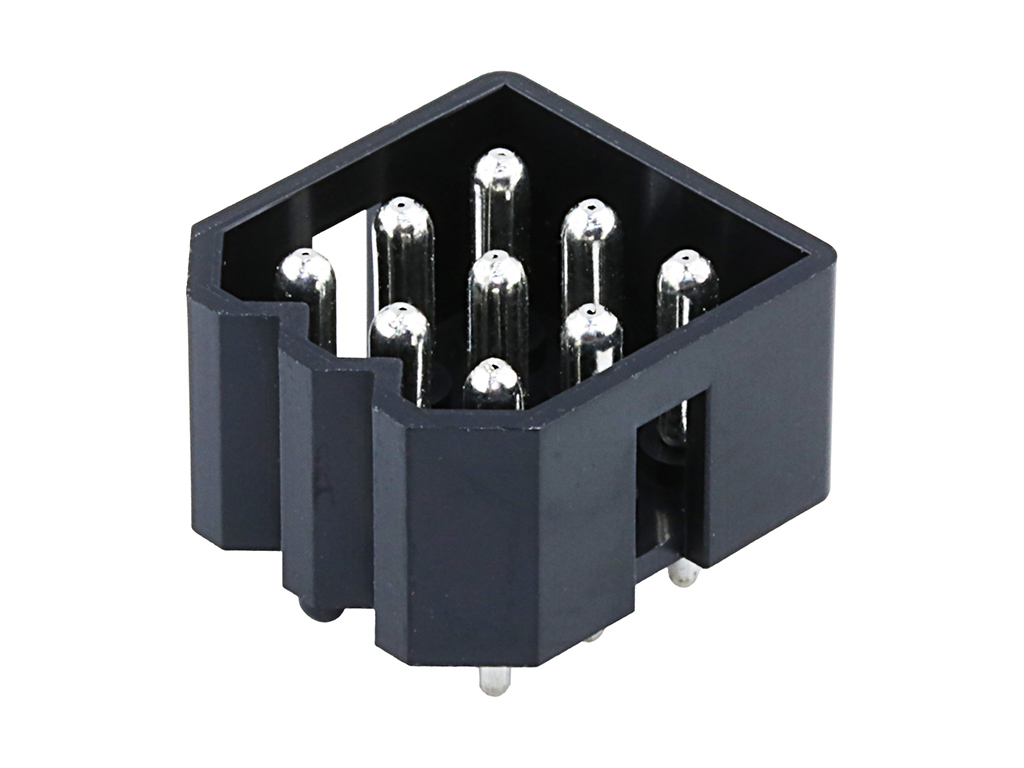

2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 9 Circuits, 9 Male Terminals
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-18-1090,
0010181090, A30990901 |
Where to Buy
Prices starting from US$1.47
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.51
|
11,969
in stock
|
Buy Now |
|
TME
from US$1.81
|
6,625
in stock
|
Buy Now |
|
Newark Electronics
from US$2.53
|
5,344
in stock
|
Buy Now |
|
Farnell
from US$3.38
|
59
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
77
in stock
|
Buy Now |
|
Avnet America
from US$1.49
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.62
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.47
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 4.141/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) 10-18-1090 1 St. Bulk | Conrad |
| Connector: wire-wire/PCB | TME |
| Pin & Socket Connectors 2.36Mm Pin & Socket 9 Ckt |Molex 10-18-1090 | Newark Electronics |
| HEADER, 9POS, 1ROW, 5.03MM, PCB | Farnell |
| 093 SHRD PIN SKT HDRS 9CKT | RS Americas |
| 093 SHRD PIN SKT HDRS 9CKT | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10181090?
Additional datasheets, footprints and schematics for 10181090 are listed on our Part Details page. You can also find images and similar parts to 10181090 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10181090 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10181090 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10181090 fall under?
The 10181090 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10181090 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10181090 you can contact the distributor directly for product support, shipping queries etc.
Is the 10181090 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10181090 have stock available?
Authorised distributors including Conrad, TME, Newark Electronics, Farnell and Lake-View Electronics have stock available or on a lead time for 10181090.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10181090 often in real-time on the comparison pages.
What if I can't find stock of 10181090?
You can fill out our help required form which you can use to request a quote for 10181090 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
