10181091 Standard .093" by Molex

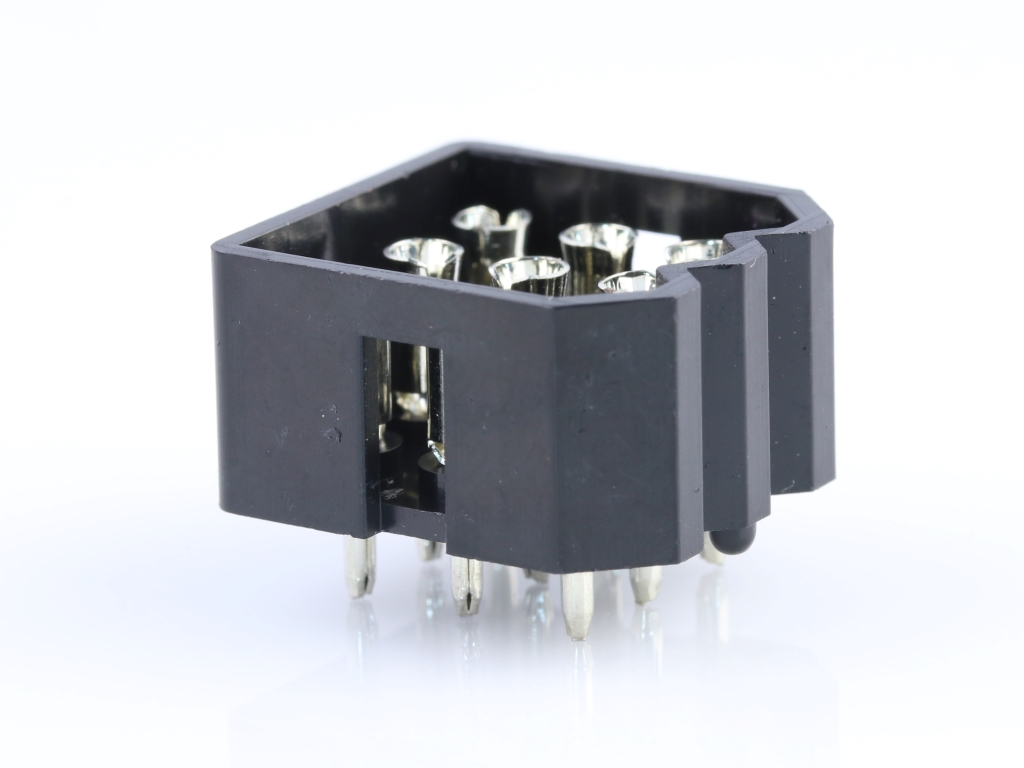

2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 9 Circuits, 9 Female Terminals
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-18-1091,
0010181091, A30990902 |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Mounting Style | Through Hole |
| Net Weight | 4.141/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 1.270µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
