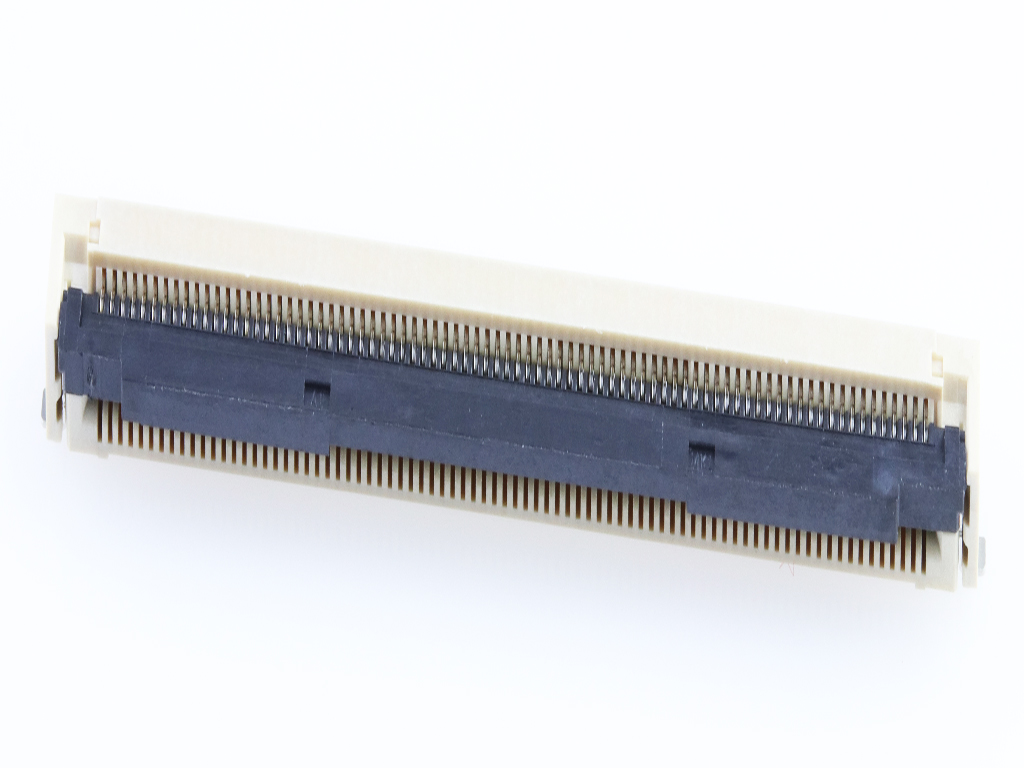

1040608017 Easy-On by Molex
0.50mm Pitch Easy-On FFC/FPC Connector, Surface Mount, ZIF, Easy-On Front Flip, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 80 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 104060-8017 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 80 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 10 |
| Mated Height | 2.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 0.736/g |
| Orientation | Right Angle |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.50Mm Pitch Easy-On Ffc/Fpc Connector, Surface Mount, Zif, Easy-On Front Flip, Double Bottom Contact, 2.50Mm Height, Accepts Ffc/Fpc With Ear-Tabs, 80 Circuits |Molex 104060-8017 | Newark Electronics |
| Connector: FFC/FPC | TME |
| FFC-FPC CONNECTOR | Farnell |
| Conn FFC/FPC Connector SKT 80 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1040608017?
Additional datasheets, footprints and schematics for 1040608017 are listed on our Part Details page. You can also find images and similar parts to 1040608017 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1040608017 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1040608017 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1040608017 fall under?
The 1040608017 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1040608017 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1040608017 you can contact the distributor directly for product support, shipping queries etc.
Is the 1040608017 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1040608017 have stock available?
Authorised distributors including Newark Electronics, TME, Farnell, Avnet America and Avnet Abacus have stock available or on a lead time for 1040608017.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1040608017 often in real-time on the comparison pages.
What if I can't find stock of 1040608017?
You can fill out our help required form which you can use to request a quote for 1040608017 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
