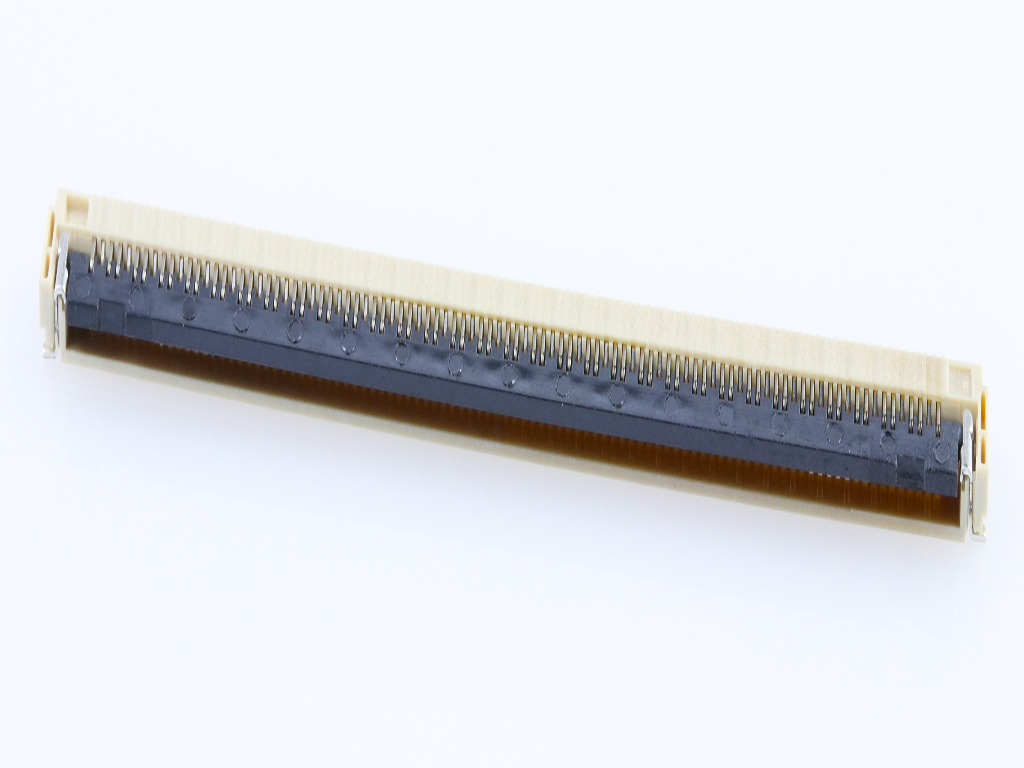

1040839617 Easy-On by Molex
0.50mm Pitch Easy-On FFC/FPC Slim Connector, Surface Mount, Right-Angle,ZIF, Bottom Contact Style, Front Flip, 1.50mm Mated Height, Gold (Au) Plating, 96 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 104083-9617 |
Where to Buy
Prices starting from US$1.04
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.95
|
15,000
in stock
|
Buy Now |
|
Conrad
from US$2.19
|
15,000
in stock
|
Buy Now |
|
Farnell
from US$1.04
|
15,000
in stock
|
Buy Now |
|
RS
from US$3.16
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.03
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.99
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 96 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.571/g |
| Orientation | Right Angle |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -25° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Fpc Frontflip 96P Conn. Assy(Ss-Lcd)/Molex Rohs Compliant: Yes |Molex 104083-9617 | Newark Electronics |
| Molex FFC/FPC-Anschluss 104083-9617 1 St. Tape on Full reel | Conrad |
| CONN, FFC/FPC, R/A, 96POS, 1ROW, 0.5MM | Farnell |
| Molex 104083-9617 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 96 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.5 FPC FRONTFLIP 96P CONN. ASSY(SS-LCD) | RS Americas |
| FFC & FPC Connectors 0.5 FPC Frontflip 96P Conn. Assy(SS-LCD) | Sager |
