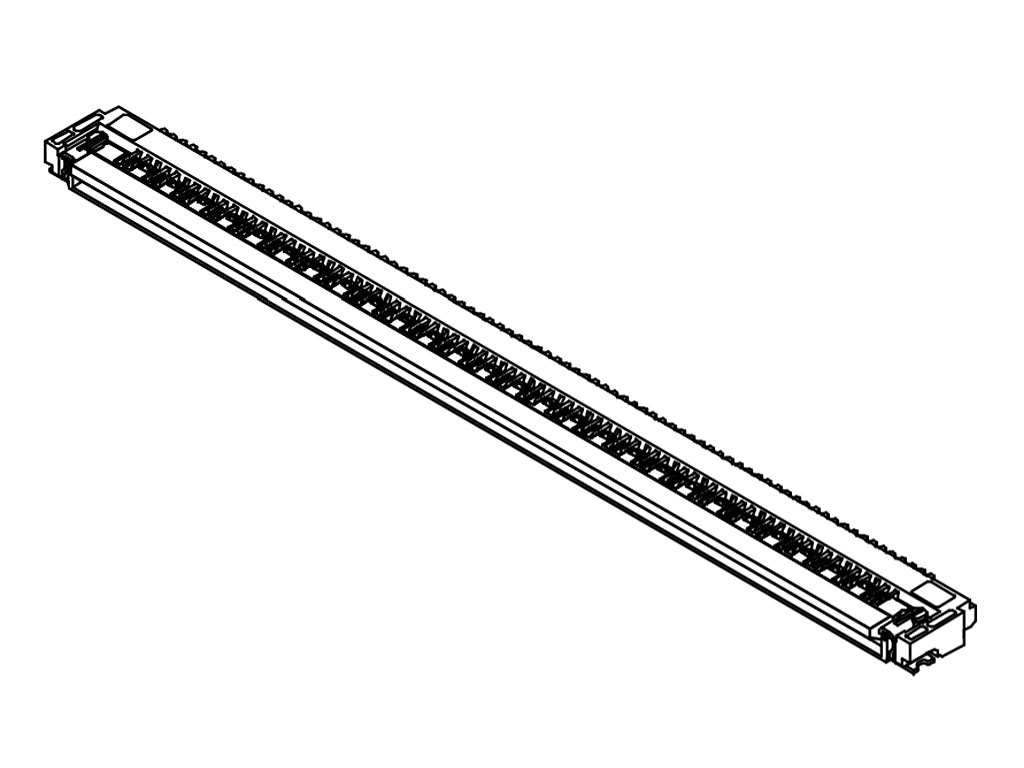

1041148017 Easy-On by Molex
0.50mm Pitch Easy-On FFC/FPC Slim Connector, Surface Mount, Right-Angle,ZIF, Bottom Contact Style, Front Flip, 1.50mm Mated Height, Gold (Au) Plating, 80 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 104114-8017 |
Where to Buy
Prices starting from US$0.19
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.36
|
54,000
in stock
|
Buy Now |
|
TME
from US$0.23
|
54,000
in stock
|
Buy Now |
|
Conrad
from US$1.93
|
54,000
in stock
|
Buy Now |
|
Farnell
from US$0.34
|
54,000
in stock
|
Buy Now |
|
Avnet America
from US$0.19
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.50
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 80 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.459/g |
| Orientation | Right Angle |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.50Mm Pitch Easy-On Ffc/Fpc Slim Connector, Surface Mount, Right-Angle, zif, Bottom Contact Style, Front Flip, 1.50Mm Mated Height, Gold (Au) Plating, 80 Circuits |Molex 104114-8017 | Newark Electronics |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss 104114-8017 1 St. Tape on Full reel | Conrad |
| FPC CONN, R/A RCPT, 80POS, 1ROW, 0.5MM | Farnell |
| Conn FFC/FPC Connector SKT 80 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.5MM FFC FRONTFLIP SMT AU 80 CKT. | RS Americas |
| FFC & FPC Connectors 0.5mm FFC Frontflip SMT Au 80 Ckt. | Sager |
