1042490810 SlimStack by Molex

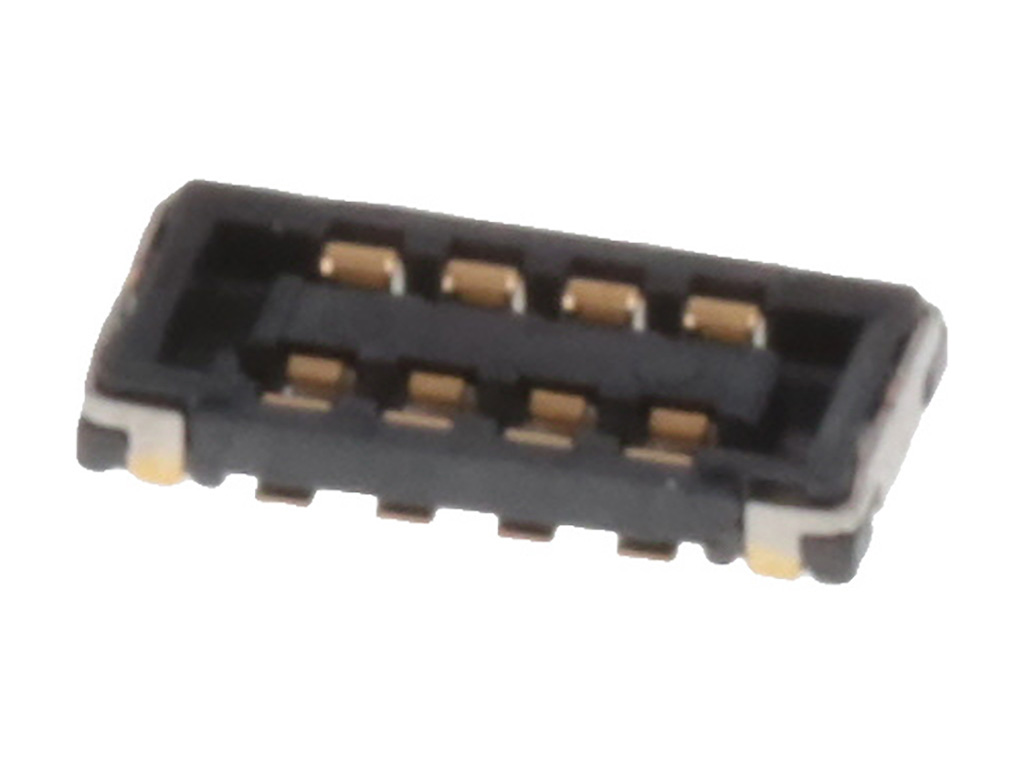

SlimStack Hybrid Power SMT Board-to-Board Receptacle, 0.80mm Pitch, 0.75mm Height, 4 Power, 4 Signal Contacts
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 104249-0810 |
Where to Buy
Prices starting from US$0.30
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.46
|
2,559,000
in stock
|
Buy Now |
|
Conrad
from US$0.34
|
2,559,000
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
2,310,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.39
|
49,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.30
|
7,500
in stock
|
Buy Now |
|
RS
from US$0.60
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.49
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A, 4.5A* |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 0.75mm |
| Mated Width | 2.50mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.015/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.80mm |
| Pitch Termination Interface | 0.80mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.050µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Power Signal Configuration | 4p - 4s |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.8 B/B Rec Assy 8Ckt Embossed Tape Pkg |Molex 104249-0810 | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 8 Rastermaß: 0.8 mm 1042490810 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, RCPT, 8POS, 2ROW | Farnell |
| .8MM PLG 02X08P SMT BTB 4P 4S | TTI Americas |
| 0.8 B/B REC ASSY 8CKT EMBOSSED TAPE PKG | Heilind Americas |
| Molex 104249-0810 PCB Header | RS |
| Conn Board to Board RCP 8 POS 0.8mm Solder ST SMD Embossed T/R | Avnet America |
| SLIMSTACK HYBRID SMT BOARD-TO-BOARD RECEPTACLE | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1042490810?
Additional datasheets, footprints and schematics for 1042490810 are listed on our Part Details page. You can also find images and similar parts to 1042490810 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1042490810 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1042490810 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1042490810 fall under?
The 1042490810 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1042490810 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1042490810 you can contact the distributor directly for product support, shipping queries etc.
Is the 1042490810 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1042490810 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, TTI Americas and Heilind Americas have stock available or on a lead time for 1042490810.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1042490810 often in real-time on the comparison pages.
What if I can't find stock of 1042490810?
You can fill out our help required form which you can use to request a quote for 1042490810 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
