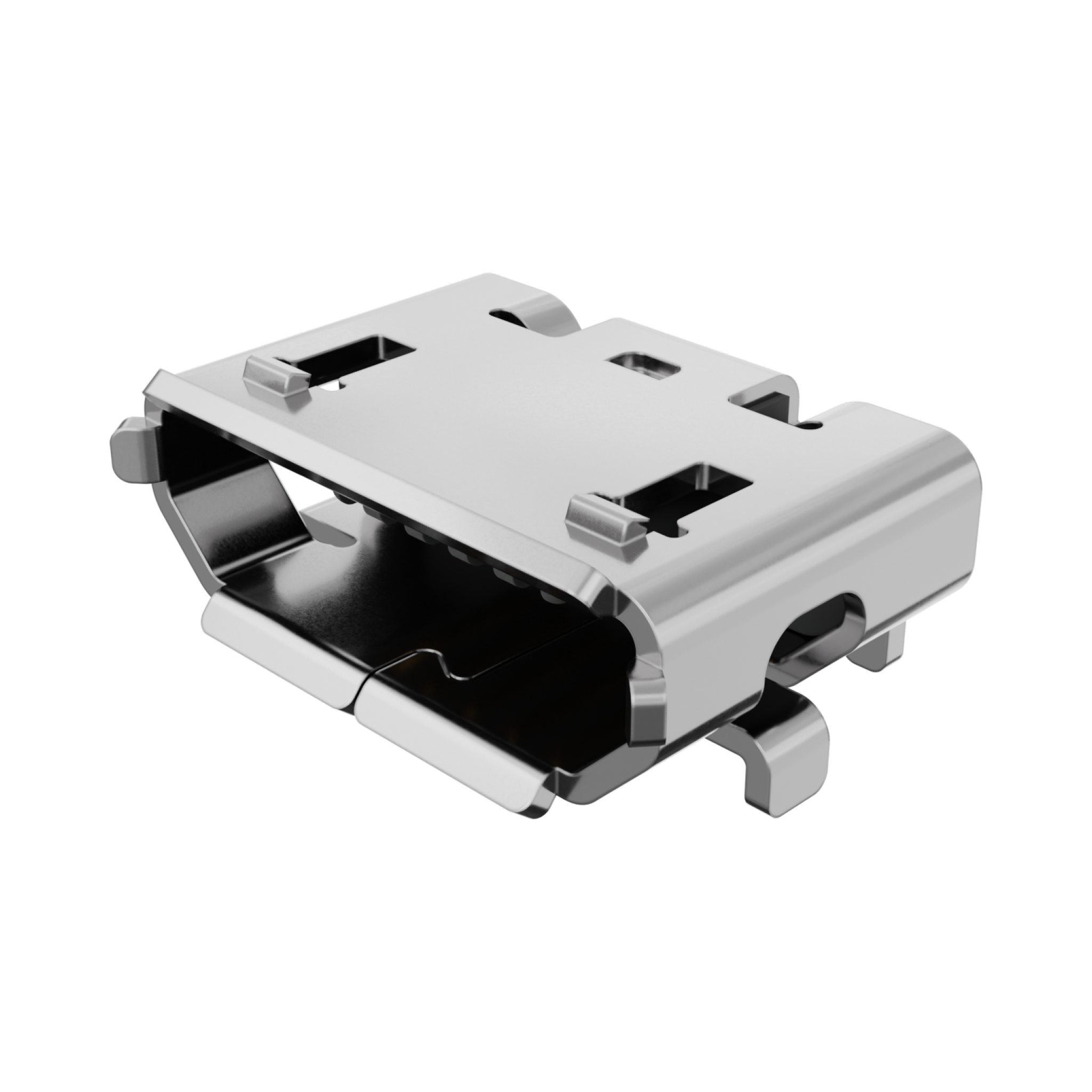

1050170001 USB by Molex
Micro-USB B Receptacle, Bottom Mount, Surface Mount, Lead-Free, 0.60mm Tabs, TID
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
105017-0001,
NT501-6734 |
Where to Buy
Prices starting from US$0.31
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.81
|
114,679
in stock
|
Buy Now |
|
Farnell
from US$0.62
|
88,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.63
|
32,000
in stock
|
Buy Now |
|
Avnet America
from US$0.32
|
32,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.42
|
22,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.47
|
20,000
in stock
|
Buy Now |
|
element14
from US$0.63
|
11,337
in stock
|
Buy Now |
|
CoreStaff
from US$0.36
|
7,328
in stock
|
Buy Now |
|
RS
from US$0.71
|
6,410
in stock
|
Buy Now |
|
TME
from US$0.41
|
6,329
in stock
|
Buy Now |
|
Rutronik
from US$0.31
|
6,000
in stock
|
Buy Now |
|
|
RS Americas
from US$0.75
|
330
in stock
|
Buy Now |
|
Heilind Americas
from US$0.69
|
325
in stock
|
Buy Now |
|
Offical Electronic
-
|
615
in stock
|
Buy Now |
|
Compona
from US$0.32
|
0
in stock
|
Buy Now |
|
Sager
from US$0.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.33
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.45
|
0
in stock
|
Buy Now |
|
EME
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.8A, 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Flammability | 94V-0 |
| Gender | Female |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Bottom-Mount |
| Net Weight | 0.233/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Panel Mount | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.65mm |
| Pitch Termination Interface | 0.65mm |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -30° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro USB Buchse Rechtwinklig 1050170001 Molex Inhalt: 1 St. | Conrad |
| USB CONN, 2.0 TYPE B, R/A RCPT, 5POS | Farnell |
| Uusb B Rec Botmt Flange Th 0.60 Rohs Compliant: Yes |Molex 105017-0001 | Newark Electronics |
| Conn Micro USB Type B Receptacle 5 POS 0.65mm RA Surface Mount 1 Port | Avnet America |
| MICRO USB B REC RA SMT BOT | TTI Americas |
| MICRO-USB B RECEPTACLE, SMT | TTI Europe |
| MICRO USB CONN, 2.0 TYPE B, RCPT, 5POS | element14 |
| Molex 105017-0001 USB Connector | RS |
| Connector: USB B micro | TME |
| Mini-USB Type-B 2.0 R/A SMT | Rutronik |
| CONN. | RS Americas |
| CUT TAPE - FY08 REVERSE TYPE MICRO USB B TYPE | Heilind Americas |
| MOLEX 105017-0001 Socket µUSB 5p SMT | Compona |
| USB Connectors MICRO USB B REC RA SMT BOT | Sager |
| FY08 REVERSE TYPE MICRO USB B TYPE | Heilind Europe |
