1051330011 USB by Molex

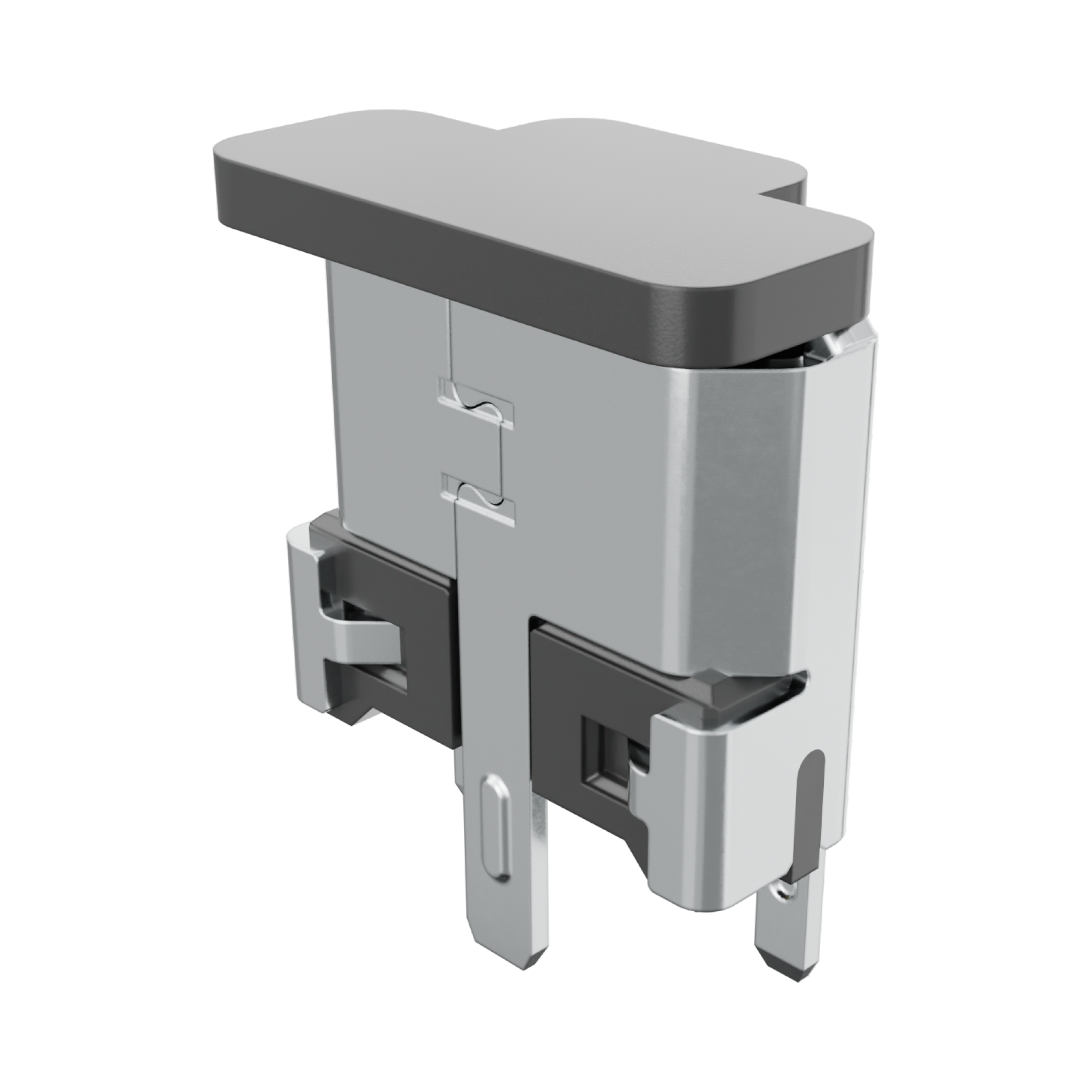

Micro-USB B Receptacle, Vertical, Surface Mount, 6.70mm Height, 2.30mm Solder Tabs, with Cover, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105133-0011 |
Where to Buy
Prices starting from US$0.48
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.49
|
143,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.51
|
140,500
in stock
|
Buy Now |
|
Farnell
from US$0.81
|
19,350
in stock
|
Buy Now |
|
Heilind Americas
from US$0.52
|
13,020
in stock
|
Buy Now |
|
CoreStaff
from US$0.88
|
4,613
in stock
|
Buy Now |
|
Sager
from US$0.53
|
4,000
in stock
|
Buy Now |
|
element14
from US$0.75
|
3,000
in stock
|
Buy Now |
|
TME
from US$0.62
|
2,997
in stock
|
Buy Now |
|
TTI Europe
from US$0.48
|
1,000
in stock
|
Buy Now |
|
RS
from US$1.37
|
715
in stock
|
Buy Now |
|
Micros
from US$0.74
|
500
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.28
|
274
in stock
|
Buy Now |
|
Conrad
from US$1.14
|
274
in stock
|
Buy Now |
|
Offical Electronic
-
|
569
in stock
|
Buy Now |
|
Compona
from US$0.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.53
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.8A, 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Flammability | 94V-0 |
| Gender | Female |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Vertical |
| Net Weight | 0.360/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.65mm |
| Pitch Termination Interface | 0.65mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -30° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro-USB Type-B 2.0 STR SMT | Rutronik |
| Uusb B Rec Vertical Flange Th 6.70 2.30 Rohs Compliant: Yes |Molex 105133-0011 | Newark Electronics |
| MICRO USB CONN, 2.0 TYPE B, RCPT, 5POS | Farnell |
| UUSB B REC VERTICAL FLANG 6.70 2.30 | Heilind Americas |
| USB Connectors MICRO USB B REC VT | Sager |
| USB CONN, 2.0, MICRO USB TYPE B, RCPT | element14 |
| Connector: USB B micro | TME |
| MICRO USB B RECEPTACLE SMT | TTI Europe |
| Molex 105133-0011 USB Connector | RS |
| socket | Micros |
| Molex 1051330011 Micro-USB B Receptacle Vertical Smd Lead-free | Rapid Electronics |
| Micro USB Buchse Vertikal 1051330011 Molex Inhalt: 1 St. | Conrad |
| MOLEX 105133-0011 Socket Square Micro-USB B SMT 180° | Compona |
| MICRO USB B REC VT | TTI Asia |
| USB Connector, Micro USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount, Vertical | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1051330011?
Additional datasheets, footprints and schematics for 1051330011 are listed on our Part Details page. You can also find images and similar parts to 1051330011 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1051330011 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1051330011 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1051330011 fall under?
The 1051330011 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1051330011 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1051330011 you can contact the distributor directly for product support, shipping queries etc.
Is the 1051330011 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1051330011 have stock available?
Authorised distributors including Rutronik, Newark Electronics, Farnell, Heilind Americas and CoreStaff have stock available or on a lead time for 1051330011.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1051330011 often in real-time on the comparison pages.
What if I can't find stock of 1051330011?
You can fill out our help required form which you can use to request a quote for 1051330011 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
