1053101206 Nano-Fit by Molex

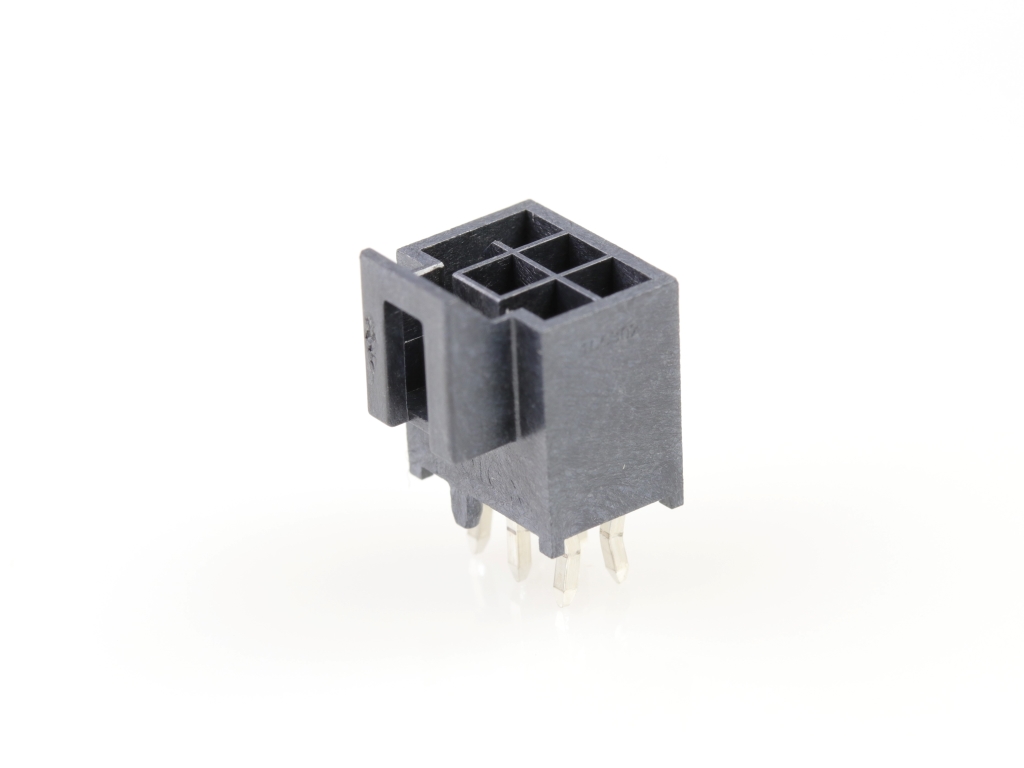

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 6 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105310-1206 |
Where to Buy
Prices starting from US$1.14
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.51
|
7,611
in stock
|
Buy Now |
|
Conrad
from US$1.58
|
5,885
in stock
|
Buy Now |
|
Farnell
from US$2.53
|
5,298
in stock
|
Buy Now |
|
element14
from US$1.65
|
3,919
in stock
|
Buy Now |
|
TME
from US$1.61
|
3,379
in stock
|
Buy Now |
|
RS
from US$2.04
|
60
in stock
|
Buy Now |
|
TTI Europe
from US$1.43
|
0
in stock
|
Buy Now |
|
Sager
from US$1.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.26
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.14
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.590/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Nanofit Hdr Vt Dlr Knk 6Ckt 15Au Blk Rohs Compliant: Yes |Molex 105310-1206 | Newark Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 2.50 mm 1053101206 1 St. Tray | Conrad |
| PIN HEADERS | Farnell |
| CONNECTOR, HEADER, 6POS, 2ROW, 2.5MM | element14 |
| Connector: wire-board | TME |
| Molex 105310-1206 PCB Header | RS |
| NANOFIT HDR VT DLR KNK 6C | TTI Europe |
| Headers & Wire Housings NANO-FIT HDR 02X03P 15AU VT | Sager |
| NANO-FIT HDR VT DLR KNK 6CKT 15AU BLK | Heilind Americas |
| NANO-FIT HDR 02X03P 15AU VT | TTI Asia |
