1053101208 Nano-Fit by Molex

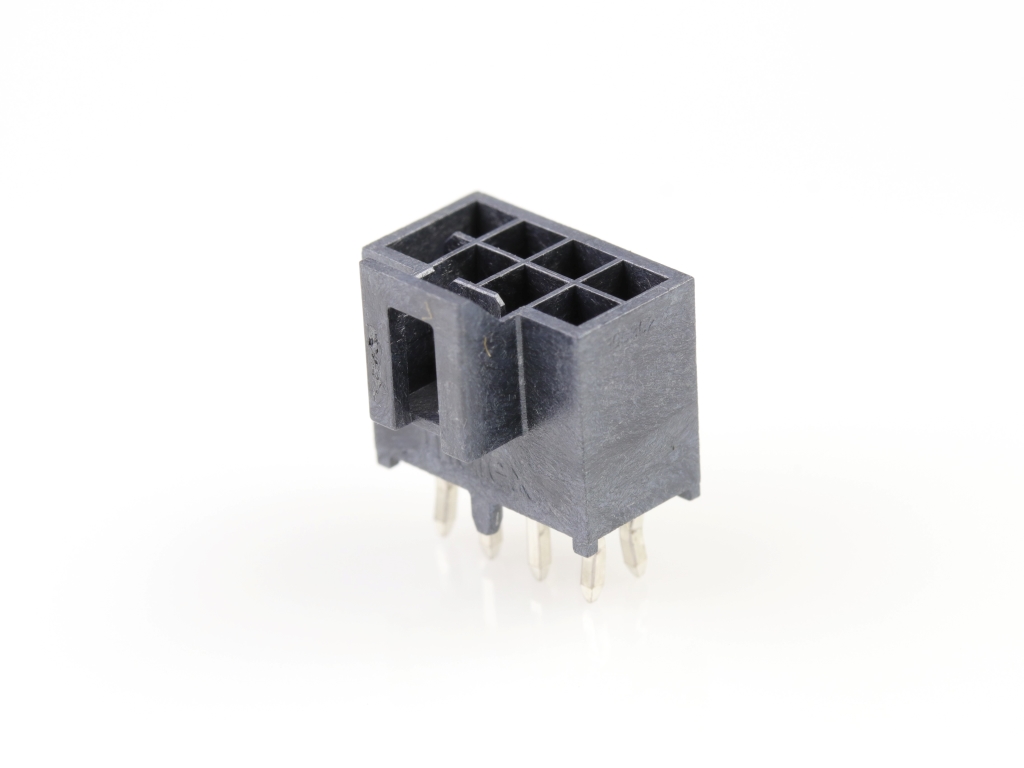

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 8 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105310-1208 |
Where to Buy
Prices starting from US$1.36
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.53
|
14,657
in stock
|
Buy Now |
|
Farnell
from US$2.73
|
13,192
in stock
|
Buy Now |
|
Heilind Europe
from US$2.04
|
3,368
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.36
|
2,206
in stock
|
Buy Now |
|
Newark Electronics
from US$2.30
|
2,087
in stock
|
Buy Now |
|
element14
from US$1.97
|
2,064
in stock
|
Buy Now |
|
TTI Europe
from US$1.47
|
780
in stock
|
Buy Now |
|
RS
from US$2.89
|
90
in stock
|
Buy Now |
|
TME
from US$2.08
|
45
in stock
|
Buy Now |
|
Rutronik
from US$1.65
|
0
in stock
|
Buy Now |
|
Sager
from US$1.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.67
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.750/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.5 mm 1053101208 1 St. Tray | Conrad |
| CONN, HEADER, 8POS, 2ROW, 2.5MM | Farnell |
| NANO-FIT HDR VT DLR KNK 8CKT 15AU BLK | Heilind Europe |
| Connector, Header, 8Pos, 2Row, 2.5Mm | Newark Electronics |
| CONNECTOR, HEADER, 8POS, 2ROW, 2.5MM | element14 |
| NANO-FIT VERTICAL HEADER 8CIRC | TTI Europe |
| Molex 105310-1208 PCB Header | RS |
| Connector: wire-board | TME |
| 08P Nano-Fit MALE 2 ROW 2,50MM AU | Rutronik |
| Headers & Wire Housings NANO-FIT HDR 02X04P 15AU VT | Sager |
| NANO-FIT HDR 02X04P 15AU VT | TTI Asia |
| Conn Power Header 8 POS 2.5mm Solder ST Through Hole 8 Terminal 1 Port | Avnet Asia |
