1053102208 Nano-Fit by Molex

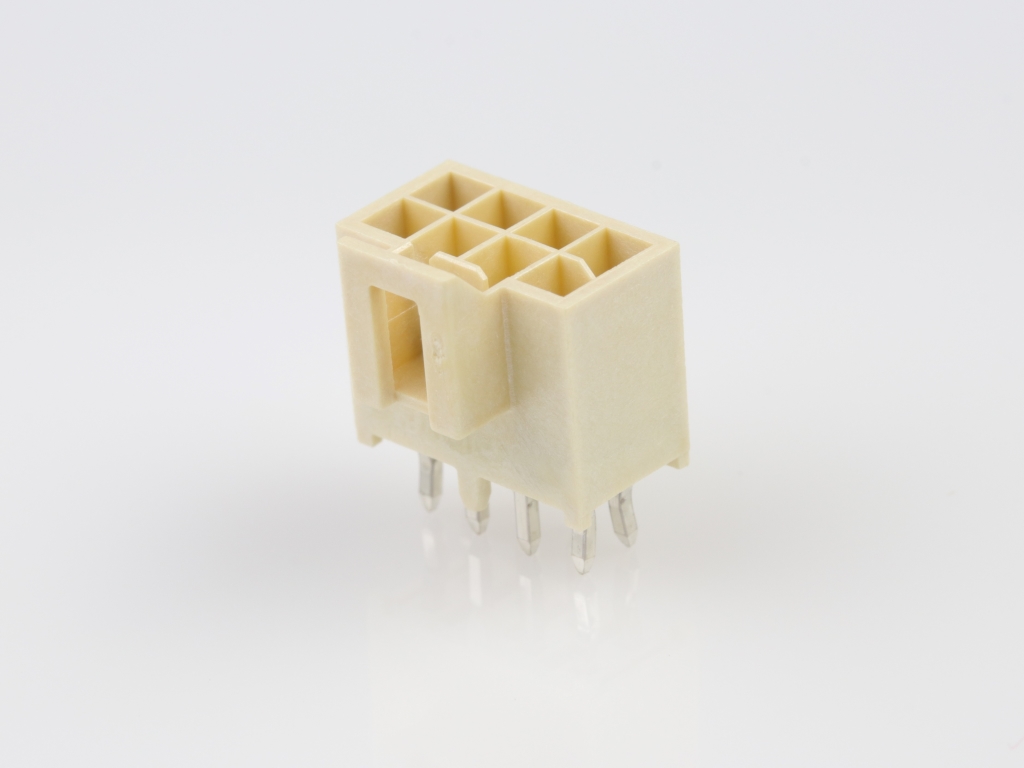

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 8 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105310-2208 |
Where to Buy
Prices starting from US$1.80
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$2.06
|
982
in stock
|
Buy Now |
|
Conrad
from US$1.98
|
982
in stock
|
Buy Now |
|
Farnell
from US$3.58
|
884
in stock
|
Buy Now |
|
Newark Electronics
from US$2.81
|
93
in stock
|
Buy Now |
|
element14
from US$2.48
|
93
in stock
|
Buy Now |
|
Heilind Americas
from US$1.94
|
1
in stock
|
Buy Now |
|
Sager
from US$2.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.80
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.750/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.50 mm 1053102208 1 St. Tray | Conrad |
| CONN, HEADER, 8POS, 2ROW, 2.5MM, TH | Farnell |
| Conn, Hdr, 8Pos, 2Row, 2.5Mm, Th Rohs Compliant: Yes |Molex 105310-2208 | Newark Electronics |
| CONN, HDR, 8POS, 2ROW, 2.5MM, TH | element14 |
| NANO-FIT HDR VT DLR KNK 8CKT 15AU WHT | Heilind Americas |
| Headers & Wire Housings NANO-FIT HDR 02X04P 15AU VT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1053102208?
Additional datasheets, footprints and schematics for 1053102208 are listed on our Part Details page. You can also find images and similar parts to 1053102208 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1053102208 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1053102208 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1053102208 fall under?
The 1053102208 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 1053102208 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1053102208 you can contact the distributor directly for product support, shipping queries etc.
Is the 1053102208 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1053102208 have stock available?
Authorised distributors including TME, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 1053102208.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1053102208 often in real-time on the comparison pages.
What if I can't find stock of 1053102208?
You can fill out our help required form which you can use to request a quote for 1053102208 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
