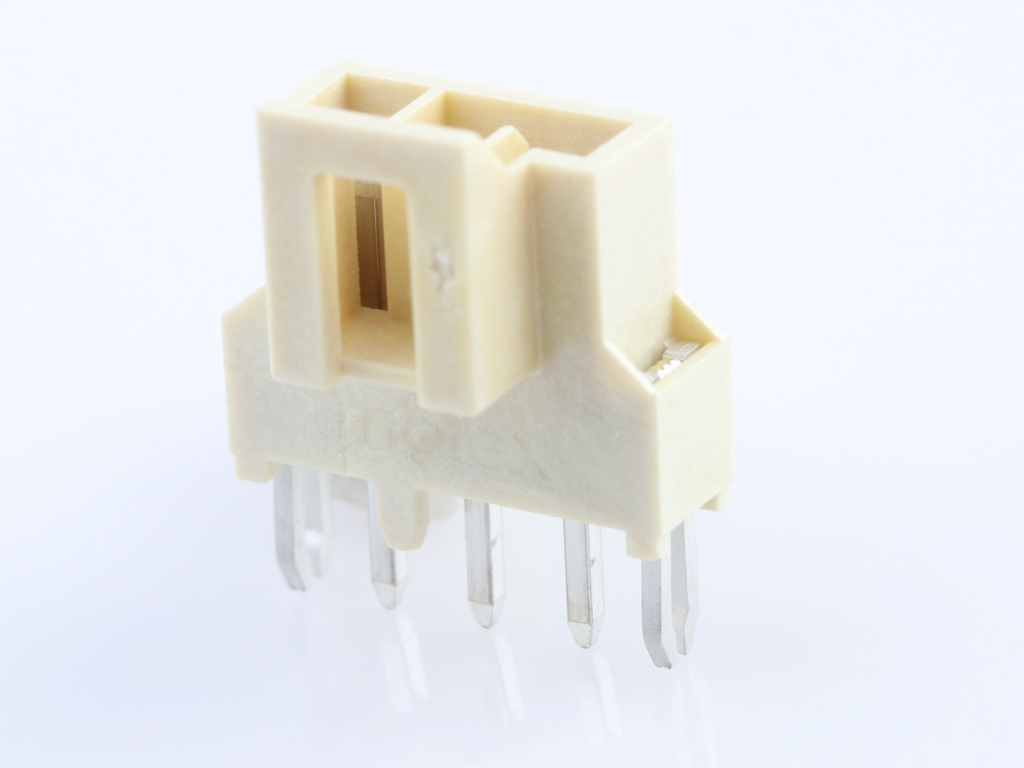

1053112103 Nano-Fit by Molex
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 3 Circuits, with Solder Clips, Tin (Sn) Plating, Natural, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105311-2103 |
Where to Buy
Prices starting from US$0.57
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.57
|
2,338
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
1,623
in stock
|
Buy Now |
|
TME
from US$1.03
|
1,623
in stock
|
Buy Now |
|
Farnell
from US$1.34
|
1,461
in stock
|
Buy Now |
|
RS
from US$1.58
|
0
in stock
|
Buy Now |
|
Sager
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.76
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.490/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NANOFIT HDR VRT, TH, 2.50mm, SR, 3, SOLDER CLIPS, TIN (Sn), | Heilind Americas |
| Nanofit Hdr Vt Sgl Frk 3Ckt Tin |Molex 105311-2103 | Newark Electronics |
| Connector: wire-board | TME |
| CONN, HEADER, 3POS, 1ROW, 2.5MM, TH | Farnell |
| Molex 105311-2103 PCB Header | RS |
| Headers & Wire Housings NANO-FIT HDR 01X03P SN VT | Sager |
