1053112205 Nano-Fit by Molex

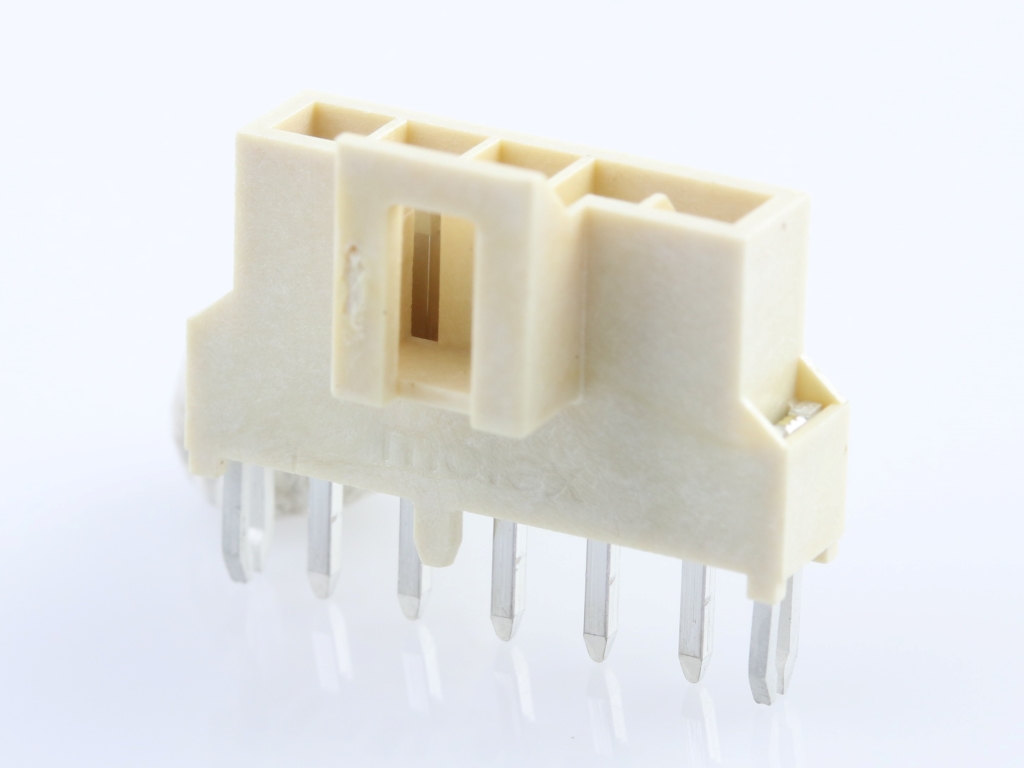

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 5 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105311-2205 |
Where to Buy
Prices starting from US$0.78
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.95
|
231
in stock
|
Buy Now |
|
Newark Electronics
from US$1.20
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.78
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.20
|
0
in stock
|
Buy Now |
|
Sager
from US$1.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.95
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.690/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NANO-FIT HDR VT SGL FRK 5CKT 15AU WHT | Heilind Americas |
| Nanofit Hdr Vt Sgl Frk 5Ckt 15Au Nat |Molex 105311-2205 | Newark Electronics |
| Nano-Fit Vertical Header with Solder Clips 2.5mm Pitch Single Row 5 Circuits 0.38?m Gold Plating Th | Avnet America |
| NANOFIT HDR VT SGL FRK 5CKT 15AU NAT | RS Americas |
| Headers & Wire Housings NANO-FIT HDR 01X05P 15AU VT | Sager |
| Nano-Fit Vertical Header with Solder Clips 2.5mm Pitch Single Row 5 Circuits 0.38�m Gold Plating Th | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1053112205?
Additional datasheets, footprints and schematics for 1053112205 are listed on our Part Details page. You can also find images and similar parts to 1053112205 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1053112205 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1053112205 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1053112205 fall under?
The 1053112205 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 1053112205 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1053112205 you can contact the distributor directly for product support, shipping queries etc.
Is the 1053112205 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1053112205 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, Avnet America, RS Americas and Sager have stock available or on a lead time for 1053112205.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1053112205 often in real-time on the comparison pages.
What if I can't find stock of 1053112205?
You can fill out our help required form which you can use to request a quote for 1053112205 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
