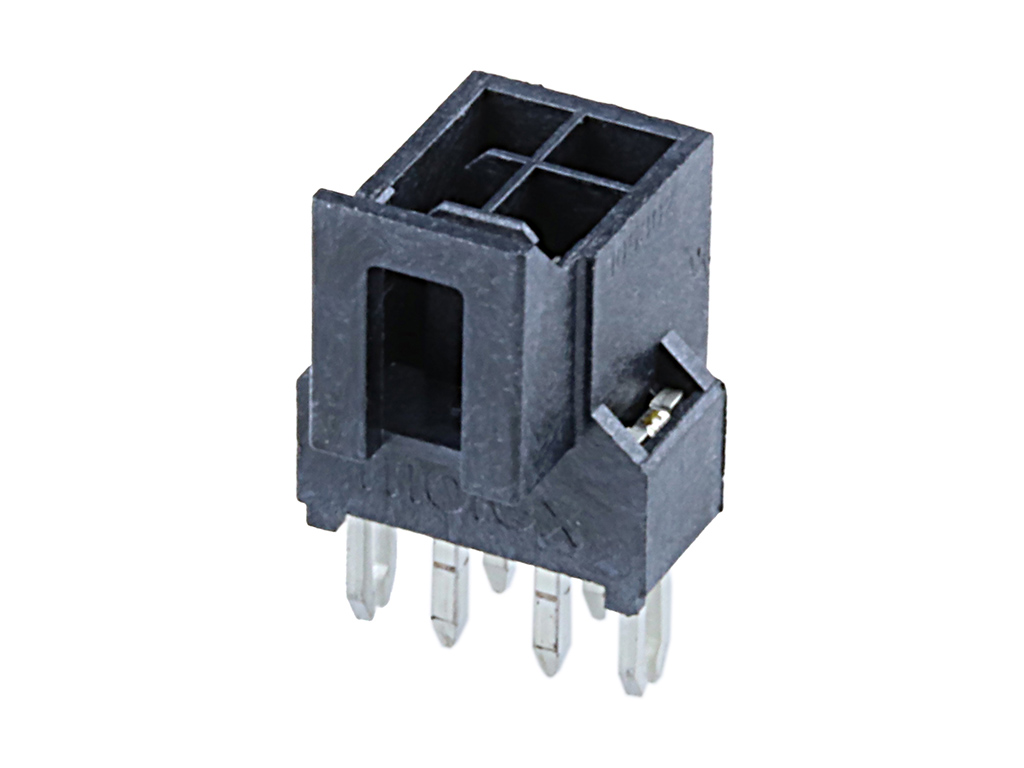

1053121104 Nano-Fit by Molex
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 4 Circuits, with Solder Clips, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105312-1104 |
Where to Buy
Prices starting from US$0.61
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.17
|
1,030
in stock
|
Buy Now |
|
Heilind Americas
from US$0.61
|
977
in stock
|
Buy Now |
|
Newark Electronics
from US$1.45
|
100
in stock
|
Buy Now |
|
element14
from US$1.12
|
100
in stock
|
Buy Now |
|
Farnell
from US$1.22
|
100
in stock
|
Buy Now |
|
RS
from US$2.46
|
0
in stock
|
Buy Now |
|
Sager
from US$0.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.91
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.550/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | None |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| NANOFIT HDR VT DLR FRK 4CKT TI | Heilind Americas |
| Conn, Hdr, 4Pos, 2Row, 2.5Mm, Th Rohs Compliant: Yes |Molex 105312-1104 | Newark Electronics |
| CONN, HDR, 4POS, 2ROW, 2.5MM, TH | element14 |
| Molex 105312-1104 PCB Header | RS |
| Headers & Wire Housings NANO-FIT HDR 02X02P SN VT | Sager |
| NANO-FIT HDR 02X02P SN VT | TTI Asia |
