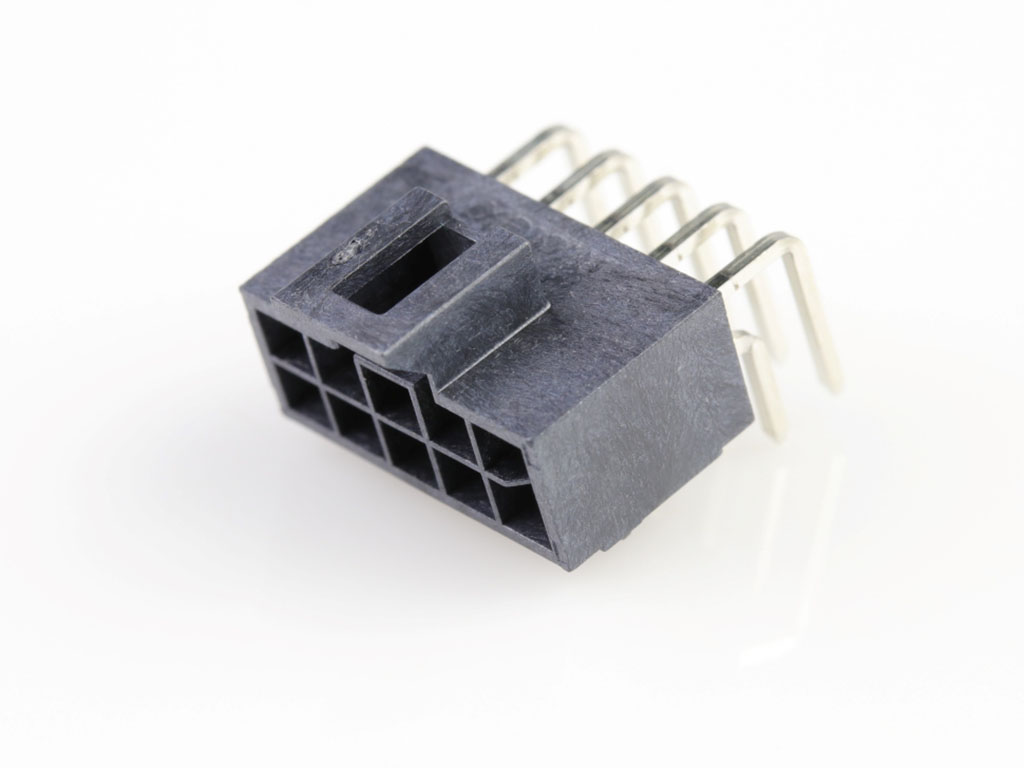

1053141110 Nano-Fit by Molex
Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 10 Circuits, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105314-1110 |
Where to Buy
Prices starting from US$1.14
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.17
|
1,432
in stock
|
Buy Now |
|
Newark Electronics
from US$2.04
|
785
in stock
|
Buy Now |
|
element14
from US$1.65
|
785
in stock
|
Buy Now |
|
Farnell
from US$1.90
|
785
in stock
|
Buy Now |
|
RS
from US$2.23
|
54
in stock
|
Buy Now |
|
Rutronik
from US$1.75
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.57
|
0
in stock
|
Buy Now |
|
Sager
from US$1.14
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.17
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.32
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.27
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 1.100/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 2.5 mm 1053141110 1 St. Tray | Conrad |
| Conn, R/A Header, 10Pos, 2Row, 2.5Mm Rohs Compliant: Yes |Molex 105314-1110 | Newark Electronics |
| CONN, R/A HEADER, 10POS, 2ROW, 2.5MM | element14 |
| Molex 1053141110 PCB Header | RS |
| 10P Nano-Fit MALE 2 ROW R/A 2,50MM | Rutronik |
| NANOFIT HDR RA DLR 10CKT | TTI Europe |
| Headers & Wire Housings NANO-FIT HDR 02X05P SN RA | Sager |
| NANOFIT RA HDR, TH, 2.50mm, DR, 10, TIN (Sn), BLK | Heilind Americas |
| NANO-FIT HDR 02X05P SN RA | TTI Asia |
