1054051112 Nano-Fit by Molex

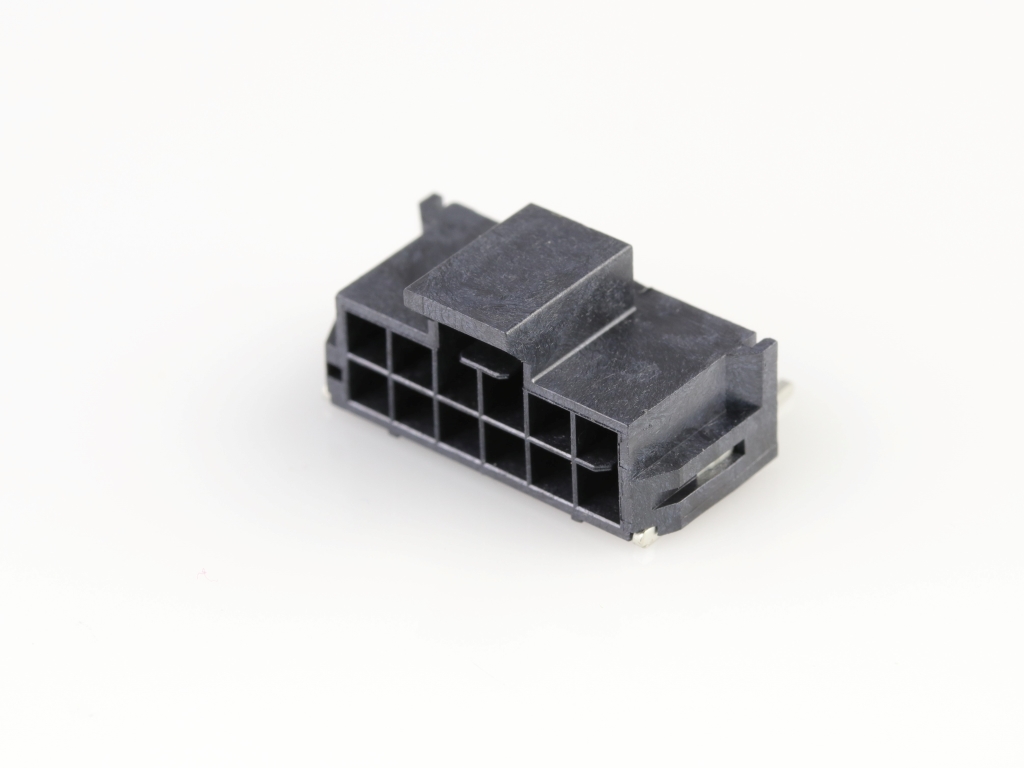

Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Dual Row, 12 Circuits, 0.76µm Tin (Sn) Plating, Black, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105405-1112 |
Where to Buy
Prices starting from US$2.15
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$3.25
|
2,250
in stock
|
Buy Now |
|
element14
from US$3.92
|
2,250
in stock
|
Buy Now |
|
Farnell
from US$4.65
|
2,250
in stock
|
Buy Now |
|
TTI Europe
from US$3.71
|
0
in stock
|
Buy Now |
|
Sager
from US$3.52
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.15
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.550/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Pcb Hdr, R/A, 12P, 2R/2.5Mm, Smt Rohs Compliant: Yes |Molex 105405-1112 | Newark Electronics |
| CONN, PCB HDR, R/A, 12P, 2R/2.5MM, SMT | element14 |
| NANO-FIT RA HEADER, SMT, 12CKT | TTI Europe |
| Headers & Wire Housings Nano Fit SMT R/A Hdr 2X6 Blk tin | Sager |
| NANO FIT SMT R/A HDR 2X6 IN | Heilind Americas |
