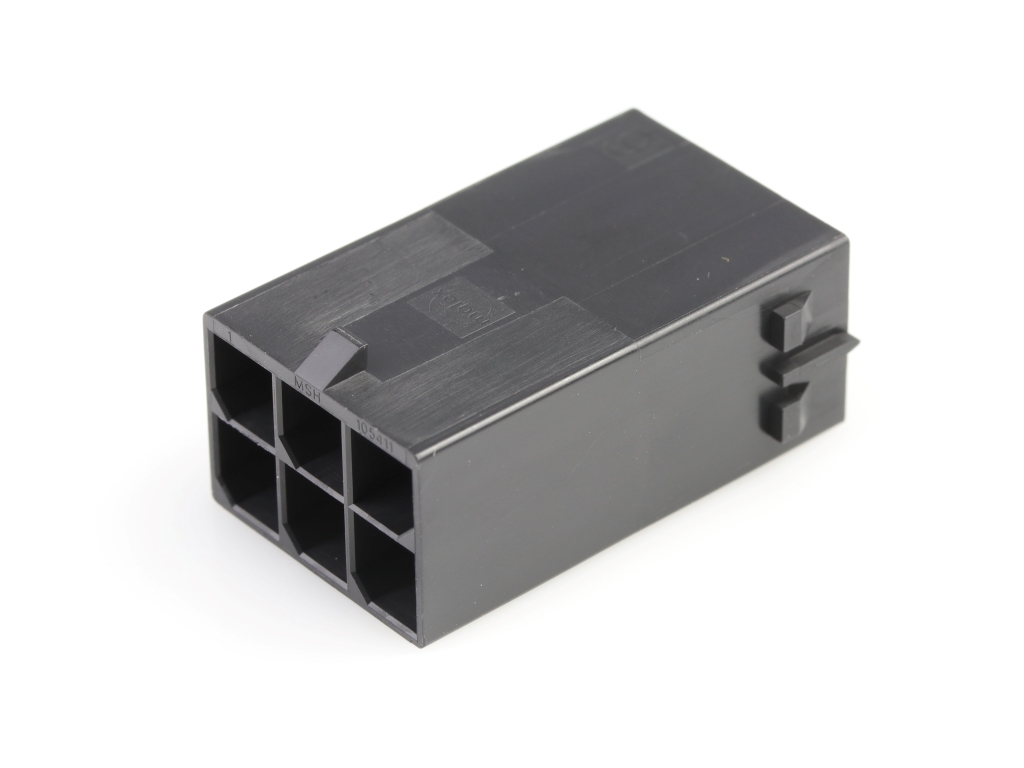

1054110106 Mega-Fit by Molex
Mega-Fit Plug Housing, Dual Row, 6 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105411-0106 |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.72
|
5,822
in stock
|
Buy Now |
|
Conrad
from US$0.99
|
5,822
in stock
|
Buy Now |
|
Farnell
from US$0.84
|
5,241
in stock
|
Buy Now |
|
Newark Electronics
from US$0.36
|
2,447
in stock
|
Buy Now |
|
element14
from US$0.66
|
915
in stock
|
Buy Now |
|
RS
from US$1.05
|
0
in stock
|
Buy Now |
|
Sager
from US$0.51
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.52
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.53
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.89
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 6 |
| Color Resin | Black |
| Gender | Plug |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 4.180/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C, -40° to +120°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 6 1054110106 1 St. Bag | Conrad |
| CONNECTOR HOUSING, PLUG, 6POS, 5.7MM | Farnell |
| Connector Housing, Plug, 6Pos, 5.7Mm | Newark Electronics |
| Molex 105411-0106 Connector Housing | RS |
| Headers & Wire Housings MEGA-FIT PLG 02X03P 94V-0 GLO | Sager |
| MEGA-FIT FREEHANG PLUG HSG DR 6CKT BLK | Heilind Americas |
| MEGA-FIT PLG 02X03P 94V-0 GLO | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1054110106?
Additional datasheets, footprints and schematics for 1054110106 are listed on our Part Details page. You can also find images and similar parts to 1054110106 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1054110106 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1054110106 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1054110106 fall under?
The 1054110106 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 1054110106 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1054110106 you can contact the distributor directly for product support, shipping queries etc.
Is the 1054110106 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1054110106 have stock available?
Authorised distributors including TME, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 1054110106.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1054110106 often in real-time on the comparison pages.
What if I can't find stock of 1054110106?
You can fill out our help required form which you can use to request a quote for 1054110106 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
