1054170333 Mega-Fit by Molex

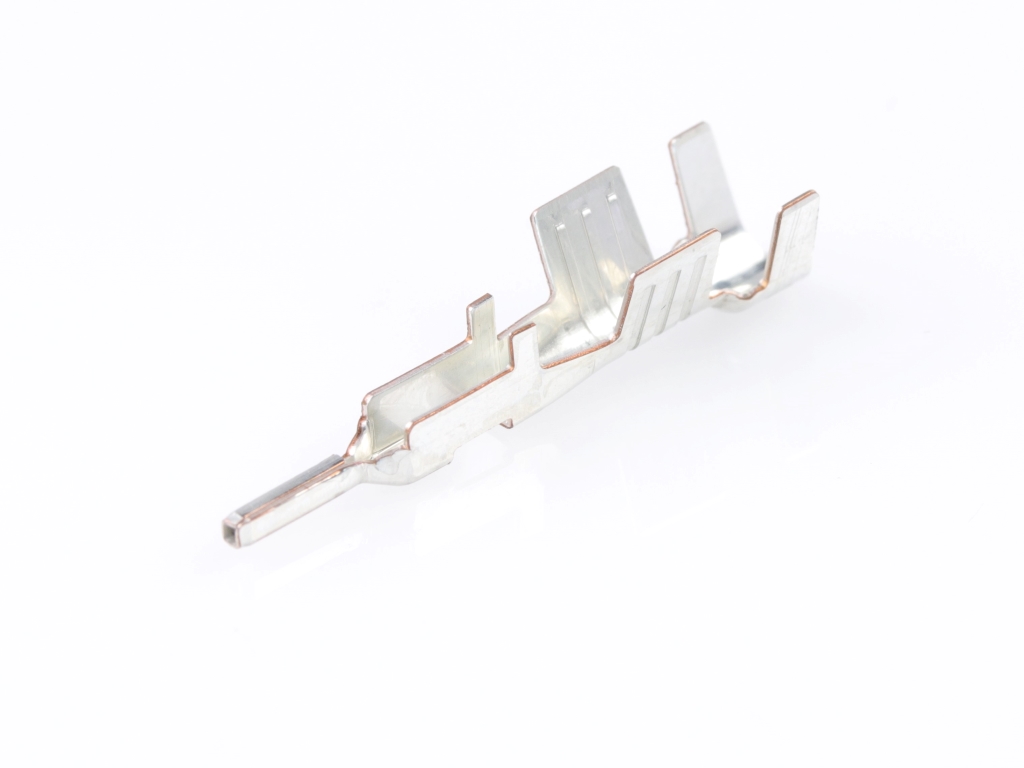

Mega-Fit Crimp Terminal, Male, Tin (Sn) Plating, Double 16+16 or Single 12 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105417-0333 |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.33
|
24,000
in stock
|
Buy Now |
|
element14
from US$0.15
|
24,000
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
24,000
in stock
|
Buy Now |
|
TME
from US$0.15
|
21,000
in stock
|
Buy Now |
|
RS
from US$0.16
|
8,550
in stock
|
Buy Now |
|
TTI Europe
from US$0.14
|
0
in stock
|
Buy Now |
|
Sager
from US$0.11
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Male |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 477.500/mg |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 4.06mm max. |
| Wire Size Awg | 12, 16+16 |
| Wire Size Mm | 4.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact, Pin, 12Awg, Crimp | Newark Electronics |
| CONTACT, PIN, 12AWG, CRIMP | element14 |
| Contact | TME |
| Molex 105417-0333 Crimp Terminal | RS |
| MEGA-FIT MALETML PRE-TIN12AWG | TTI Europe |
| Headers & Wire Housings MEGA-FIT 12AWG CRMP TERM MA SN | Sager |
| MEGA-FIT MALE TML PRE-TIN 12A G | Heilind Americas |
| MEGA-FIT 12AWG CRMP TERM MA SN | TTI Asia |
