1054291206 Nano-Fit by Molex

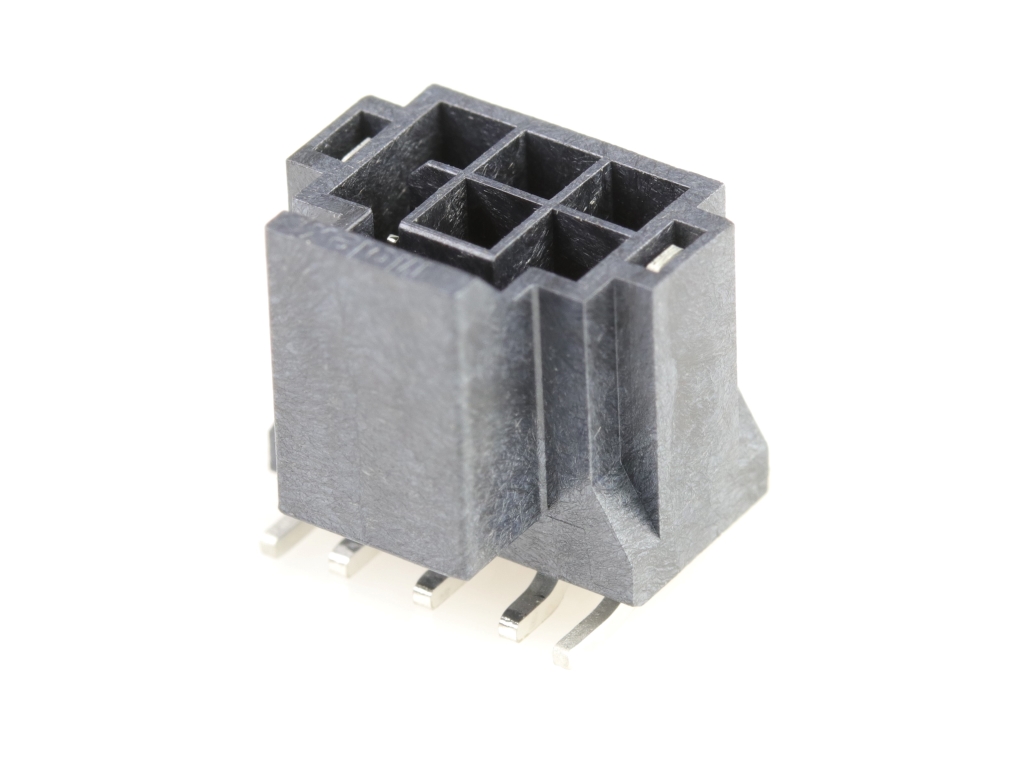

Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 6 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105429-1206 |
Where to Buy
Prices starting from US$1.69
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$3.07
|
600
in stock
|
Buy Now |
|
RS
from US$3.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.04
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.85
|
0
in stock
|
Buy Now |
|
element14
from US$2.18
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
Sager
from US$2.19
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.25
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.69
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.18
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.940/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Nano-Fit Hdr Smt Vt Dlr 6Ckt 15Au Blk Rohs Compliant: Yes |Molex 105429-1206 | Newark Electronics |
| Molex 105429-1206 Header | RS |
| Conn Power HDR 6 POS 2.5mm Solder ST SMD Emboss T/R | Avnet America |
| NANO-FIT HDR SMT VT DLR 6CKT 15AU BLK | RS Americas |
| NANO-FIT HDR SMT VT DLR 6 | TTI Americas |
| Headers & Wire Housings NANO-FIT HDR SMT VT DLR 6CKT 15AU BLK | Sager |
| NANO-FIT HDR SMT VT DLR 6CKT 5AU BLK | Heilind Americas |
