1054291208 Nano-Fit by Molex

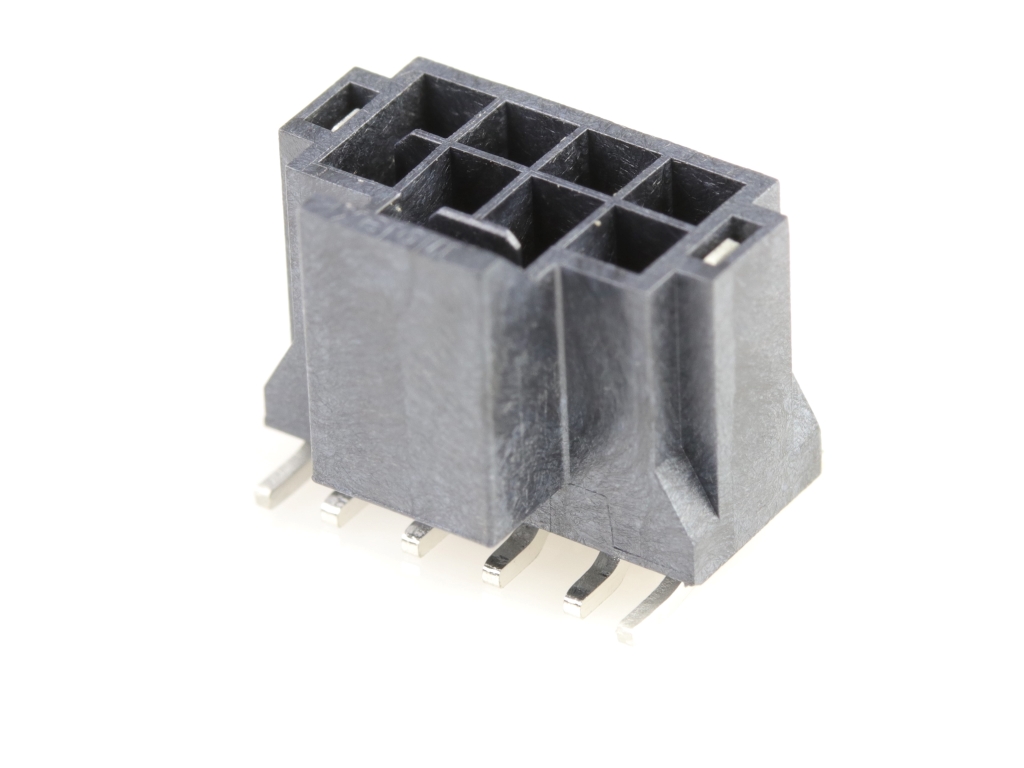

Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 8 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105429-1208 |
Where to Buy
Prices starting from US$1.91
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$2.54
|
900
in stock
|
Buy Now |
|
Conrad
from US$2.89
|
900
in stock
|
Buy Now |
|
Farnell
from US$4.38
|
810
in stock
|
Buy Now |
|
Heilind Americas
from US$2.04
|
594
in stock
|
Buy Now |
|
Newark Electronics
from US$3.10
|
252
in stock
|
Buy Now |
|
element14
from US$3.24
|
252
in stock
|
Buy Now |
|
RS
from US$3.70
|
250
in stock
|
Buy Now |
|
TTI Europe
from US$2.27
|
0
in stock
|
Buy Now |
|
Sager
from US$2.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.91
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.150/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Stiftgehäuse-Platine Polzahl Gesamt 8 Rastermaß: 2.50 mm 1054291208 1 St. Tape | Conrad |
| CONN, HEADER, 8POS, 2ROW, 2.5MM, SMT | Farnell |
| NANO-FIT HDR SMT VT DLR 8CKT 5AU BLK | Heilind Americas |
| Conn, Hdr, 8Pos, 2Row, 2.5Mm, Smt Rohs Compliant: Yes |Molex 105429-1208 | Newark Electronics |
| CONN, HDR, 8POS, 2ROW, 2.5MM, SMT | element14 |
| Molex 105429-1208 PCB Header | RS |
| NANO-FIT VERTICAL HEADER | TTI Europe |
| Headers & Wire Housings NANO-FIT HDR SMT VT DLR 6 | Sager |
