1054301105 Nano-Fit by Molex

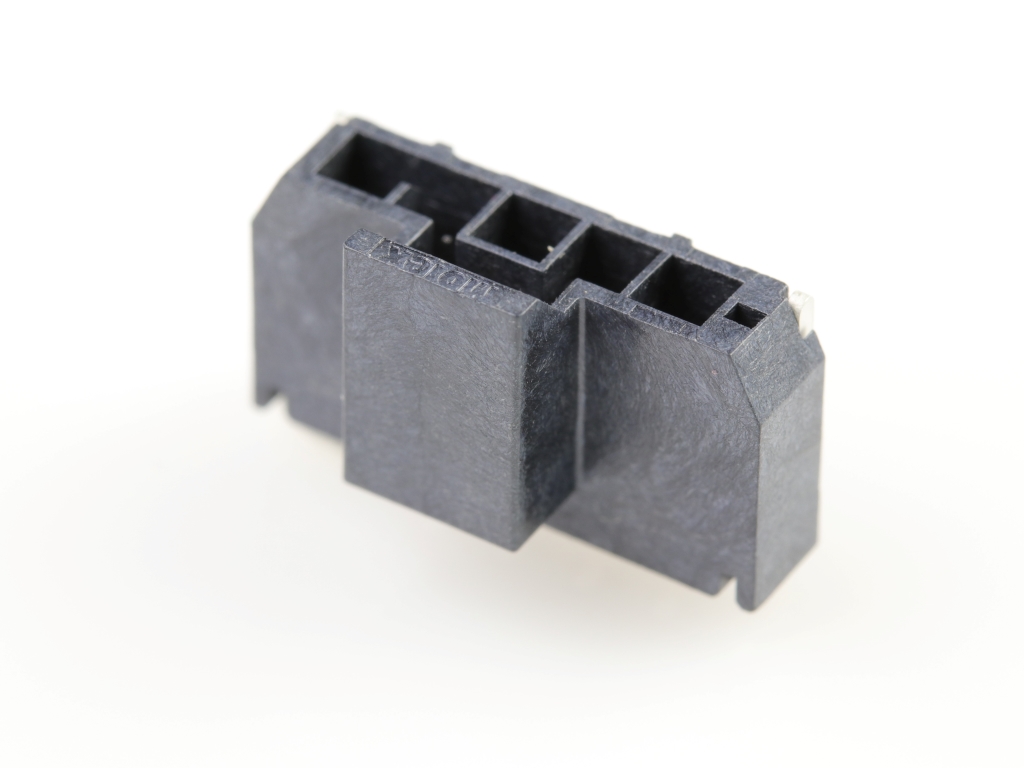

Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Single Row, 5 Circuits, 0.76µm Tin (Sn) Plating, Black, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105430-1105 |
Where to Buy
Prices starting from US$1.22
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.66
|
8,000
in stock
|
Buy Now |
|
TME
from US$1.35
|
8,000
in stock
|
Buy Now |
|
Farnell
from US$1.95
|
7,200
in stock
|
Buy Now |
|
element14
from US$2.21
|
107
in stock
|
Buy Now |
|
RS
from US$2.55
|
0
in stock
|
Buy Now |
|
Sager
from US$1.35
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.48
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.22
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 6.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.910/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
