1054302102 Nano-Fit by Molex

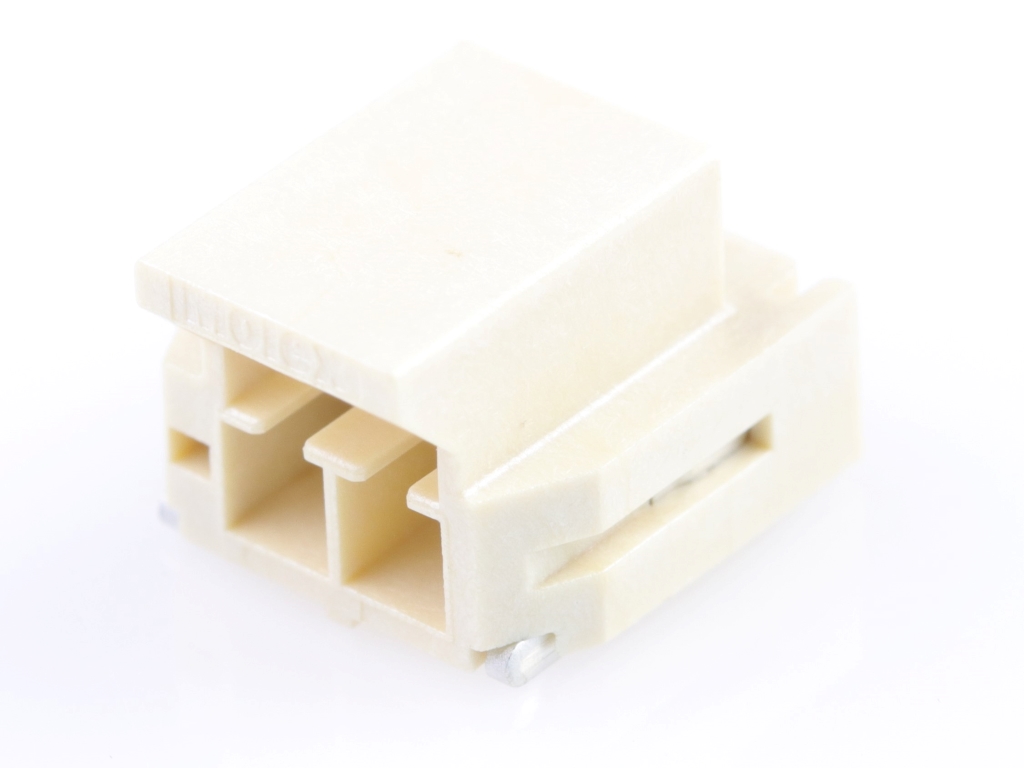

Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Single Row, 2 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105430-2102 |
Where to Buy
Prices starting from US$1.02
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.57
|
0
in stock
|
Buy Now |
|
element14
from US$1.23
|
0
in stock
|
Buy Now |
|
Sager
from US$1.13
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.02
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.22
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.41
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 6.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.570/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Nano-Fit Hdr Smt Ra Sgl 2Ckt Tin Wht Rohs Compliant: Yes |Molex 105430-2102 | Newark Electronics |
| NANO-FIT HDR SMT RA SGL 2CKT TIN WHT | element14 |
| Headers & Wire Housings NANO-FIT HDR 01X02P RA SN SMT | Sager |
| NANO-FIT HDR SMT RA SGL 2CKT IN WHT | Heilind Americas |
| NANO-FIT HDR 01X02P RA SN SMT | TTI Asia |
