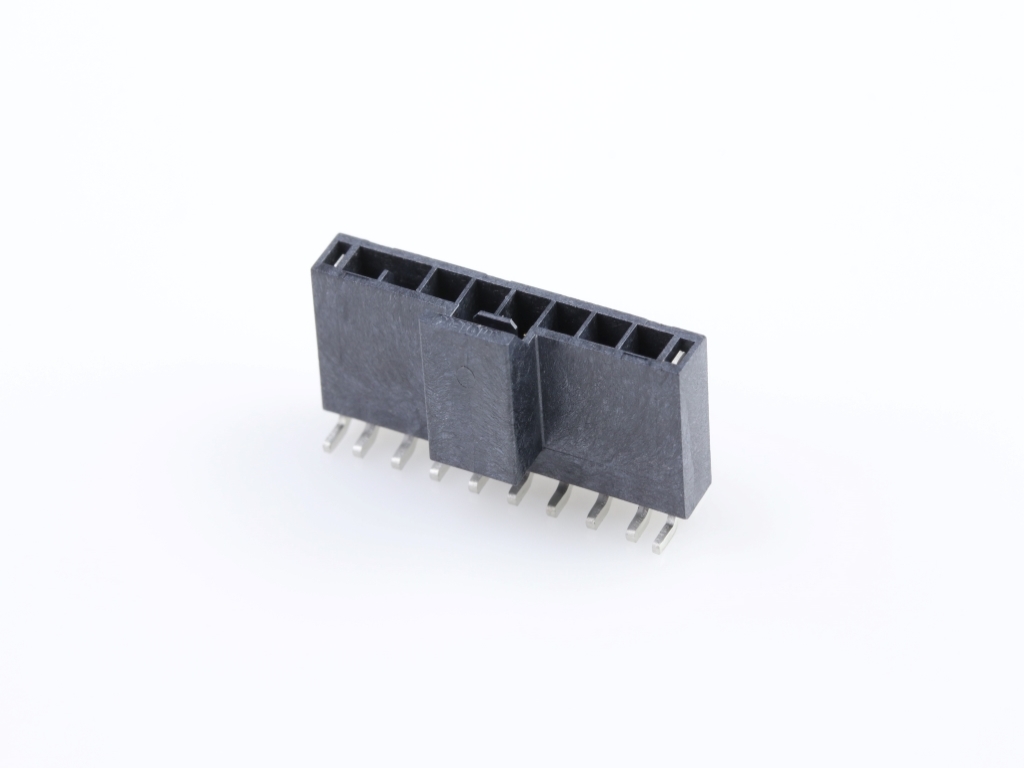

1054311108 Nano-Fit by Molex
Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Single Row, 8 Circuits, 0.76µm Tin (Sn) Plating, with Pick-and-Place Tape, Black, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105431-1108 |
Where to Buy
Prices starting from US$1.44
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.04
|
1,200
in stock
|
Buy Now |
|
TME
from US$1.53
|
1,200
in stock
|
Buy Now |
|
Farnell
from US$2.22
|
1,200
in stock
|
Buy Now |
|
RS
from US$2.72
|
0
in stock
|
Buy Now |
|
Sager
from US$1.59
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.44
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 6.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.290/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Robotic Placement | Vacuum Pick-Up Tape |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Nano-Fit Hdr Smt Vt Sgl 8Ckt Tin Blk Rohs Compliant: Yes |Molex 105431-1108 | Newark Electronics |
| Connector: wire-board | TME |
| PIN HEADERS | Farnell |
| Molex 105431-1108 Header | RS |
| Headers & Wire Housings NANO-FIT HDR 01X08P VT SN SMT | Sager |
| NANO-FIT HDR SMT VT SGL 8CKT IN BLK | Heilind Americas |
