1054550101 USB by Molex

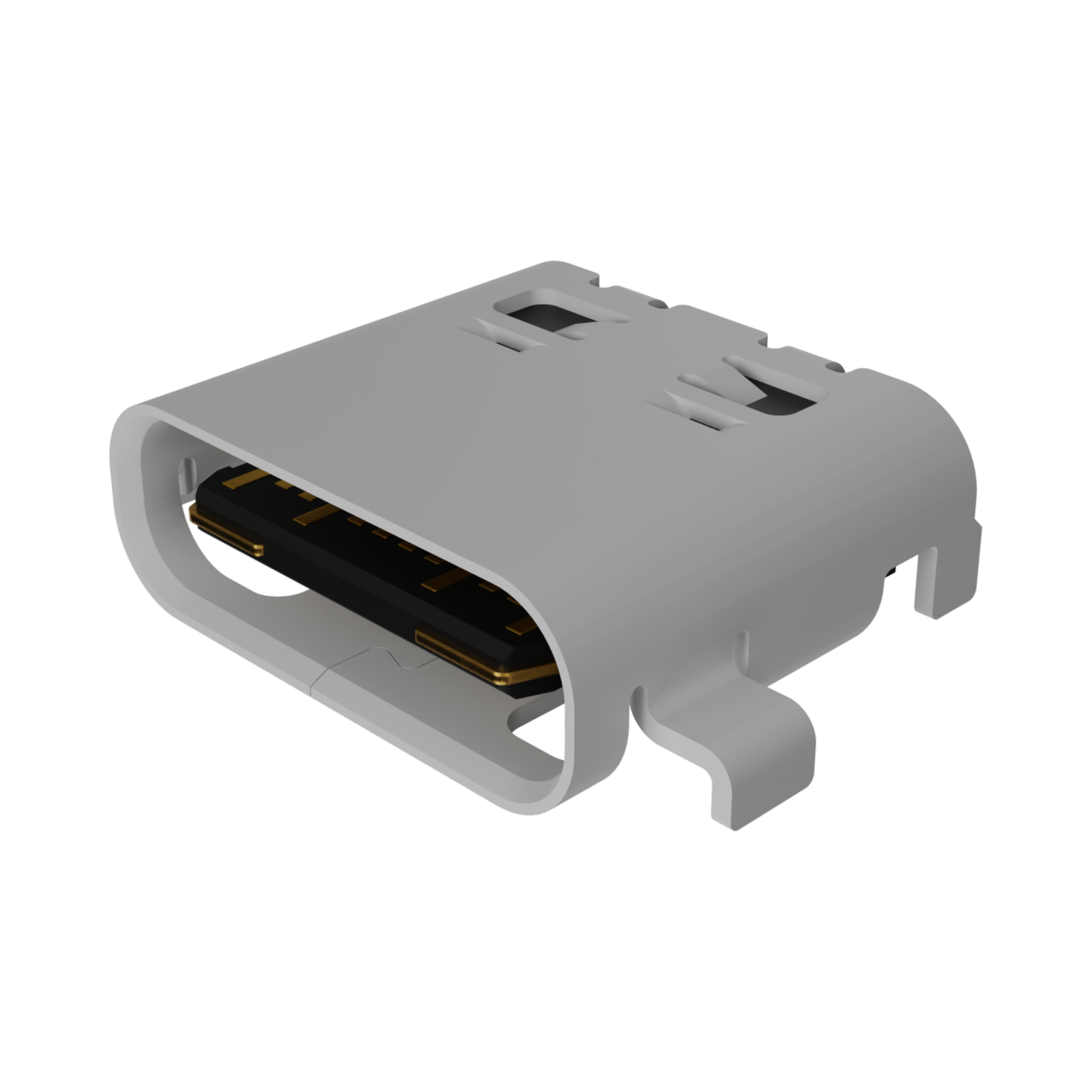

Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, Right-Angle, Mid-Mount, Surface Mount, Gold (Au) Flash over 0.75µm Palladium Nickel Plating, 0.70mm Solder Tab, Paper Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105455-0101 |
Where to Buy
Prices starting from US$0.98
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.49
|
19,500
in stock
|
Buy Now |
|
Newark Electronics
from US$1.55
|
18,200
in stock
|
Buy Now |
|
Farnell
from US$1.76
|
17,875
in stock
|
Buy Now |
|
Heilind Americas
from US$1.31
|
5,850
in stock
|
Buy Now |
|
TTI Americas
from US$1.08
|
5,200
in stock
|
Buy Now |
|
RS
from US$2.04
|
1,465
in stock
|
Buy Now |
|
Avnet America
from US$1.02
|
1,300
in stock
|
Buy Now |
|
Rutronik
from US$1.26
|
0
in stock
|
Buy Now |
|
TME
from US$1.52
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.18
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.13
|
0
in stock
|
Buy Now |
|
Sager
from US$1.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.24
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.25A,1.25A,5.0A, See Product Specification |
| Grounding To Panel | None |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V AC/DC |
Physical |
|
|---|---|
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Gender | Female |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Mid-Mount |
| Net Weight | 0.530/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Yes |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 0.60mm, 0.70mm, 0.80mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm (Au), 0.750µm (PdNi) |
| Plating Min Termination | 0.051µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -30° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
