1061153201 LC by Molex

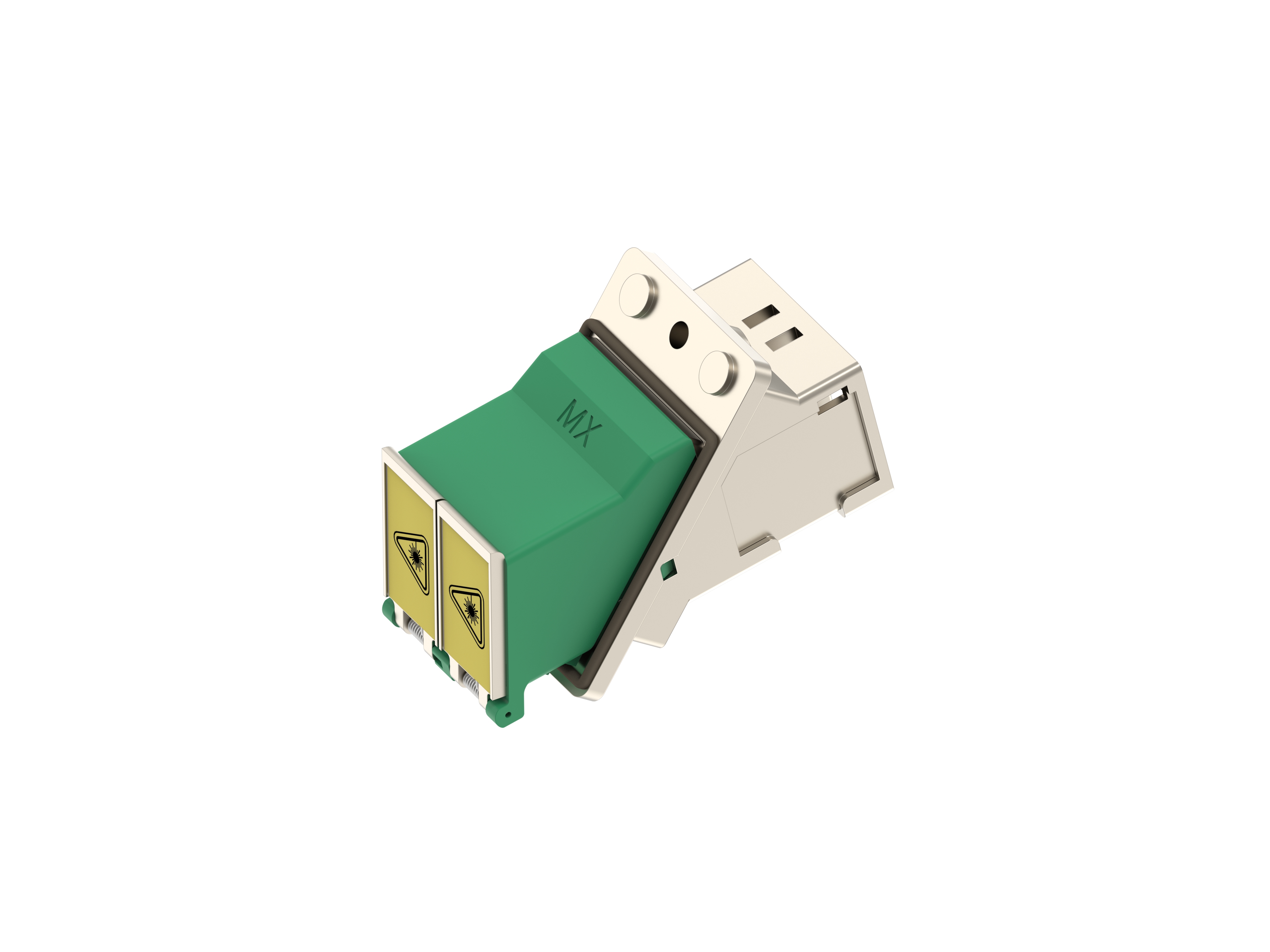

EMI LC Adapter, Angled, Duplex, Green Plastic Body, Zirconia (Zr) Alignment Sleeve, Screw Mount Style, Shutter One Side, Conductive Silicone Gasket
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
106115-3201,
861153201 |
Specifications
| Product Name | LC |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
| Shield Type | EMI Gasket |
Physical |
|
|---|---|
| Alignment Sleeve | Ceramic |
| Angled Physical Contact Apc | Yes |
| Color Resin | Green |
| Gender | Female-Female |
| Material Housing | Die-Cast |
| Mounting Style | Screws |
| Net Weight | 10.163/g |
| Orientation | 45° Angle |
| Panel Mount | With Flange |
| Ports | 2 |
| Shutter | One Side |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Lc Adapter (Emi) 45 Deg Screw Mount Grn |Molex 106115-3201 | Newark Electronics |
| Fiber Optic Connectors FIBER OPTICS | Sager |
| LC ADAPTER (EMI) 45 DEG S MOUNT GRN | Heilind Americas |
