10844020 MLX by Molex

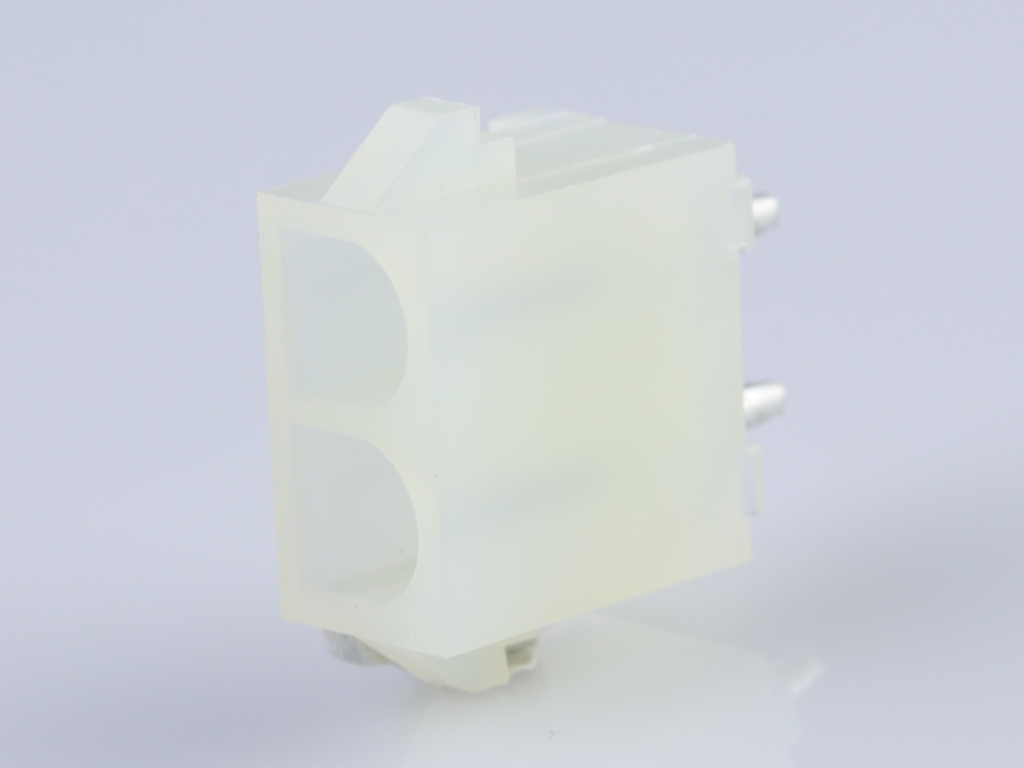

6.35mm Pitch MLX Power Connector Header, Vertical, 2 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-84-4020,
0010844020, A-42002-2A1A1 |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.27
|
35,533
in stock
|
Buy Now |
|
TTI Europe
from US$0.17
|
34,782
in stock
|
Buy Now |
|
Heilind Americas
from US$0.21
|
21,915
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.22
|
2,890
in stock
|
Buy Now |
|
Conrad
from US$0.47
|
1,985
in stock
|
Buy Now |
|
Newark Electronics
from US$0.25
|
1,112
in stock
|
Buy Now |
|
TME
from US$0.19
|
825
in stock
|
Buy Now |
|
RS
from US$0.36
|
426
in stock
|
Buy Now |
|
Offical Electronic
-
|
195
in stock
|
Buy Now |
|
Avnet America
from US$0.27
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.51
|
0
in stock
|
Buy Now |
|
element14
from US$0.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.19
|
0
in stock
|
Buy Now |
|
EME
from US$0.15
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A, 20.0A |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.333/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 4.27mm |
| Pitch Mating Interface | 6.35mm |
| Pitch Termination Interface | 6.35mm |
| Plating Min Mating | 3.560µm |
| Plating Min Termination | 3.560µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PIN HEADERS | Farnell |
| 2.13 MM MLX POWER HEADER 94V-2 | TTI Europe |
| .084 DIA ASSLY PIN AND SOCKET HDR 2CKT | Heilind Americas |
| MLX .084 HDR 01X02P VT MALE | TTI Americas |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 2 Rastermaß: 6.35 mm 10844020 1 St. Bulk | Conrad |
| .084 Dia Assly Pin & Socket Hdr Au 2Ckt Rohs Compliant: Yes |Molex 10-84-4020 | Newark Electronics |
| Connector: wire-board | TME |
| Molex 10-84-4020 PCB Header | RS |
| Pin Header, Power, 6.35 mm, 1 Rows, 2 Contacts, Through Hole Straight, MLX 42002 | Avnet America |
| CONN. | RS Americas |
| CONNECTOR, HEADER, 2POS, 1ROW, 6.35MM | element14 |
