10844040 MLX by Molex

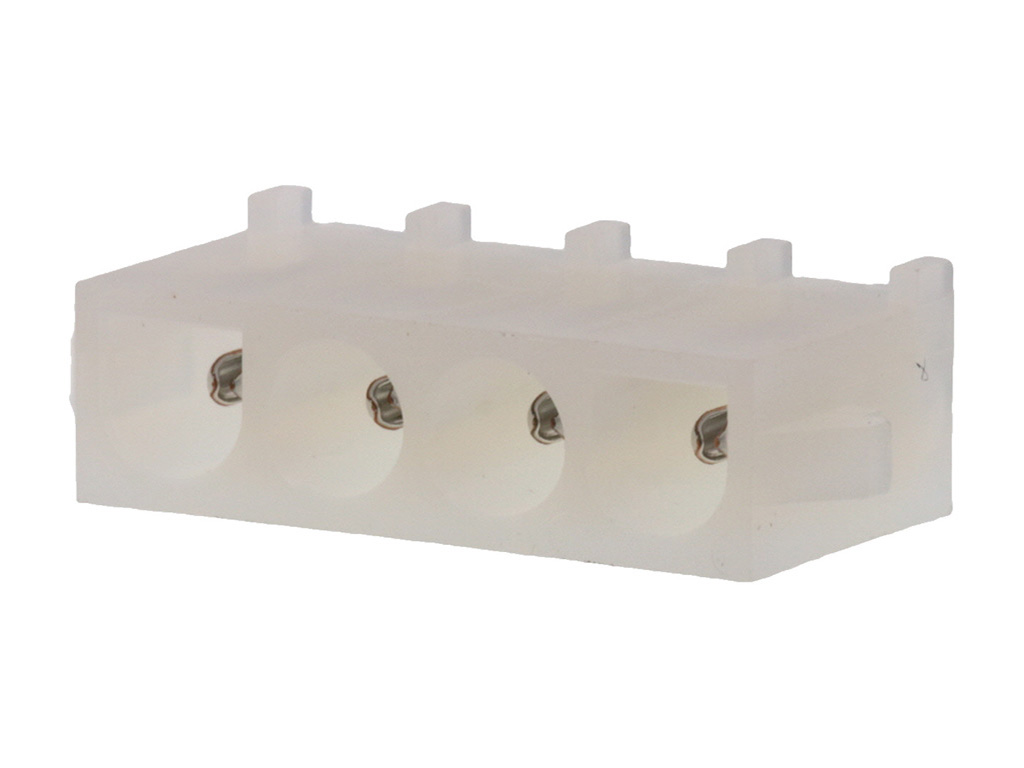

6.35mm Pitch MLX Power Connector Header, Vertical, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-84-4040,
0010844040, A-42002-4A1A1 |
Where to Buy
Prices starting from US$0.18
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.26
|
12,224
in stock
|
Buy Now |
|
Avnet America
from US$0.28
|
12,224
in stock
|
Buy Now |
|
Heilind Americas
from US$0.31
|
11,822
in stock
|
Buy Now |
|
TTI Americas
from US$0.38
|
7,963
in stock
|
Buy Now |
|
Conrad
from US$0.72
|
4,413
in stock
|
Buy Now |
|
Farnell
from US$0.49
|
3,972
in stock
|
Buy Now |
|
Sager
from US$0.36
|
740
in stock
|
Buy Now |
|
Avnet Abacus
-
|
17,400
in stock
|
Buy Now |
|
Offical Electronic
-
|
500
in stock
|
Buy Now |
|
Rutronik
from US$0.24
|
0
in stock
|
Buy Now |
|
RS
from US$0.50
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.70
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.28
|
0
in stock
|
Buy Now |
|
EME
from US$0.23
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A, 20.0A |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 2.472/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 4.27mm |
| Pitch Mating Interface | 6.35mm |
| Plating Min Termination | 3.560µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 084 Dia Assy Hdr 94V-2 Sn 4Ckt Rohs Compliant: Yes |Molex 10-84-4040 | Newark Electronics |
| Pin Header, Wire-to-Board, 6.35 mm, 1 Rows, 4 Contacts, Through Hole Straight, MLX 42002 Series | Avnet America |
| MLX .084 HDR 01X04P VT MALE | TTI Americas |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 4 Rastermaß: 6.35 mm 10844040 1 St. Bag | Conrad |
| CONN, HEADER, 4POS, 1ROW, 6.35MM | Farnell |
| Pin & Socket Connectors 084 Dia Assy Hdr 94V-2 Sn 4Ckt | Sager |
| 04P POWER CONNECTOR 2.13MM 180° | Rutronik |
| Molex 10-84-4040 PCB Header | RS |
| 084 DIA ASSY HDR 94V-2 SN 4CKT | RS Americas |
| 6.35 MM MLX POWER RECEPT 4CT | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10844040?
Additional datasheets, footprints and schematics for 10844040 are listed on our Part Details page. You can also find images and similar parts to 10844040 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10844040 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10844040 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10844040 fall under?
The 10844040 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10844040 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10844040 you can contact the distributor directly for product support, shipping queries etc.
Is the 10844040 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10844040 have stock available?
Authorised distributors including Newark Electronics, Avnet America, Heilind Americas, TTI Americas and Conrad have stock available or on a lead time for 10844040.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10844040 often in real-time on the comparison pages.
What if I can't find stock of 10844040?
You can fill out our help required form which you can use to request a quote for 10844040 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
