10844120 MLX by Molex

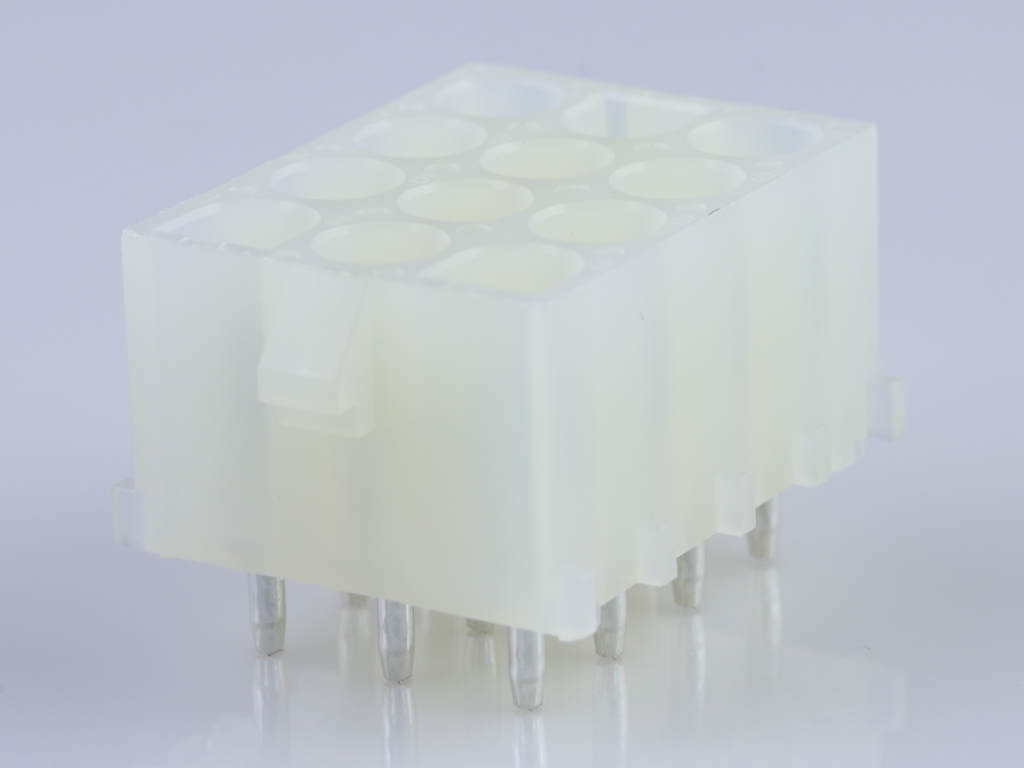

6.35mm Pitch MLX Power Connector Header, Vertical, 12 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-84-4120,
0010844120, A-42002-12A1A1 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.80
|
16,800
in stock
|
Buy Now |
|
Conrad
from US$1.52
|
2,429
in stock
|
Buy Now |
|
Farnell
from US$1.53
|
2,187
in stock
|
Buy Now |
|
TME
from US$0.74
|
2,150
in stock
|
Buy Now |
|
Heilind Americas
from US$1.02
|
538
in stock
|
Buy Now |
|
Newark Electronics
from US$1.64
|
50
in stock
|
Buy Now |
|
element14
from US$1.20
|
50
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
52
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.58
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.87
|
0
in stock
|
Buy Now |
|
EME
from US$0.77
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A, 20.0A |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 6.353/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 4.27mm |
| Pitch Mating Interface | 6.35mm |
| Pitch Termination Interface | 6.35mm |
| Plating Min Mating | 3.560µm |
| Plating Min Termination | 3.560µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 6.35MM PITCH MLX VERTICAL 12CI | TTI Europe |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 12 Rastermaß: 6.35 mm 10844120 1 St. Bulk | Conrad |
| CONN, HEADER, 12POS, 3ROW, 6.35MM | Farnell |
| Connector: wire-board | TME |
| 084 DIA ASSY HDR HSG PIN 94V- SN 12CKT | Heilind Americas |
| 084 Dia Assy Hdr Hsg Pin 94V-2 Sn 12Ckt Rohs Compliant: Yes |Molex 10-84-4120 | Newark Electronics |
| 084 DIA ASSY HDR HSG PIN 94V-2 SN 12CKT | element14 |
| MLX .084 HDR 03X04P VT MALE | TTI Asia |
