10845120 MLX by Molex

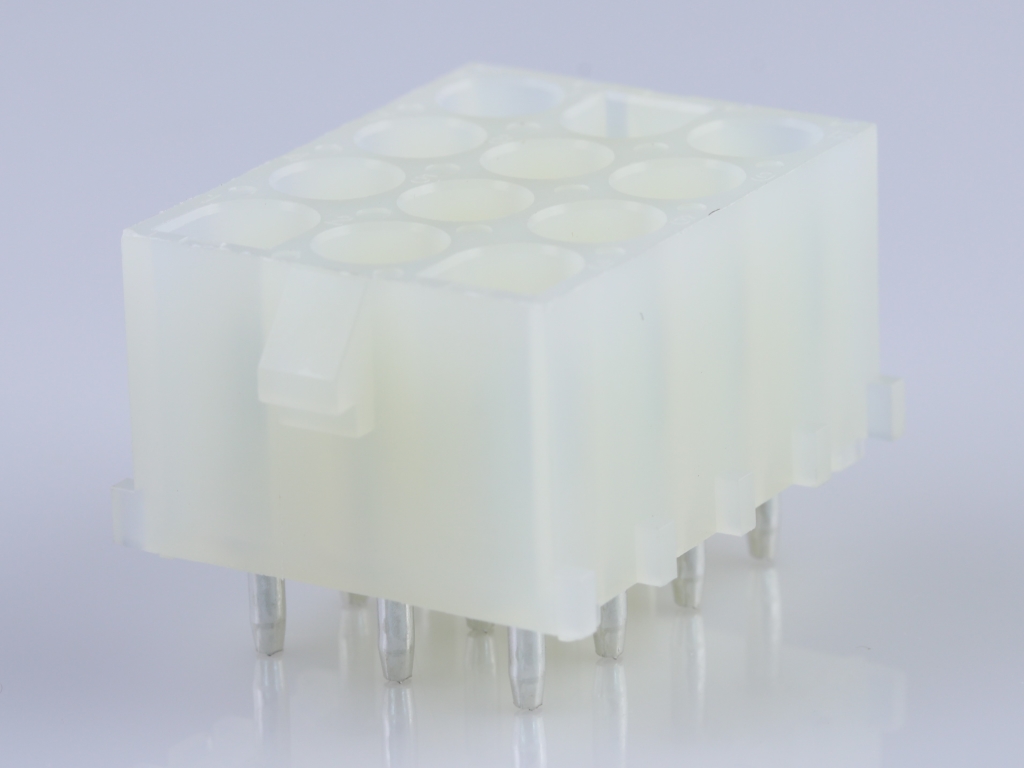

6.35mm Pitch MLX Power Connector Header, Vertical, 12 Circuits, Polyester 94V-0, Tin (Sn) Plating, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-84-5120,
0010845120, 42002-12C1A1 |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A, 20.0A |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Mounting Style | Through Hole |
| Net Weight | 7.072/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 4.27mm |
| Pitch Mating Interface | 6.35mm |
| Pitch Termination Interface | 6.35mm |
| Plating Min Mating | 3.560µm |
| Plating Min Termination | 3.560µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 10-84-5120 PCB Header | RS |
| Header Connector, pcb Mount, recept,12 Contacts, pin,0.25 Pitch, pc Tail Terminal, polarized Lck |Molex 10-84-5120 | Newark Electronics |
| 084 DIA ASSY HDR HSG PIN 94V- SN 12CKT | Heilind Americas |
