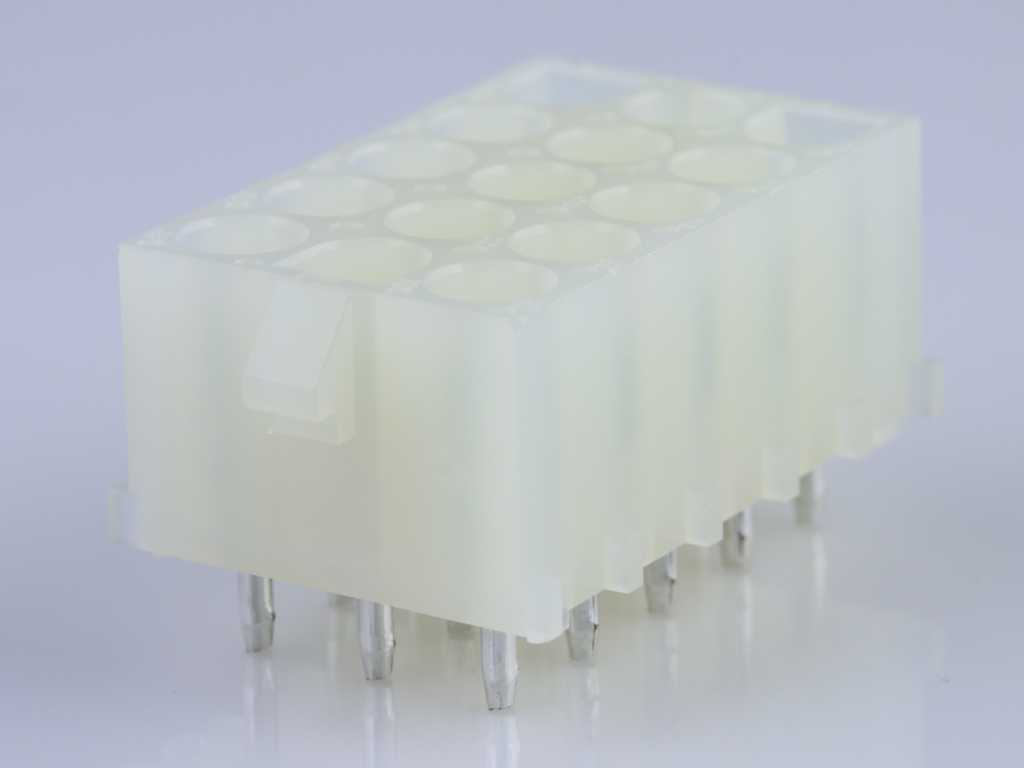

10845151 MLX by Molex
6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PCT Polyester, Tin (Sn), White, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-84-5151,
0010845151, 42002-15C2A1 |
Where to Buy
Prices starting from US$1.49
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.92
|
915
in stock
|
Buy Now |
|
TME
from US$3.30
|
915
in stock
|
Buy Now |
|
RS
from US$4.92
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.80
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.99
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.54
|
0
in stock
|
Buy Now |
|
EME
from US$3.34
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A, 20.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 9.180/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pc Tail Length | 4.30mm |
| Pitch Mating Interface | 6.35mm |
| Plating Min Termination | 3.560µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, plug,15 Contacts, skt,0.25 Pitch, pc Tail Terminal, polarized Lck |Molex 10-84-5151 | Newark Electronics |
| Connector: wire-board | TME |
| Molex 10-84-5151 PCB Header | RS |
| 084 DIA ASSY HDR HSG SKT 94V-0 SN 15CKT | RS Americas |
| 084 DIA ASSY HDR HSG SKT 94V- SN 15CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10845151?
Additional datasheets, footprints and schematics for 10845151 are listed on our Part Details page. You can also find images and similar parts to 10845151 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10845151 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10845151 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10845151 fall under?
The 10845151 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10845151 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10845151 you can contact the distributor directly for product support, shipping queries etc.
Is the 10845151 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10845151 have stock available?
Authorised distributors including Newark Electronics, TME, RS, Avnet America and RS Americas have stock available or on a lead time for 10845151.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10845151 often in real-time on the comparison pages.
What if I can't find stock of 10845151?
You can fill out our help required form which you can use to request a quote for 10845151 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
