10883101 C-Grid by Molex

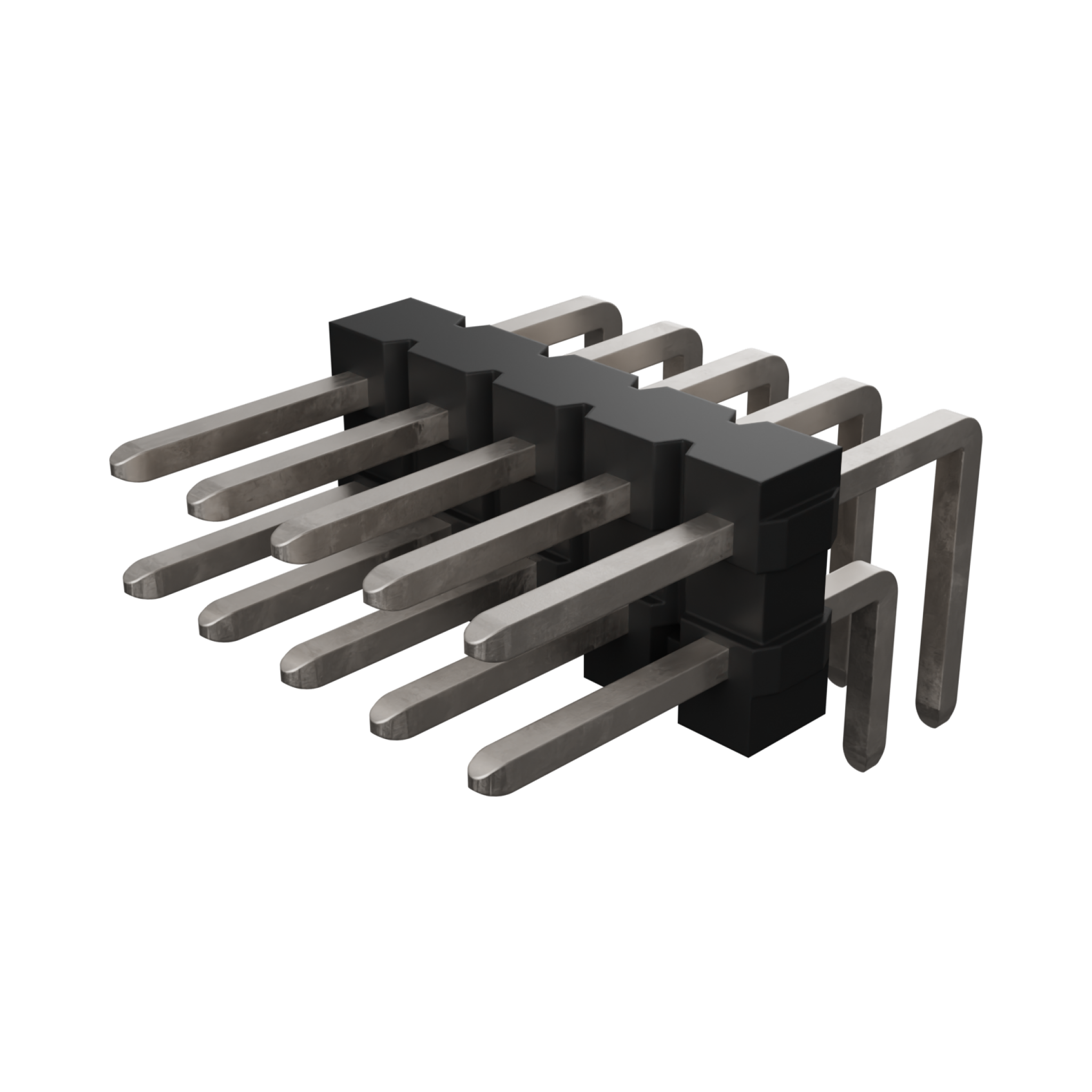

C-Grid Breakaway Header, 2.54mm Pitch, High Profile, Dual Row, Right Angle, 10 Circuits, 6.10mm Mating Pin Length, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-88-3101,
0010883101, A-70216-0082 |
Where to Buy
Prices starting from US$0.80
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.13
|
7,429
in stock
|
Buy Now |
|
Conrad
from US$1.86
|
7,429
in stock
|
Buy Now |
|
Farnell
from US$1.38
|
6,720
in stock
|
Buy Now |
|
Newark Electronics
from US$1.31
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.82
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.06
|
0
in stock
|
Buy Now |
|
Sager
from US$1.16
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.99
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.80
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.876/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 2.54mm |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: pin strips | TME |
| Molex Einbau-Stiftleiste (Standard) 10883101 1 St. Tube | Conrad |
| PIN HEADERS | Farnell |
| Header Connector, pcb Mount, recept,10 Contacts, pin,0.1 Pitch, r Angle Pc Tail Terminal |Molex 10-88-3101 | Newark Electronics |
| CGRID RA BKWY HPRO HDR TIN 10CKT | RS Americas |
| HDR RA 2X05P .1 240/110 SN | TTI Americas |
| Headers & Wire Housings CGrid RA Bkwy HPro Hdr Tin 10Ckt | Sager |
| CGRID R/A BKWY HPRO HDR TIN 1 CKT | Heilind Americas |
