10883301 C-Grid by Molex

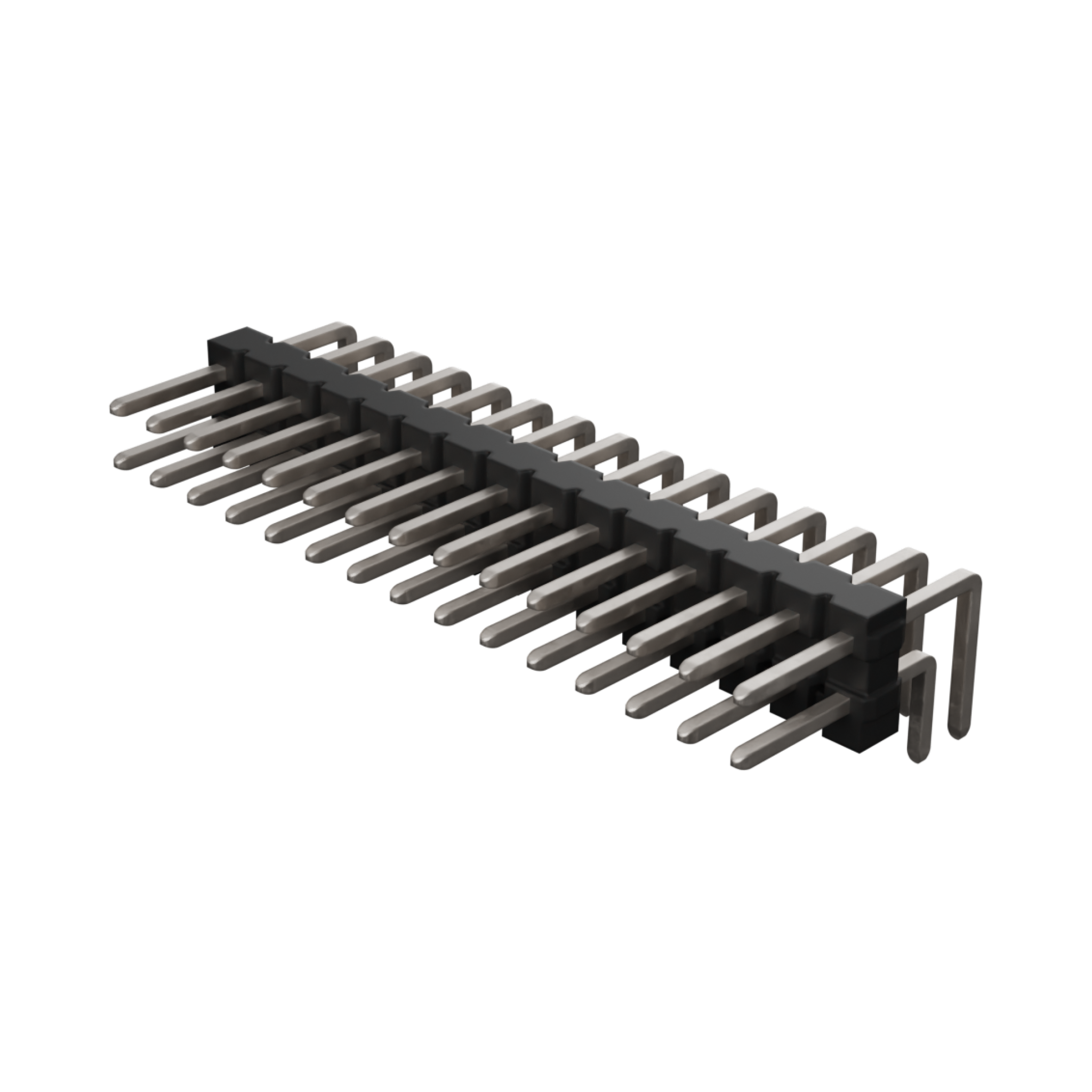

C-Grid Breakaway Header, 2.54mm Pitch, High Profile, Dual Row, Right Angle, 30 Circuits, 6.10mm Mating Pin Length, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-88-3301,
0010883301, 70216-0092 |
Where to Buy
Prices starting from US$2.30
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.77
|
1,580
in stock
|
Buy Now |
|
Conrad
from US$4.78
|
1,580
in stock
|
Buy Now |
|
Farnell
from US$4.80
|
1,422
in stock
|
Buy Now |
|
Avnet America
from US$3.53
|
0
in stock
|
Buy Now |
|
RS Americas
from US$5.24
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$4.68
|
0
in stock
|
Buy Now |
|
Sager
from US$4.61
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.30
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Mounting Style | Through Hole |
| Net Weight | 2.789/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, recept,30 Contacts, pin,0.1 Pitch, r Angle Pc Tail Terminal |Molex 10-88-3301 | Newark Electronics |
| Molex Einbau-Stiftleiste (Standard) 10883301 1 St. Tube | Conrad |
| CGRID RA BKWY HPRO HDR TIN 30CKT | Farnell |
| HDR RA 2X15P .1 240/110 SN | TTI Americas |
| Headers & Wire Housings CGrid RA Bkwy HPro Hdr Tin 30Ckt | Sager |
| CGRID R/A BKWY HPRO HDR TIN 30 CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10883301?
Additional datasheets, footprints and schematics for 10883301 are listed on our Part Details page. You can also find images and similar parts to 10883301 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10883301 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10883301 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10883301 fall under?
The 10883301 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10883301 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10883301 you can contact the distributor directly for product support, shipping queries etc.
Is the 10883301 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10883301 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, Avnet America and RS Americas have stock available or on a lead time for 10883301.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10883301 often in real-time on the comparison pages.
What if I can't find stock of 10883301?
You can fill out our help required form which you can use to request a quote for 10883301 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
