10894246 C-Grid by Molex

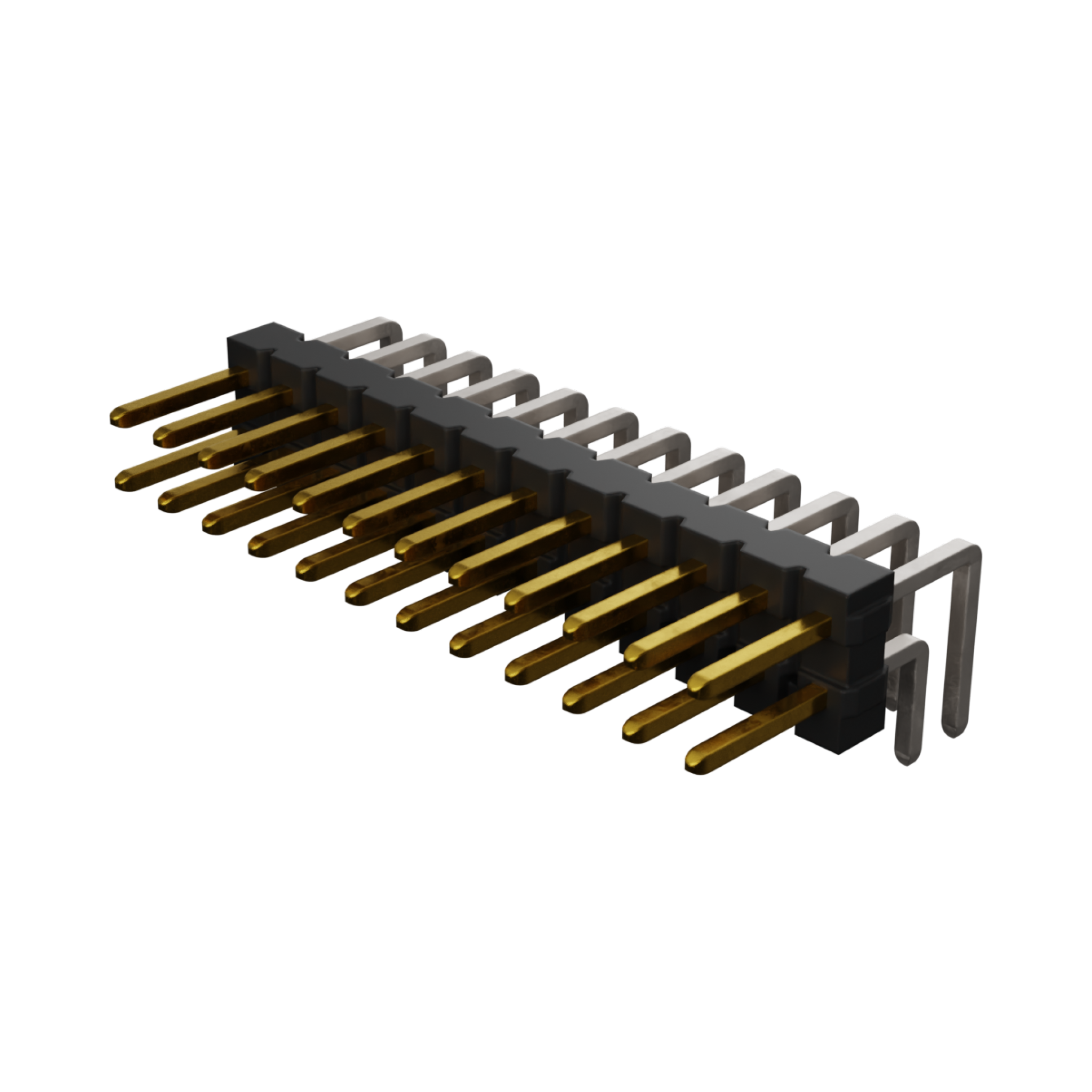

C-Grid Breakaway Header, 2.54mm Pitch, High Profile, Dual Row, Right-Angle, 24 Circuits, 6.10mm Mating Pin Length, 0.76µm Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-89-4246,
0010894246, 70216-0401 |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.002/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 2.54mm |
| Plating Min Mating | 0.760µm |
| Plating Min Termination | 1.910µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
