10894302 C-Grid by Molex

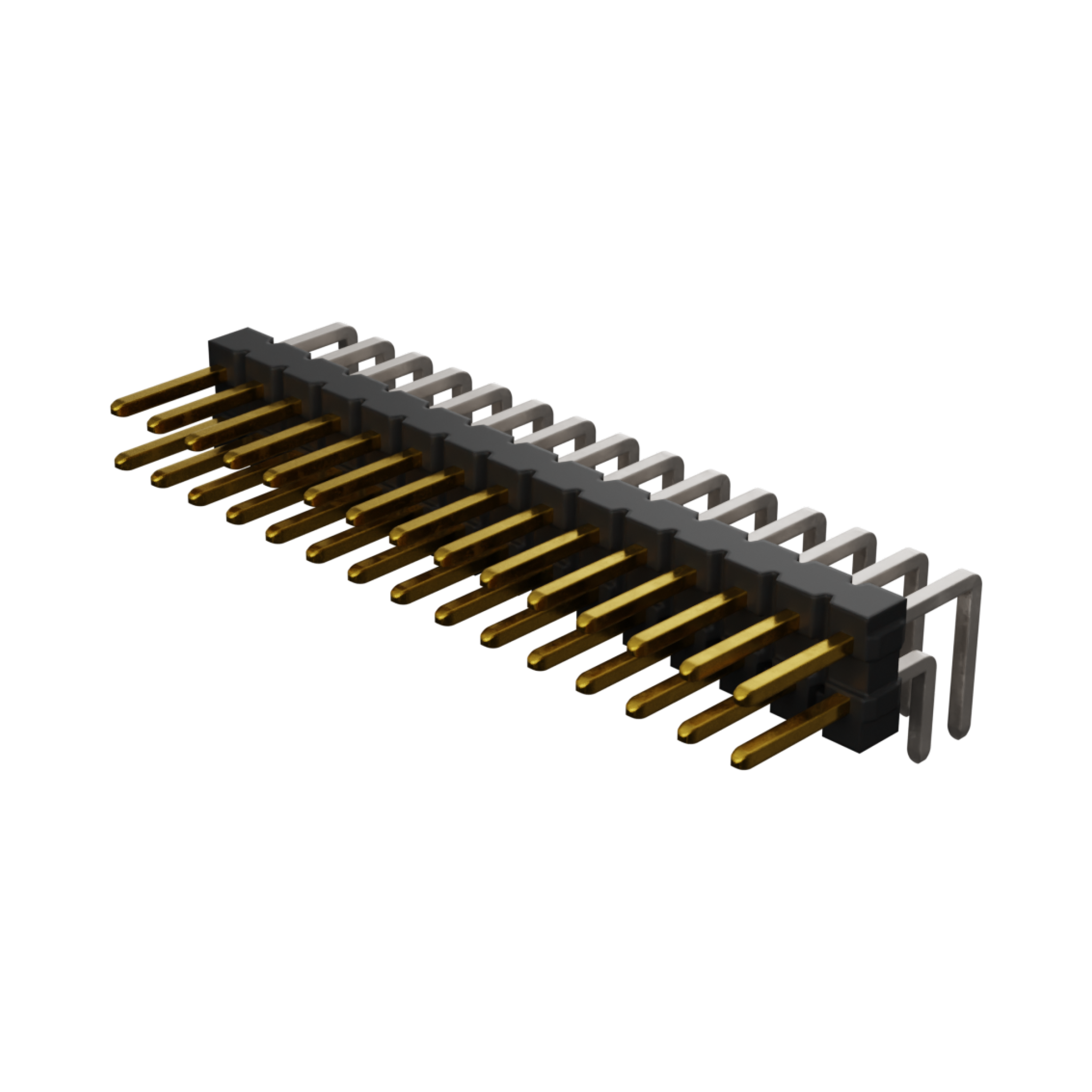

C-Grid Breakaway Header, 2.54mm Pitch, High Profile, Dual Row, Right-Angle, 30 Circuits, 6.10mm Mating Pin Length, 0.38µm Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-89-4302,
0010894302, A-70216-0248 |
Where to Buy
Prices starting from US$3.38
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$7.74
|
560
in stock
|
Buy Now |
|
TME
from US$4.21
|
560
in stock
|
Buy Now |
|
Conrad
from US$5.77
|
560
in stock
|
Buy Now |
|
Farnell
from US$6.39
|
560
in stock
|
Buy Now |
|
Avnet America
from US$6.89
|
0
in stock
|
Buy Now |
|
RS Americas
from US$7.18
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$6.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.38
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.609/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 2.54mm |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 1.910µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, recept,30 Contacts, pin,0.1 Pitch, r Angle Pc Tail Terminal Rohs Compliant: Yes |Molex 10-89-4302 | Newark Electronics |
| Connector: pin strips | TME |
| Molex Stiftleiste (Standard) Anzahl Reihen: 2 10894302 1 St. Tube | Conrad |
| PIN HEADERS | Farnell |
| CGRID R/A BKWY HPRO HDR 15 SAU 30CKT | RS Americas |
| HDR RA 2X15P .1 240/110 15AU | TTI Americas |
| CGRID R/A BKWY HPRO HDR 15 SA 30CKT | Heilind Americas |
