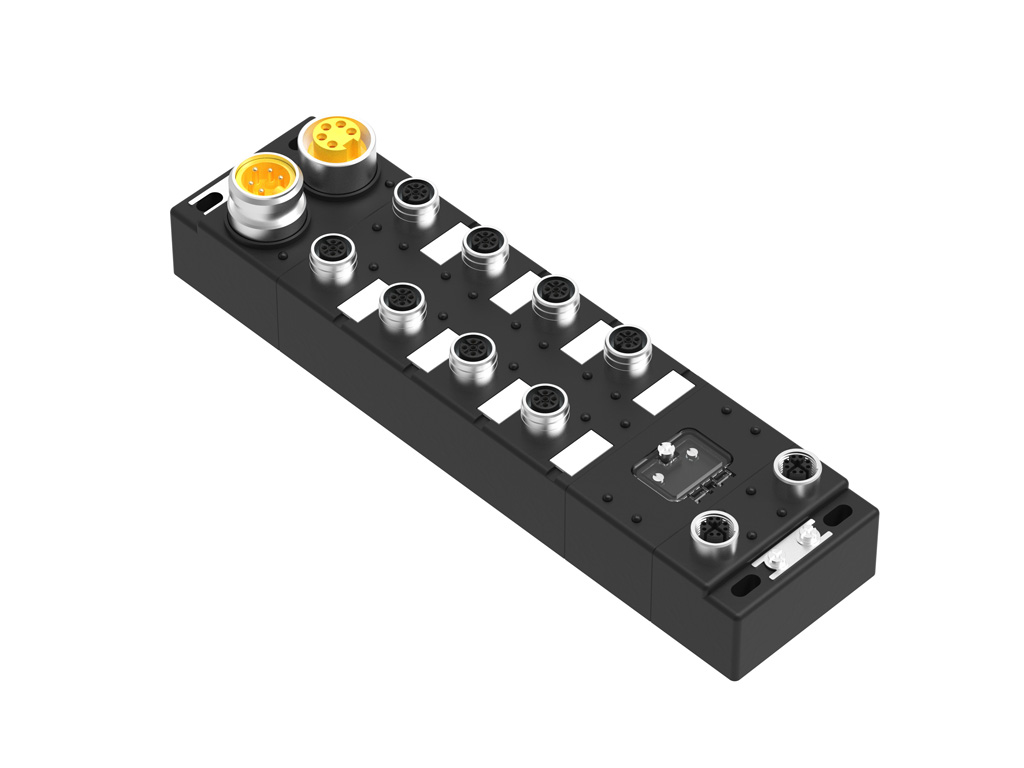

1120955115 HarshIO PROFINET IO by Molex
Brad HarshIO Digital Module for PROFINET, Classic 60mm, IP67, 8 ports M12, 16 User Configurable Inputs/Outputs, PNP, 5 Pole Power
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
112095-5115,
TCDEP-8YYX-D1U-01 |
Where to Buy
Prices starting from US$488.47
Specifications
| Product Name | HarshIO PROFINET IO |
|---|---|
| Application | Filling and Packaging Machines, Machine Tool Industry, Material Handling Systems |
Electrical |
|
|---|---|
| Current Maximum Output | 2.0A per Channel |
| Emc | IEC 61000-6-2 |
| Input Delay | 5 ms |
| Input Device Supply | 140 mA per port at 25°C |
| Input Type | PNP or Dry Contact |
Physical |
|
|---|---|
| Bus Input | 4-pole Ultra-Lock (M12), D-Coded, Female |
| Bus Output | 4-pole Ultra-Lock (M12), D-Coded, Female |
| Format | Classic (60mm) |
| Housing Width | 60.00mm |
| Io Connector | 5-pole Ultra-Lock (M12), A-Coded, Female |
| Io Ports | 8x M12 |
| Io Signal Mix | 16 Input / Output Configurable |
| Mechanical Shock | 10G, 11ms, 3 AXIS |
| Power Input | 5-pole Mini-Change, Male |
| Power Output | 5-pole Mini-Change, Female |
| Temperature Range Operating | -25° to +70°C |
| Vibration | IEC 60068-2-6 |
Last 6 months Inventory & Pricing History
112095-5115 BRAD Parts by Molex
POWER DISTRIBUTION BOX 8PORT M12
| Status: | Unknown |
|---|---|
| Series: | Harsh IO 112095 Series |
| RoHS: | Unknown |
Specifications
| Cable Length | - |
|---|---|
| No. of Ports | 8Ports |
| Product Range | Harsh IO 112095 Series |
| SVHC | No SVHC (27-Jun-2018) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1120955115 Sensor/Aktorbox passiv 1 St. | Conrad |
| SENSOR DISTRIBUTION BOX, M12-5P, 8PORT | Farnell |
| Sensor Distribution Box, M12-5P, 8Port | Newark Electronics |
| Sensor Distribution Box, 7/8" Connector - 5 Pole, M12 Connector - 5 Pole, 8 Ports, 112095 Series" | Avnet America |
| I/O Modules BRAD HARSH IO PROFINET MODULE | Sager |
