1200270090 Nano-Change (M8) by Molex

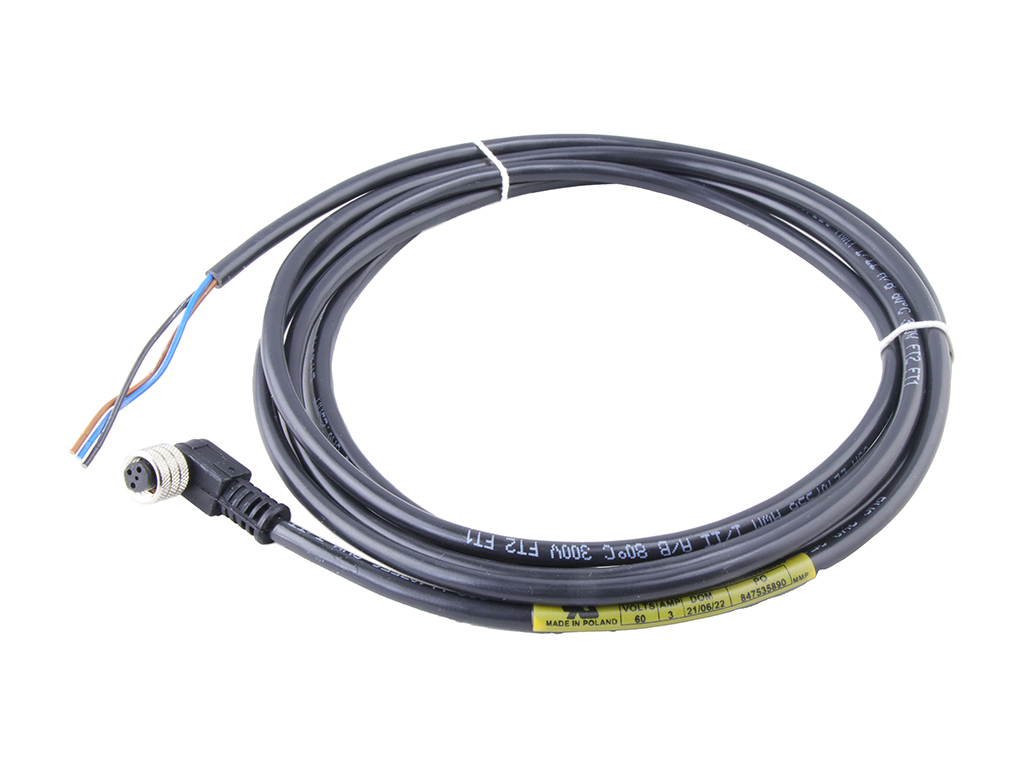

Nano-Change (M8) Single-Ended Cordset with Knurled Hexnut, 3 Poles, A-Coded, Female (90°) to Pigtail, 0.25mm² Black PVC Cable, 2.0m (6.56') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120027-0090,
403001E02M020 |
Where to Buy
Prices starting from US$5.71
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$5.71
|
329
in stock
|
Buy Now |
|
Newark Electronics
from US$15.39
|
48
in stock
|
Buy Now |
|
element14
from US$9.42
|
48
in stock
|
Buy Now |
|
Farnell
from US$6.76
|
48
in stock
|
Buy Now |
|
TME
from US$6.32
|
22
in stock
|
Buy Now |
|
Sager
from US$9.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$9.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Change (M8) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 60V AC / 75V DC |
Physical |
|
|---|---|
| Cable Diameter | 4.70mm (.185") |
| Cable Length | 2.0m (6.56') |
| Color Cable Jacket | Black |
| Connector End A | Nano-Change (M8) |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 66.200/g |
| Orientation | 90° to Pigtail |
| Poles | 3 |
| Temperature Range Operating | -25° to +80°C |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
120027-0090 BRAD Parts by Molex
SENSOR CORD 3P M8 RCPT-FREE END 2M
| Status: | Unknown |
|---|---|
| Series: | 120027 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M8 Sensor Right Angle 3 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 2m |
| Cable Length - Imperial | 6.6ft |
| Product Range | 120027 Series |
| SVHC | No SVHC (27-Jun-2018) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1200270090 Sensor-/Aktor-Steckverbinder, konfektioniert Buchse 2.00 m Polzahl Sensoren: 3 1 St. | Conrad |
| Sensor Cord, 3P M8 Rcpt-Free End, 2M | Newark Electronics |
| SENSOR CORD, 3P M8 RCPT-FREE END, 2M | element14 |
| Connector: M8 | TME |
| Sensor Cables / Actuator Cables NANO-CHANGE M8 SNGLEND CORDSET | Sager |
| 403001E02M020 | Heilind Americas |
