1200270093 Nano-Change (M8) by Molex

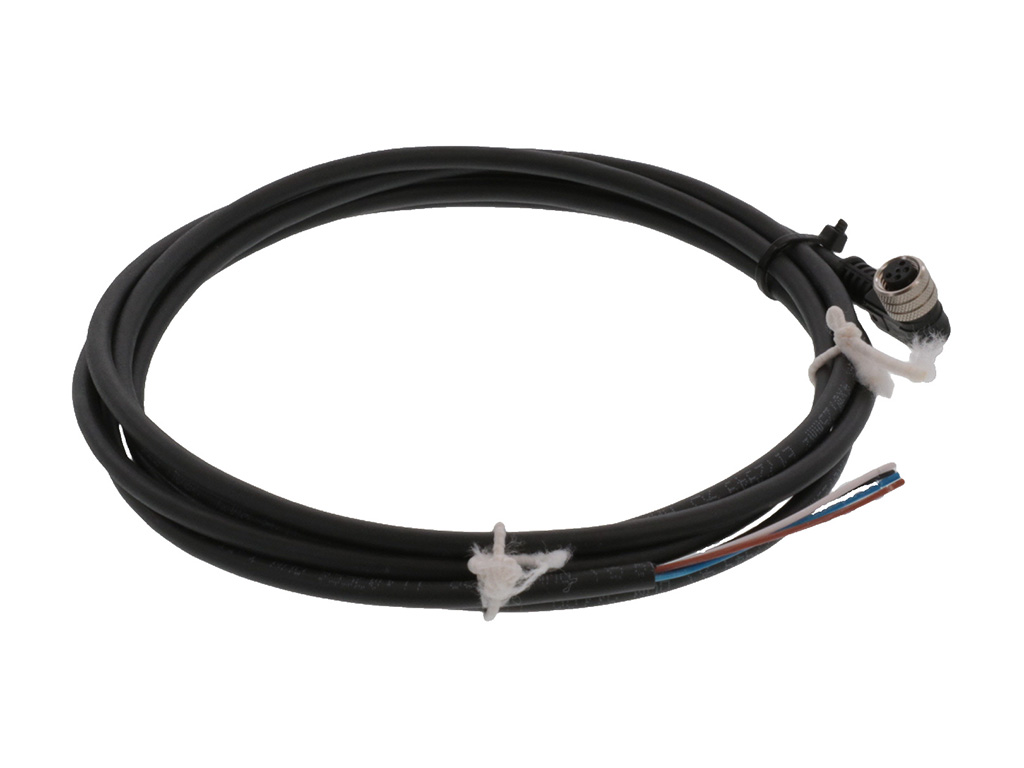

Nano-Change (M8) Single-Ended Cordset with Knurled Hexnut, 3 Poles, A-Coded, Female (90°) to Pigtail, 0.25mm² Black PVC Cable, 10.0m (32.81') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120027-0093,
403001E02M100 |
Where to Buy
Prices starting from US$12.24
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$12.24
|
136
in stock
|
Buy Now |
|
Farnell
from US$37.93
|
123
in stock
|
Buy Now |
|
RS
from US$228.17
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$30.48
|
0
in stock
|
Buy Now |
|
TME
from US$15.69
|
0
in stock
|
Buy Now |
|
element14
from US$28.81
|
0
in stock
|
Buy Now |
|
Sager
from US$19.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$20.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$12.89
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Change (M8) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 60V AC / 75V DC |
Physical |
|
|---|---|
| Cable Diameter | 4.70mm (.185") |
| Cable Length | 10.0m (32.81') |
| Color Cable Jacket | Black |
| Connector End A | Nano-Change (M8) |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 292.200/g |
| Orientation | 90° to Pigtail |
| Poles | 3 |
| Temperature Range Operating | -25° to +80°C |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
120027-0093 Sensors & Transducers by Molex
LEAD 3P 90DEG FEMALE M8 10M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M8 Sensor Right Angle 3 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 10m |
| Cable Length - Imperial | 32.81ft |
| Product Range | - |
| Accessory Type | Brad Nano-Change M8 Cordset |
| Cable Length | 10m |
| For Use With | 8mm Proximity Switches Specialty Sensors and Industrial Automation |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1200270093 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| SENSOR CORD, 3P M8 RCPT-FREE END, 10M | Farnell |
| Molex 1200270093 Cordset | RS |
| Sensor Cable, Micro Change, M8 Sensor Right Angle 3 Position Receptacle, Free/Stripped End, 10 M Rohs Compliant: Yes |Molex 120027-0093 | Newark Electronics |
| Connector: M8 | TME |
| LEAD, 3P, 90DEG, FEMALE, M8, 10M | element14 |
| Sensor Cables / Actuator Cables NC-3P-FE-90-10M-PVC (NUT) | Sager |
| NC-3P-FE-90-10M-PVC (NUT) 403001E02M100 | Heilind Americas |
