1200270153 Nano-Change (M8) by Molex

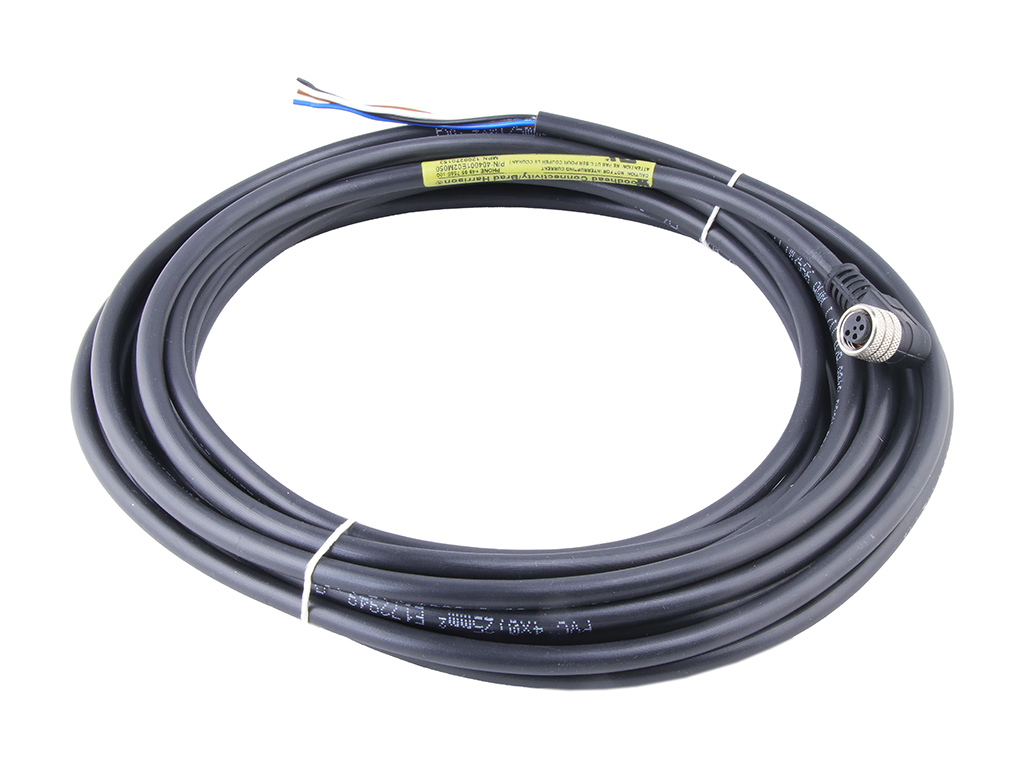

Nano-Change (M8) Single-Ended Cordset with Knurled Hexnut, 4 Poles, A-Coded, Female (90°) to Pigtail, 0.25mm² Black PVC Cable, 5.0m (16.40') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120027-0153,
404001E02M050 |
Where to Buy
Prices starting from US$10.05
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$13.07
|
7
in stock
|
Buy Now |
|
Newark Electronics
from US$24.17
|
3
in stock
|
Buy Now |
|
Farnell
from US$31.68
|
3
in stock
|
Buy Now |
|
Avnet America
from US$16.86
|
0
in stock
|
Buy Now |
|
RS Americas
from US$25.82
|
0
in stock
|
Buy Now |
|
element14
from US$24.59
|
0
in stock
|
Buy Now |
|
Conrad
from US$10.05
|
0
in stock
|
Buy Now |
|
Sager
from US$17.36
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Change (M8) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 60V AC / 75V DC |
Physical |
|
|---|---|
| Cable Diameter | 5.08mm (.200") |
| Cable Length | 5.0m (16.40') |
| Color Cable Jacket | Black |
| Connector End A | Nano-Change (M8) |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 182.900/g |
| Orientation | 90° to Pigtail |
| Poles | 4 |
| Temperature Range Operating | -25° to +80°C |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
120027-0153 Sensors & Transducers by Molex
LEAD M8 R/A 4POLE FEMALE PVC 5M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M8 Sensor Right Angle 4 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 5m |
| Cable Length - Imperial | 16.4ft |
| Product Range | - |
| Accessory Type | Sensor Lead |
| Cable Length | 5m |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: M8 | TME |
| Nc-4P-Fe-90-5M-Pvc |Molex 1200270153 | Newark Electronics |
| SENSOR CORD, 4P R/A M8 RCPT-FREE END, 5M | Farnell |
| Sensor Cable, BRAD Micro Change, 90? M8 Receptacle, Free End, 4 Positions, 5 m, 16.4 ft | Avnet America |
| NC-4P-FE-90-5M-PVC | RS Americas |
| LEAD, M8, R/A, 4POLE, FEMALE, PVC, 5M | element14 |
| Molex 1200270153 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables NanoChg SE Crdst 4P Fem90D/Pgtl 5m | Sager |
