1200651555 Micro-Change (M12) by Molex

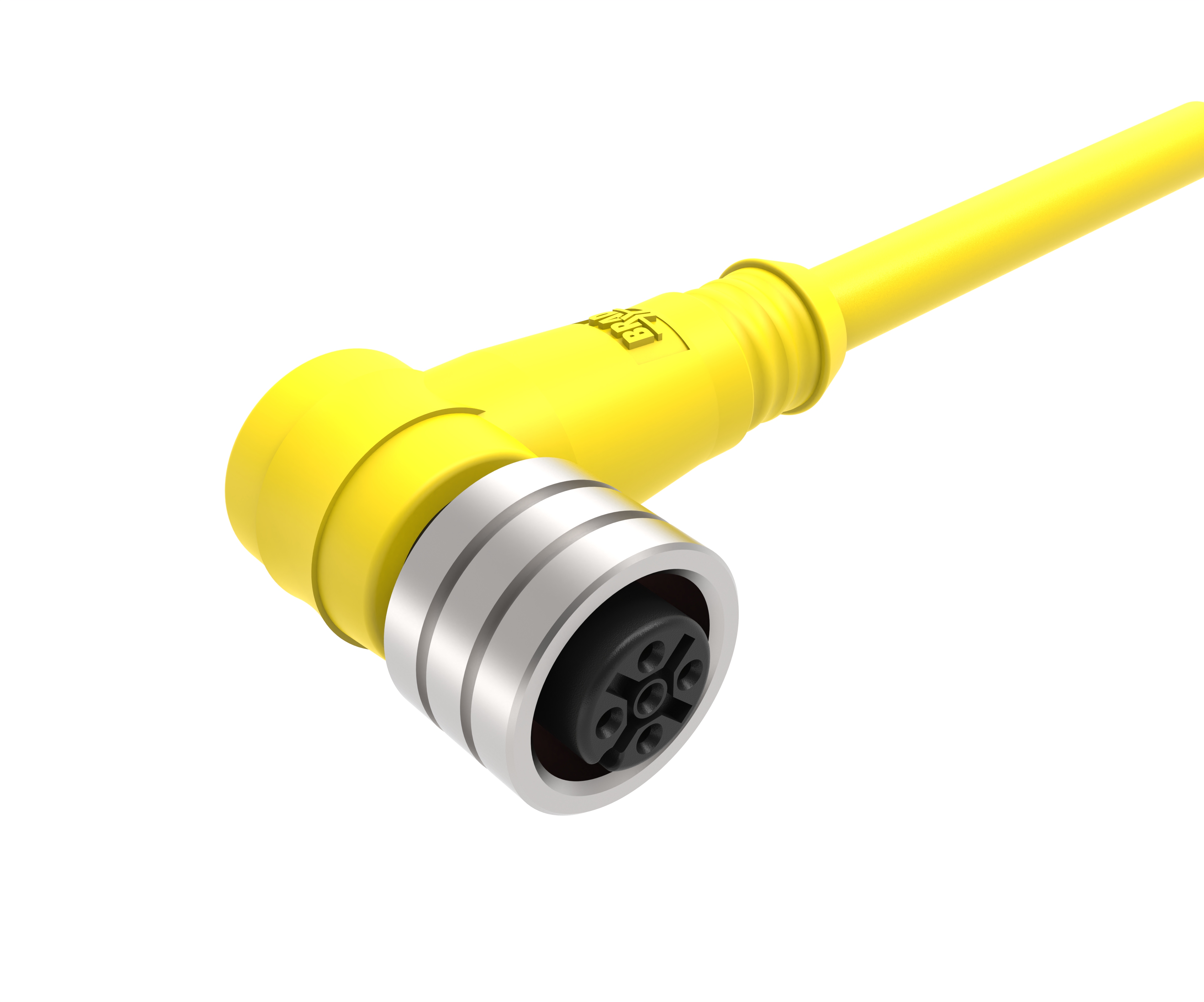

Micro-Change (M12) Single-Ended Cordset, 4 Poles, A-Coded, Female (90°) to Pigtail, 22 AWG, PVC Cable, 4.0m (13.12') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120065-1555,
804001A09M040 |
Where to Buy
Prices starting from US$24.16
Specifications
| Product Name | Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 5.33mm (.210") |
| Cable Length | 4.0m (13.12') |
| Color Cable Jacket | Yellow |
| Connector End A | Micro-Change (M12) |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 182.108/g |
| Orientation | 90° to Pigtail |
| Poles | 4 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | E152210 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
1200651555 Sensors & Transducers by Molex
SENSOR CORD 4P M12 RCPT-FREE END 4M
| Status: | Unknown |
|---|---|
| Series: | Micro-Change Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Right Angle 4 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 4m |
| Cable Length - Imperial | 13.1ft |
| Product Range | Micro-Change Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mic 4P Fp 4M 90D #22Awg Pvc |Molex 1200651555 | Newark Electronics |
| SENSOR CORD, 4P, M12 RCPT-FREE END, 4M | element14 |
| Sensor Cables / Actuator Cables 4POS FEMALE 4M R/A 22AWG | Sager |
| MIC 4P FP 4M 90D #22AWG PVC | Heilind Americas |
