1200652252 Micro-Change (M12) by Molex

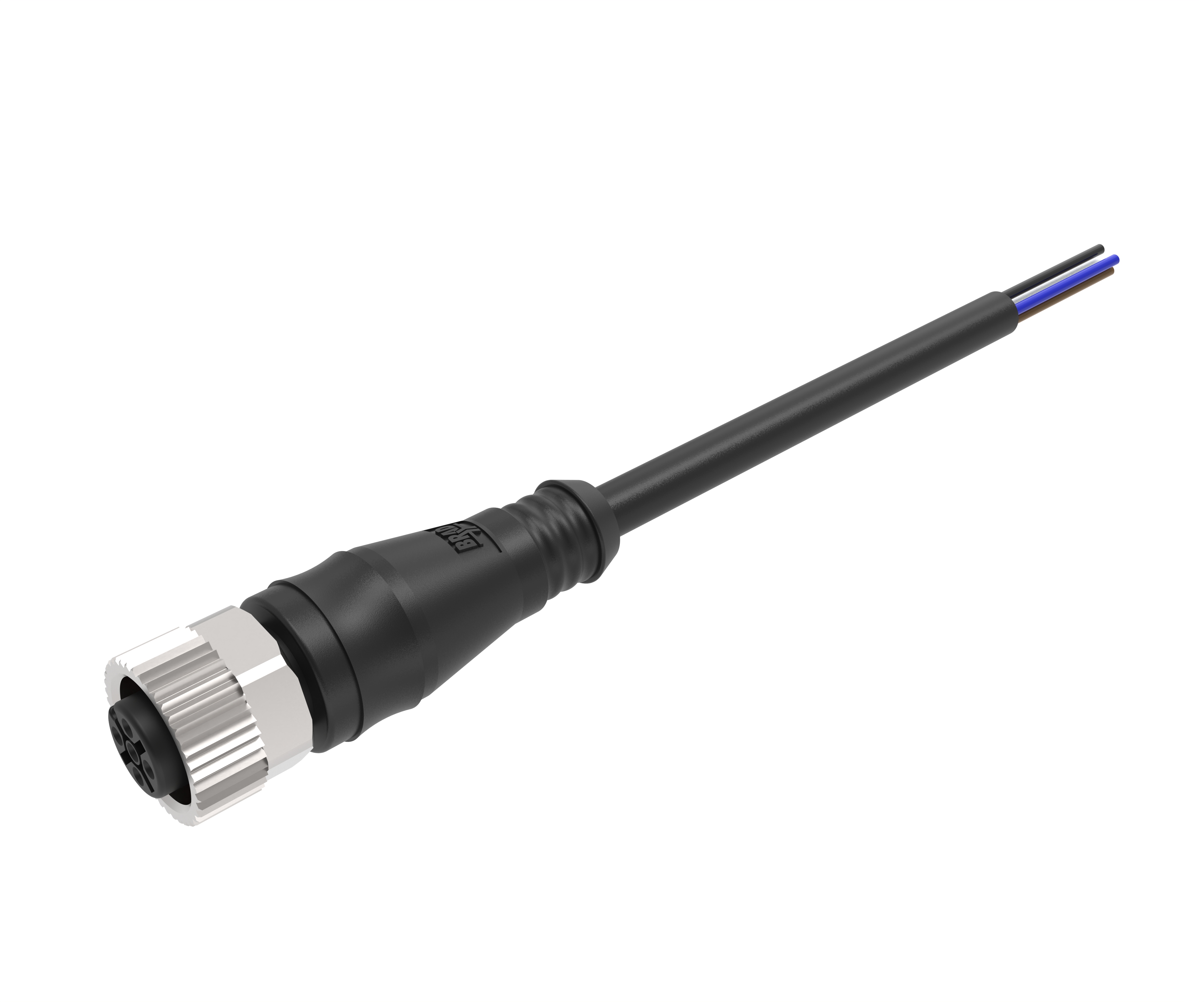

Micro-Change (M12) Single-Ended Cordset with Knurled Hexnut, 4 Poles, A-Coded, Female (Straight) to Pigtail, 22 AWG, Black TPU WSOR Cable, 2.0m (6.56') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120065-2252,
804000B30M020 |
Where to Buy
Prices starting from US$7.97
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$30.44
|
144
in stock
|
Buy Now |
|
Rapid Electronics
from US$11.58
|
28
in stock
|
Buy Now |
|
Conrad
from US$9.00
|
28
in stock
|
Buy Now |
|
TME
from US$7.97
|
27
in stock
|
Buy Now |
|
Newark Electronics
from US$26.52
|
9
in stock
|
Buy Now |
|
element14
from US$11.72
|
9
in stock
|
Buy Now |
|
RS
from US$222.07
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$15.18
|
0
in stock
|
Buy Now |
|
Sager
from US$21.80
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$21.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 60V |
Physical |
|
|---|---|
| Cable Diameter | 5.10mm (.201") |
| Cable Length | 2.0m (6.56') |
| Color Cable Jacket | Black |
| Connector End A | Micro-Change (M12) |
| Connector End B | Pigtail |
| Coupling Style | Knurled Hexnut, Threaded |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | TPU |
| Material Connector Body | TPU |
| Material Contact | Brass |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 86.800/g |
| Orientation | Straight to Pigtail |
| Poles | 4 |
| Temperature Range Operating | -25° to +85°C |
| Wire Cable Type | UL 21215 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
120065-2252 BRAD Parts by Molex
SENSOR CORD 4P M12 RCPT-FREE END 2M
| Status: | Unknown |
|---|---|
| Series: | 120065 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 4 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 2m |
| Cable Length - Imperial | 6.6ft |
| Product Range | 120065 Series |
| SVHC | No SVHC (27-Jun-2018) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLES MICROCHG SE CRDST 4P AC FE | Farnell |
| Molex 1200652252 Micro-change Connector 4-pin Female Straight 2m | Rapid Electronics |
| Molex 1200652252 Sensor-/Aktor-Steckverbinder, konfektioniert Buchse 2.00 m Polzahl Sensoren: 4 1 St. | Conrad |
| Connector: M12 | TME |
| Sensor Cord, 4P M12 Rcpt-Free End, 2M | Newark Electronics |
| SENSOR CORD, 4P M12 RCPT-FREE END, 2M | element14 |
| Molex 1200652252 Sensor Actuator Cable | RS |
| CSE M12 4P AC FE STR WSOR | TTI Europe |
| Sensor Cables / Actuator Cables MicroChg SE Crdst 4P AC FE STR 2M UNSH BK | Sager |
| 804000B30M020 | Heilind Americas |
