1200652378 Brad Safety,Micro-Change (M12) by Molex

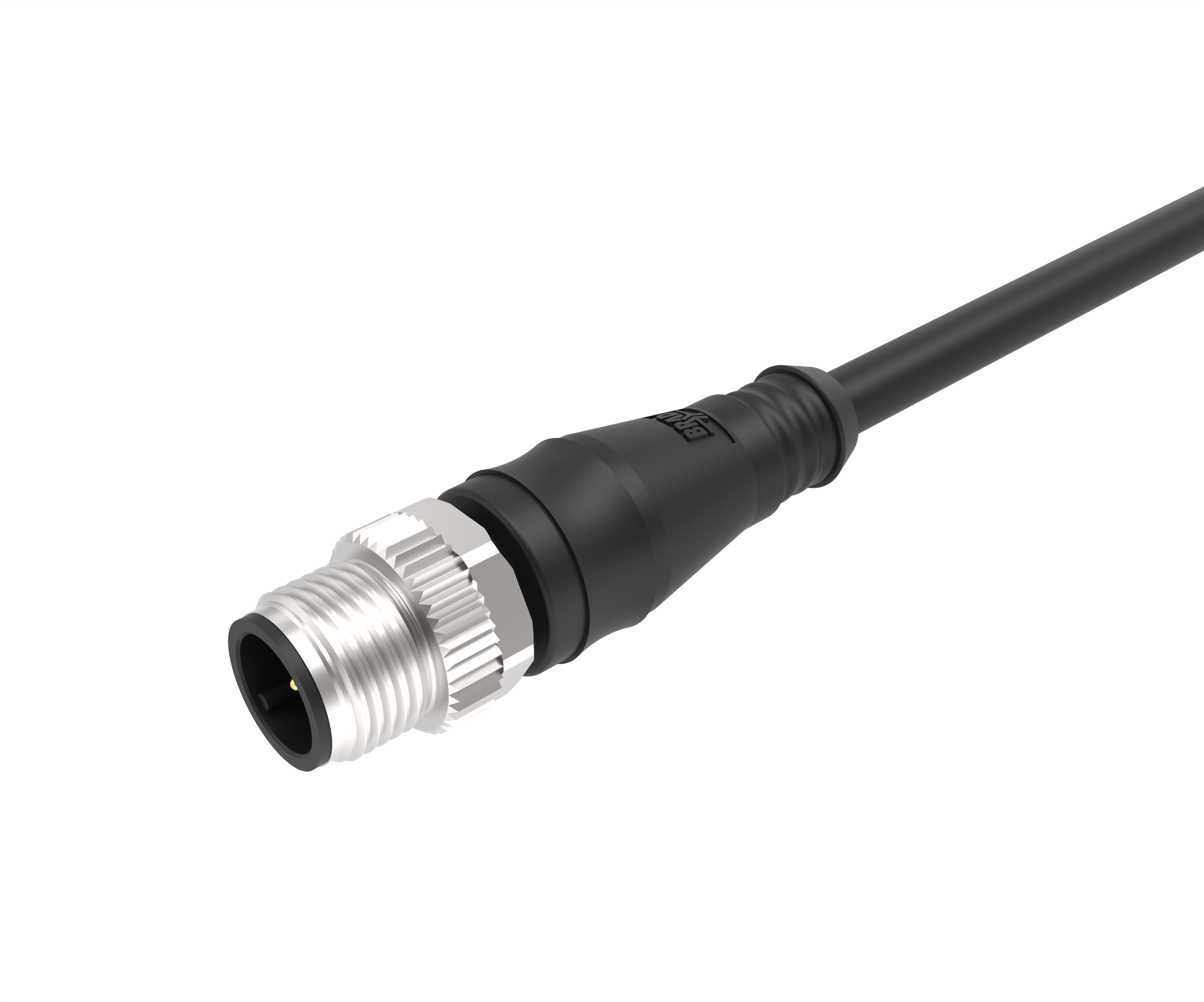

Brad Safety Micro-Change (M12) Single-Ended Cordset, 4 Poles, A-Coded, Male (Straight) to Pigtail, 0.34mm² WSOR Cable, 1.0m (3.28') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120065-2378,
804006B30M010R |
Where to Buy
Prices starting from US$3.93
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$10.76
|
26
in stock
|
Buy Now |
|
Heilind Americas
from US$25.40
|
3
in stock
|
Buy Now |
|
Newark Electronics
from US$3.93
|
2
in stock
|
Buy Now |
|
element14
from US$25.18
|
0
in stock
|
Buy Now |
|
Conrad
from US$6.47
|
0
in stock
|
Buy Now |
|
Sager
from US$19.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.85
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Brad Safety,Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 5.10mm (.201") |
| Cable Length | 1.0m (3.28') |
| Color Cable Jacket | Black |
| Connector End A | Micro-Change (M12) |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Male-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | TPU |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Gold |
| Net Weight | 49.813/g |
| Orientation | Straight to Pigtail |
| Poles | 4 |
| Temperature Range Operating | -40° to +90°C |
| Wire Cable Type | WSOR |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
120065-2378 Sensors & Transducers by Molex
SENSOR CORD 4P M12 PLUG-FREE END 1M
| Status: | Unknown |
|---|---|
| Series: | 120065 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 4 Position Plug |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 1m |
| Cable Length - Imperial | 3.3ft |
| Product Range | 120065 Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SENSOR CABLE ASSEMBLIES | Farnell |
| CSE M12 4P AC MA STR PUR 1M SE UNSH BK | Heilind Americas |
| Sensor Cord, 4P, M12 Plug-Free End, 1M | Newark Electronics |
| Molex 1200652378 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables WOODHEAD (804006B30M010R) | Sager |
