1200720302 M12 Signal,Micro-Change (M12) by Molex

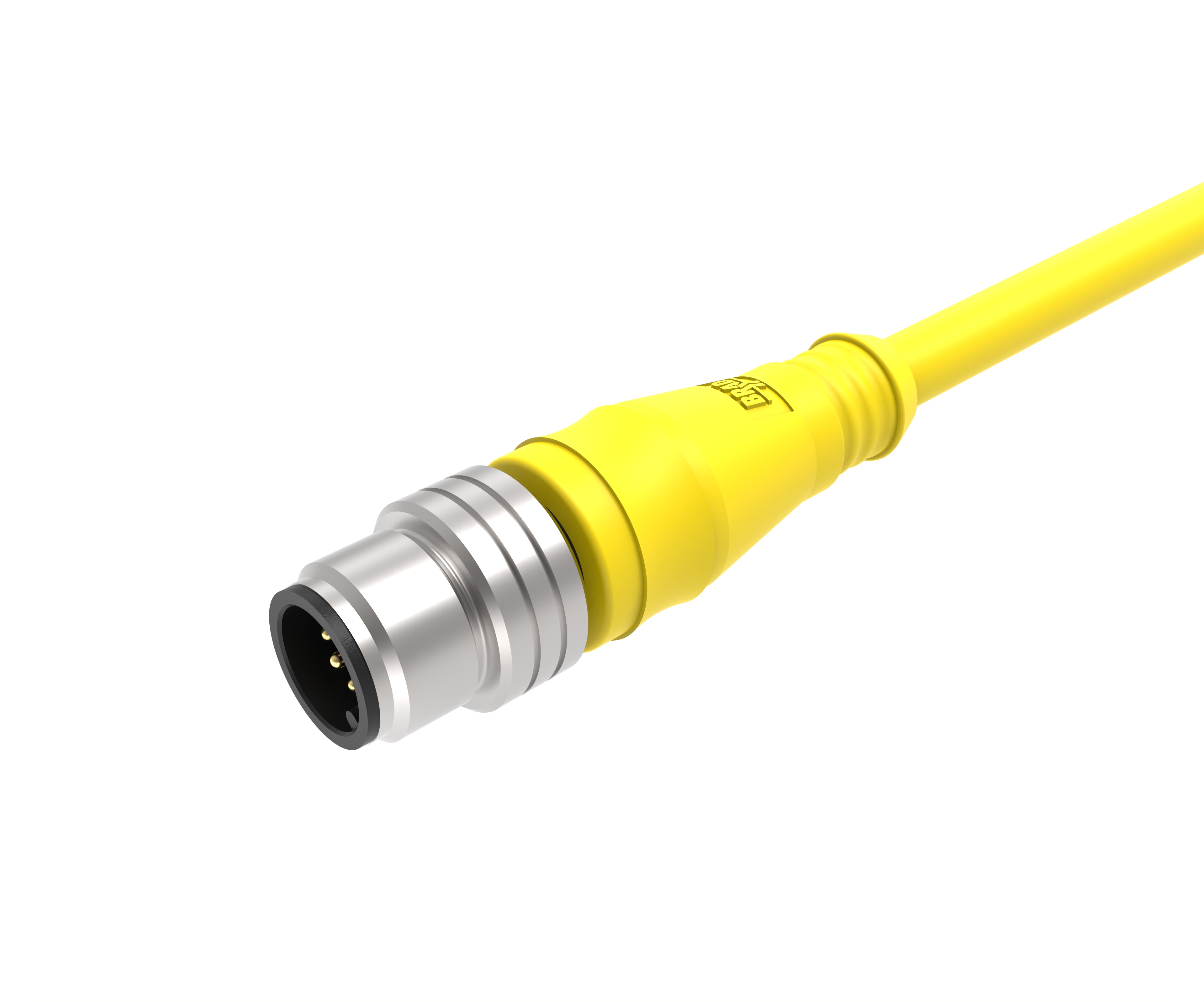

M12 Signal, C-Coded, Single-Ended Cordset, 3 Poles, Male (Straight) to Pigtail, 22 AWG, Yellow Shielded PVC Cable, Yellow Overmold, 1.83m (6.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120072-0302,
703006D02F060 |
Where to Buy
Prices starting from US$9.11
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$36.82
|
0
in stock
|
Buy Now |
|
Avnet America
from US$27.34
|
0
in stock
|
Buy Now |
|
RS Americas
from US$41.88
|
0
in stock
|
Buy Now |
|
Sager
from US$28.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$27.71
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$9.11
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | M12 Signal,Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 5.72mm (.225") |
| Cable Length | 1.83m (6.0') |
| Color Cable Jacket | Yellow |
| Connector End A | M12 Signal |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Male-Pigtail |
| Key Way | C-Coded |
| Led Indicator | No |
| Material Cable Jacket | PVC |
| Material Connector Body | TPC |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 298.000/g |
| Orientation | Straight to Pigtail |
| Poles | 3 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | UL 2661 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro Change Cord, 1/2-20, Male 3 Position Straight | Newark Electronics |
| MIC 3P M/MP 6 22/3 | RS Americas |
| Sensor Cables / Actuator Cables MICRO-CHANGE SNGLE END CORDSET | Sager |
| MIC 3P M/MP 6' 22/3 OLD P/N 703006D02F060 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1200720302?
Additional datasheets, footprints and schematics for 1200720302 are listed on our Part Details page. You can also find images and similar parts to 1200720302 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1200720302 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1200720302 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1200720302 fall under?
The 1200720302 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1200720302 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1200720302 you can contact the distributor directly for product support, shipping queries etc.
Is the 1200720302 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1200720302 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, Sager and Heilind Americas have stock available or on a lead time for 1200720302.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1200720302 often in real-time on the comparison pages.
What if I can't find stock of 1200720302?
You can fill out our help required form which you can use to request a quote for 1200720302 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
