1200720477 M12 Signal,Micro-Change (M12) by Molex

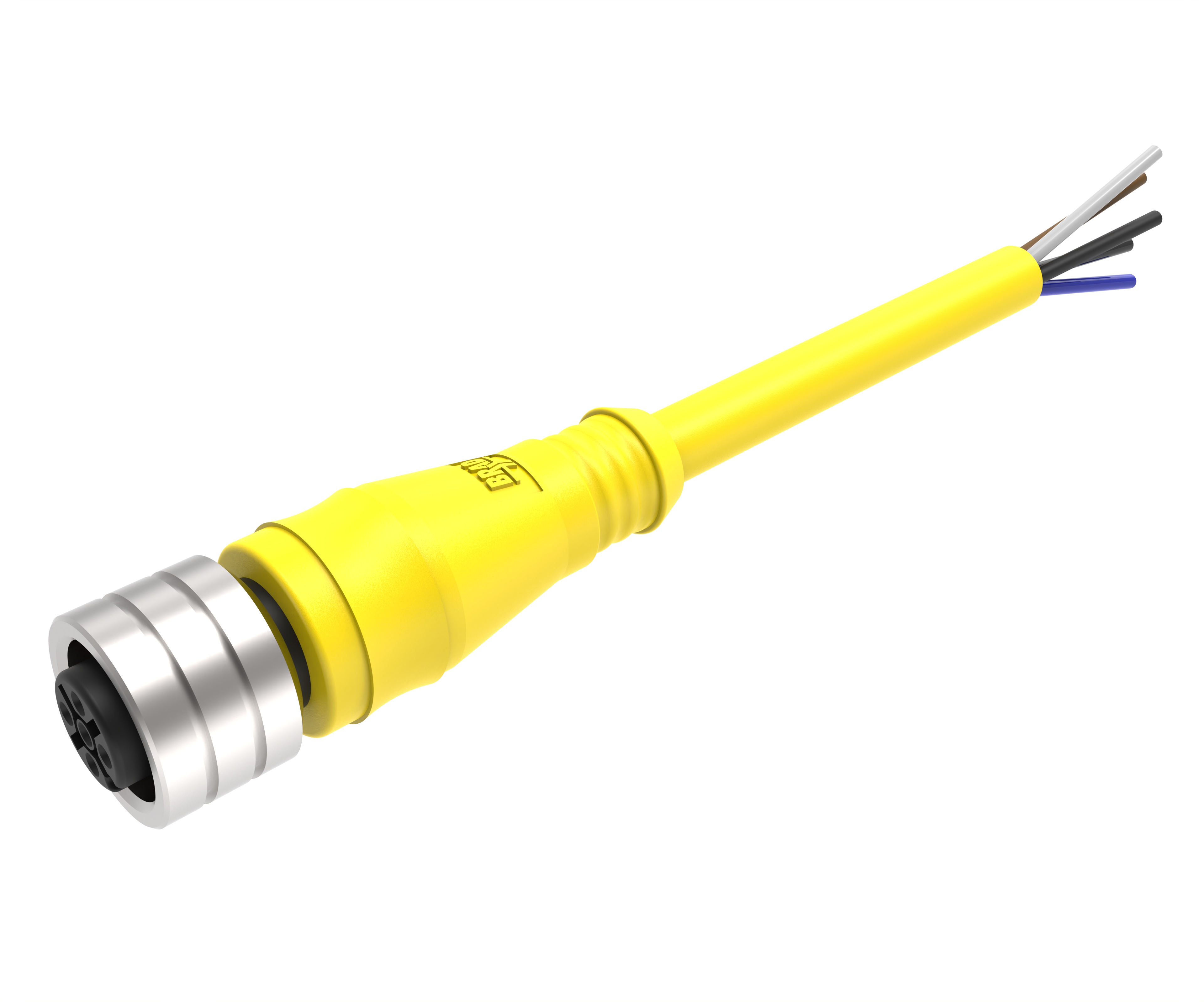

M12 Signal, C-Coded, Single-Ended Cordset, 5 Poles, Female (Straight) to Pigtail, 22 AWG, Yellow Shielded PVC Cable, Yellow Overmold, 6.10m (20.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
120072-0477,
705000D02F200 |
Where to Buy
Prices starting from US$48.14
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$158.29
|
9
in stock
|
Buy Now |
|
TTI Americas
from US$116.24
|
2
in stock
|
Buy Now |
|
Newark Electronics
from US$103.84
|
0
in stock
|
Buy Now |
|
Avnet America
from US$83.43
|
0
in stock
|
Buy Now |
|
RS Americas
from US$127.79
|
0
in stock
|
Buy Now |
|
Sager
from US$85.91
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$84.55
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$48.14
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | M12 Signal,Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 6.10mm (.240") |
| Cable Length | 6.10m (20.0') |
| Color Cable Jacket | Yellow |
| Connector End A | M12 Signal |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | C-Coded |
| Led Indicator | No |
| Material Cable Jacket | PVC |
| Material Connector Body | PVC |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Oring | Nitrile Rubber |
| Material Plating Mating | Gold |
| Net Weight | 0.375/kg |
| Orientation | Straight to Pigtail |
| Poles | 5 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | UL 2661 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SENSOR | Farnell |
| MIC 5P FP 20FT. #22AWG BRD PVC | TTI Americas |
| Sensor Cable Assembly | Newark Electronics |
| Micro-Change Single-Ended Cordset 5 Poles Female Straight to Pigtail 22 AWG Yellow PVC Cable 6.1m L | Avnet America |
| MIC 5P FP 20FT. 22AWG BRD PVC | RS Americas |
| Sensor Cables / Actuator Cables MIC 5P FP 20FT. #22AWG BRD PVC | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1200720477?
Additional datasheets, footprints and schematics for 1200720477 are listed on our Part Details page. You can also find images and similar parts to 1200720477 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1200720477 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1200720477 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1200720477 fall under?
The 1200720477 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1200720477 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1200720477 you can contact the distributor directly for product support, shipping queries etc.
Is the 1200720477 RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 1200720477 have stock available?
Authorised distributors including Farnell, TTI Americas, Newark Electronics, Avnet America and RS Americas have stock available or on a lead time for 1200720477.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1200720477 often in real-time on the comparison pages.
What if I can't find stock of 1200720477?
You can fill out our help required form which you can use to request a quote for 1200720477 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
