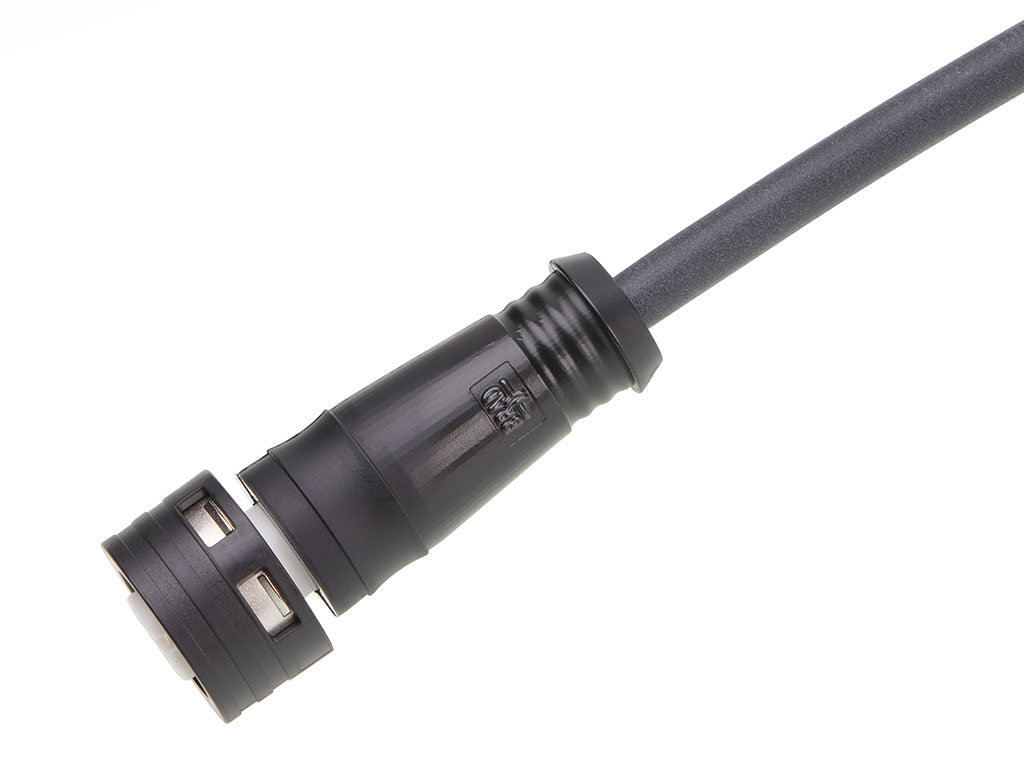

1200790109 M12 Signal Push-Pull,Ultra-Lock (M12) by Molex
M12 Signal, A-Coded, M12 Push-Pull Ultra-Lock Single-Ended Cordset, 5 Poles, Female (Straight) to Pigtail, 22 AWG, Yellow PVC Cable, 2.0m (6.56') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120079-0109,
W05000A09M020 |
Where to Buy
Prices starting from US$16.58
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$32.80
|
27
in stock
|
Buy Now |
|
RS Americas
from US$16.58
|
6
in stock
|
Buy Now |
|
Newark Electronics
from US$46.92
|
0
in stock
|
Buy Now |
|
Avnet America
from US$25.85
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$36.69
|
0
in stock
|
Buy Now |
|
Sager
from US$27.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$26.88
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$39.13
|
0
in stock
|
Buy Now |
|
Farnell
from US$45.20
|
0
in stock
|
Buy Now |
|
EME
from US$47.98
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | M12 Signal Push-Pull,Ultra-Lock (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 5.45mm (.215") |
| Cable Length | 2.0m (6.56') |
| Color Cable Jacket | Yellow |
| Connector End A | M12 Signal Push-Pull |
| Connector End B | Pigtail |
| Coupling Style | Push-Pull |
| Gender | Female-Pigtail |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 12.870/g |
| Orientation | Straight to Pigtail |
| Poles | 5 |
| Temperature Range Operating | -25° to +90°C |
| Wire Cable Type | UL 2661 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
120079-0109 Sensors & Transducers by Molex
SENSOR CORD 5P M12 RCPT-FREE END 2M
| Status: | Unknown |
|---|---|
| Series: | Ultra-Lock 120079 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 5 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 2m |
| Cable Length - Imperial | 6.56ft |
| Product Range | Ultra-Lock 120079 Series |
| SVHC | No SVHC (17-Dec-2015) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| ULTRA-LOCK M12 SNGLEND CORDSET | TTI Americas |
| Sensor Cord, 5P, M12 Rcpt-Free End, 2M | Newark Electronics |
| ULTRA-LOCK 5 POLES,22AWG, | TTI Europe |
| Sensor Cables / Actuator Cables ULTRA-LOCK M12 SNGLEND CORDSET | Sager |
| MIC 5P FP ULOCK 2M 22/5 PVC BRAD | Heilind Americas |
| SENSOR CORD, 5P, M12 RCPT-FREE END, 2M | Farnell |
