1200870074 Nano-Change (M8) by Molex

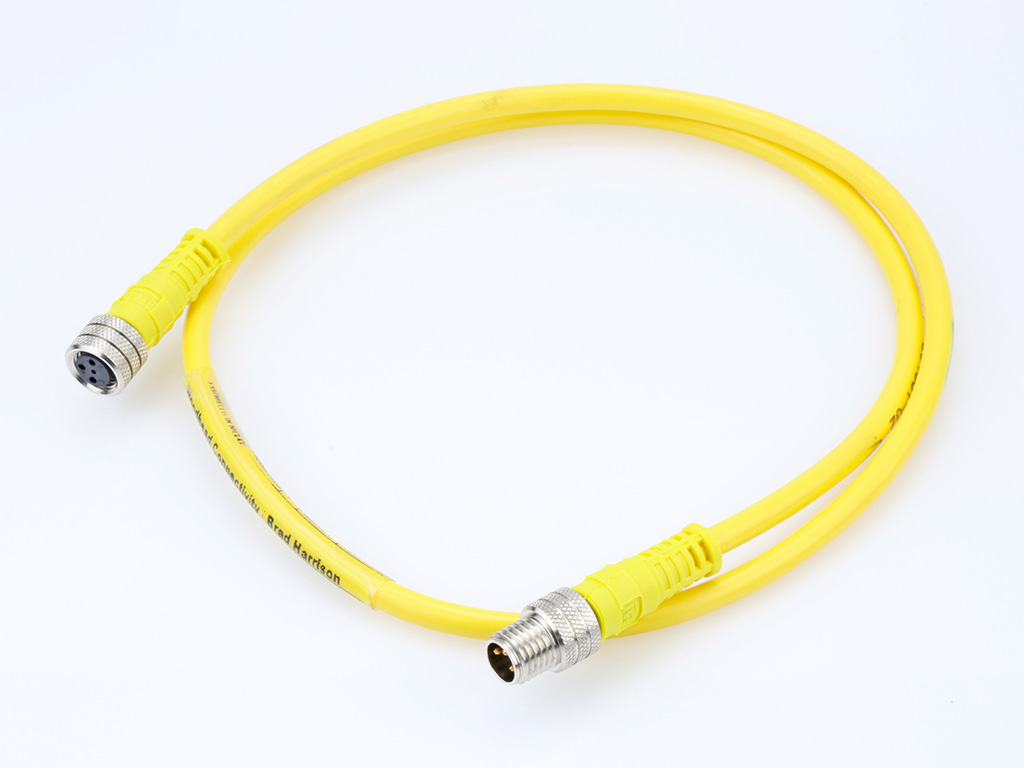

Nano-Change (M8) Double-Ended Cordset, 3 Poles, A-Coded, Male (Straight) to Female (Straight), 24 AWG, Yellow PVC Cable, 1.0m (3.28') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120087-0074,
443030A10M010 |
Where to Buy
Prices starting from US$31.84
Specifications
| Product Name | Nano-Change (M8) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 60V AC / 75V DC |
Physical |
|
|---|---|
| Cable Diameter | 4.32mm (.170") |
| Cable Length | 1.0m (3.28') |
| Color Cable Jacket | Yellow |
| Connector End A | Nano-Change (M8) |
| Connector End B | Nano-Change (M8) |
| Coupling Style | Threaded |
| Gender | Female-Male |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 124.000/g |
| Orientation | Straight to Straight |
| Poles | 3 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | UL 2661 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
1200870074 Sensors & Transducers by Molex
SENSOR CORD 3P M8 PLUG-RCPT 1M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M8 Sensor Straight 3 Position Plug |
|---|---|
| Connector Type B | M8 Sensor Straight 3 Position Receptacle |
| Cable Length - Metric | 1m |
| Cable Length - Imperial | 3.3ft |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Nc 3P M/Mfe 1M St/St 24Awg Pvc Rohs Compliant: Yes |Molex/brad 1200870074 | Newark Electronics |
| SENSOR CORD, 3P, M8 PLUG-RCPT, 1M | element14 |
| Sensor Cables / Actuator Cables NC 3P M/MFE 1M ST/ST 24AWG PVC | Sager |
| NC 3P M/MFE 1M ST/ST 24AWG PVC | Heilind Americas |
