1200900020 Nano-Change (M8) by Molex

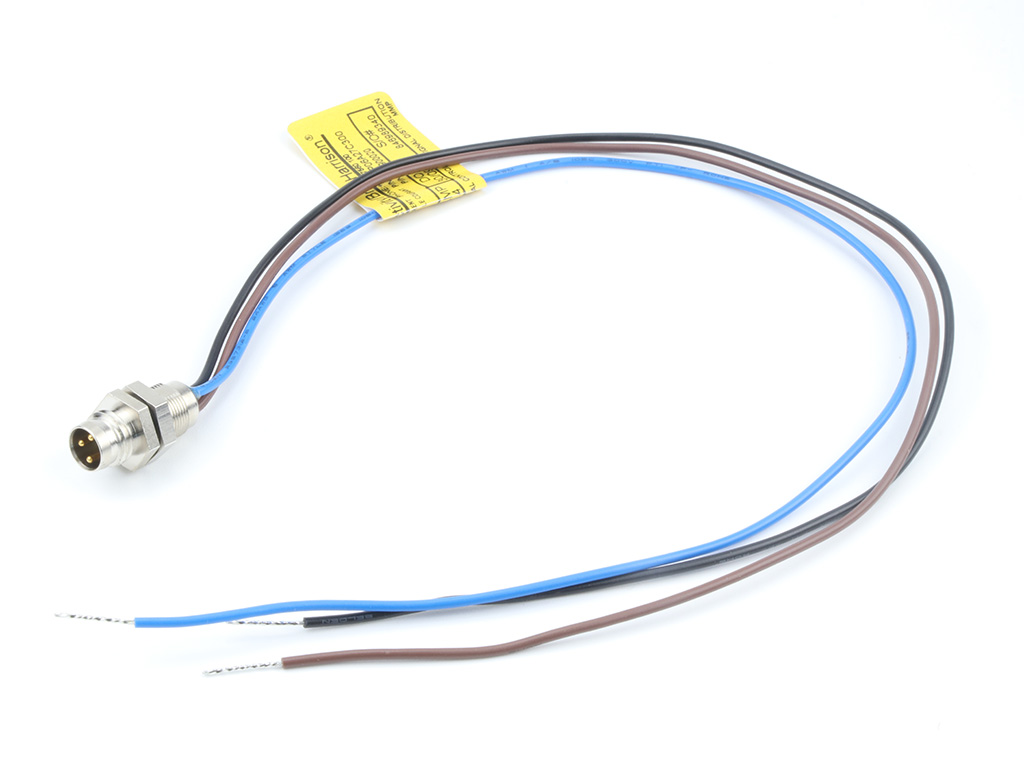

Nano-Change (M8) Receptacle, 3 Poles, A-Coded, M8 x 0.5 Mounting Threads, Male (Straight) to 24 AWG Leads, 0.30m (11.81") Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120090-0020,
4R3P06A27C300 |
Where to Buy
Prices starting from US$8.45
Specifications
| Product Name | Nano-Change (M8) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 60V AC / 75V DC |
Physical |
|
|---|---|
| Coupling Type | External Thread |
| Gender | Male |
| Key Way | A-Coded |
| Length | 0.30m |
| Material Component | Nickel-plated Brass |
| Mounting Thread Size | M8 x 0.5 |
| Net Weight | 11.927/g |
| Orientation | Straight |
| Panel Mount | Front |
| Poles | 3 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | UL 1569 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
1200900020 Sensors & Transducers by Molex
NANO-CHANGE CORD M8 PIN CONTACTS 3 POSITION RECEPTACLE
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M8 Sensor Straight 3 Position Plug |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 300mm |
| Cable Length - Imperial | 11.81" |
| Product Range | - |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Circular Metric Connectors NANO-CHANGE M8 REC MA-22 .3M | Sager |
| Sensor Cord, 3P M8 Plug-Free End, 300Mm Rohs Compliant: Yes |Molex 120090-0020 | Newark Electronics |
| SENSOR CORD, 3P M8 PLUG-FREE END, 300MM | element14 |
| 4R3P06A27C300 WOODHEAD NC 3P MR 300MM M8X0.5 | Heilind Americas |
